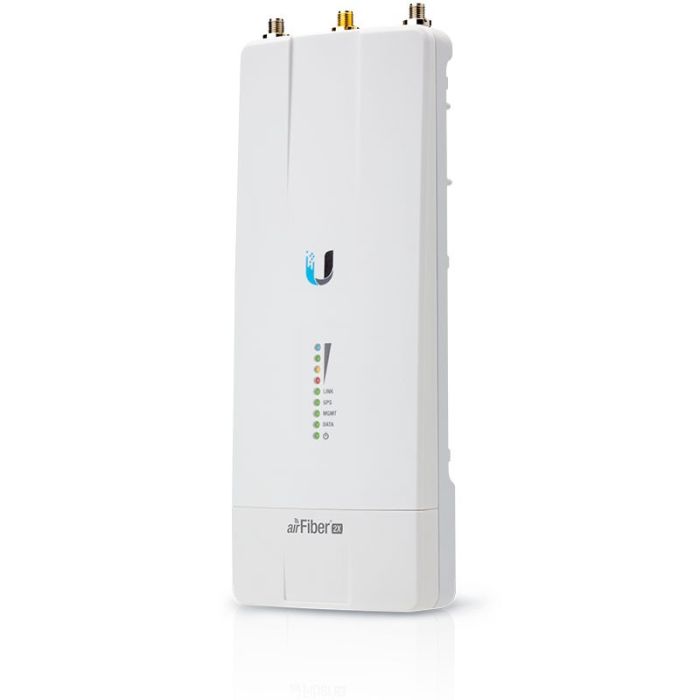

Ubiquiti AirFiber X 2 GHz (AF-2X)

AirFiber2X from Ubiquiti Networks is a product used to implement point-point radio link, providing high performance. It works in 2,4GHz band. This device is based on technology which is used in valued AirFiber 24. It is sold whitout antennas, which can be adjusted according to needs.

Main features:

• Real throughput up to 500 Mbps in HDD mode
• Maximum distance 200 km (throughput and values range can vary depending on the environmental conditions.)
• Plug-and-play installation
• LED display
• Gigabit Ethernet RJ45
• Management over dedicated Ethernet port
• AirSync technology support (built-in GPS receiver)
• 128-Bit AES encryption

Technical specification
Quick start guide
User guide

Models comparison :

Modell	UBNT-AIRFIBER2X	UBNT-AIRFIBER5	UBNT-AIRFIBER5U	UBNT-AIRFIBER	UBNT-AIRFIBER-24HD
Frequenz	2,4 GHz	5 GHz	5 GHz	24 GHz	24 GHz
Durchsatz	500+ Mbps	1,2+ Gbps	1,2+ Gbps	1.4+ Gbps	2 Gbps
Bereich	200+ km	100+ km	100+ km	13+ km	20+ km

Abmessungen	224 x 82 x 48 mm
Gewicht mit Ausrüstung	0.35 kg
Maximum power consumption	17W
Schnittstellen	2x RP-SMA Weatherproof (CH0, CH1) 1x SMA Weatherproof (GPS) Data 10/100/1000 Ethernet Port Management Port 10/100 Ethernet Port
Stromversorgung	24V power adapter, 1A Gigabit PoE Adapter (included)
Montage	airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (included)
Zertifizierungen	DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1
Betriebstemperatur	-40 to 55°C
Prozessor	INVICTUS IC
Maximum throughput	525 Mbps
Maximum range	Up to 200 km
Wireless modes	Master/Slave
Betriebsfrequenz	2400-2500 MHz (Dependent on Regulatory Region)
Channel bandwidth	3,5/5/7/10/14/20/28/30/40/50/56 MHz
Max. Leitungsgebundene TX-Leistung	Up to 30dBm (Dependent on Regulatory Region)
Frequenz-Genauigkeit	± 2,5 ppm without GPS synchronization ± 0,2 ppm with GPS synchronization
