Mikrotik mANTBox ax 15s (L22UGS-5HaxD2HaxD-15S)
Hersteller-SKU | L22UGS-5HaxD2HaxD-15S |
---|---|
EAN | 4752224009142 |
Kabellänge | 1m |
Hersteller | Mikrotik |
Stück in Sammelverpackung | 10 |
Product codeMikroTik mANTBox ax 15s (L22UGS-5HaxD2HaxD-15S) WiFi 6 Access Point

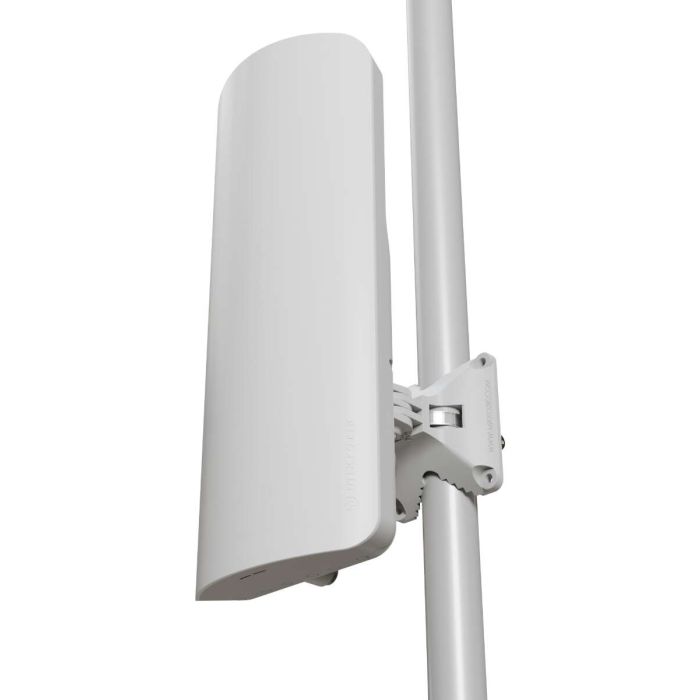

MikroTik mANTBox ax 15s is an integrated base station operating in the 802.11ax standard. In one weather-resistant housing, the manufacturer houses a dual-band WiFi 6 access point and a dual-polarization 2x2 MIMO sector antenna with a gain of 15dBi.
Upgrading the radio module to WiFi 6 results in up to 40% faster connection in the 5GHz band and as much as 90% greater bandwidth in the 2.4GHz band. Support for fast roaming, greater energy savings and the introduction of the WPA3 security standard, which eliminates many of the problems of its predecessor.
The device is equipped with one Gigabit Ethernet port with PoE-in function (PoE adapter included), an SFP slot supporting SFP inserts with a speed of 1.25 Gb/s and 2.5 Gb/s and a USB port enabling the connection of external mass storage.
The heart of mANTBox ax 15s is a dual-core ARM processor clocked at 800MHz. The system has a built-in cryptographic accelerator enabling the use of efficient IPSec connections.
Main features:
- dual-band access point compatible with WiFi 6 (802.11ax)
- durable housing resistant to weather conditions
- integrated 2x2 MIMO sector antenna
- Ethernet 10/100/1000 Mb/s and SFP 2.5 Gb/s interface
Technical specification:
Product code | L22UGS-5HaxD2HaxD-15S |
CPU | Dual-Core IPQ-5010 800 MHz |
CPU architecture | ARM |
Size of RAM | 256 MB |
Storage | 128 MB, NAND |
Number of 1G Ethernet ports | 1 |
Number of 1G SFP ports | 1 (2.5G supported) |
USB port | 1 USB 2.0 port type A |
Wireless interface model | IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz) |
Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
Antenna gain | 2.4 GHz - 12 dBi, 5 GHz - 15 dB |
Dimensions | 349 x 140 x 82 mm |
Operating system | RouterOS v7, License level 4 |
Operating temperature | 40°C to +70°C |
Watch a video about this product on the official Mikrotik's YouTube channel:
Hersteller-SKU | L22UGS-5HaxD2HaxD-15S |
---|---|
EAN | 4752224009142 |
Kabellänge | 1m |
Hersteller | Mikrotik |
Stück in Sammelverpackung | 10 |
