Gold WiFi :: Gold-Mini 5GHz, 19dBi, RB711-5Hn MMCX
50,48 € 41,04 €
Nicht lieferbar
SKU
ZEST-ANTBOX-711-MMCX
| Hersteller | Inter Projekt S.A. |
|---|

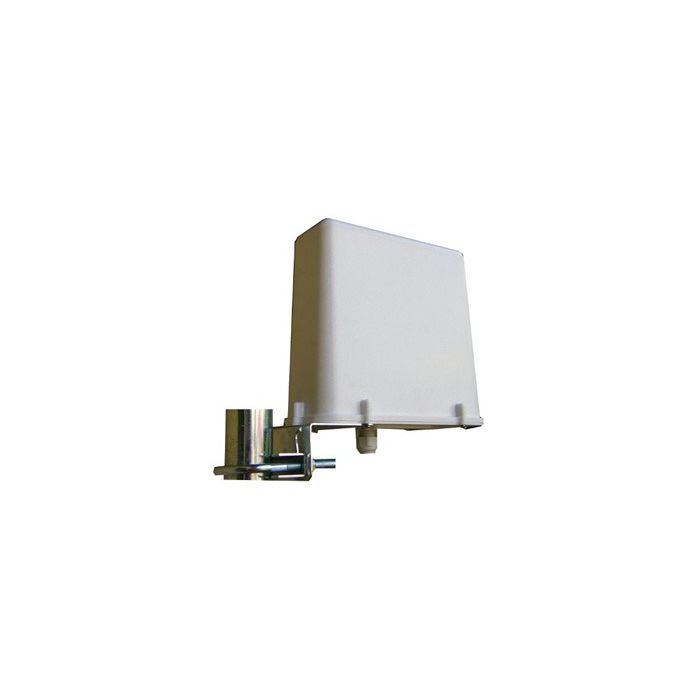

Gold WiFi :: Gold-Mini (rev.2) client includes: 5GHz, 19dBi panel antena with integrated enclosure, MikroTik RouterBoard RB711-5Hn MMCX with built in radio module 5GHz AR9280 802.11a/n, 24V 1A power supply and passive PoE adapter. The Unit is for self mounting. Enclosed parts allows fast, intuitive and easy mount in few minutes.
 |
Client AntBox Station is a low cost CPE based on a MikroTik RouterBoard RB711. This
is a complete subscriber unit for Wireless Internet Service Providers. The device consists of a 5GHz, 19dBi panel antenna integrated with a high quality enclosure, powerful MikroTik RouterBoard RB711 with RouterOS system. The CPE is ready to install on a mast. The gland on the bottom protects the antenna from water and heavy weather conditions.
- ANT-BOX-56019 Integrated Panel Antenna 5GHz 19dBi
- RouterBoard RB711-5Hn CPU Atheros AR7240 400MHz / 32 RAM / 64MB NAND / POE
- Built in radio module 5GHz AR9280 802.11a/n with
connector
- 24V Power Supply with integrated
- Pigtail MMCX/SMA male ultra low loss for connecting the internal antenna
- Mounting brackets for masts with diameter of 35-60 mm.
- Other necessary mounting parts
The Unit is for self mounting. Enclosed parts allows fast, intuitive and easy mount in few minutes.
 |
 |
| Type | Panel antenna |
| Frequency | 5400 - 5900 MHz |
| Gain | 19 dBi |
| VSWR | < 1,4 |
| Impedance | 50 Ohm |
| Polarization | Vertical or horizontal |
| Vertical plane | 16° |
| Horizontal plane | 16° |
 |
Technical Specification |
|
| Input voltage | AC, 100-240V |
| Output voltage | DC 24V |
| Current range | 0~0.75A |
| Rated power | 18W |
| Connectors | 2xRJ-45 |
| Working temperature | 0-40 C |
| Working humidity | 0-80% |
 |
| Processor | Atheros AR7240 400 MHz |
| MiniPCI | 64 MB NAND and 32MB SDRAM |
| Ethernet | 1 x 10/100Mbps |
| MiniPCI ports | 1 |
| Power Supply | 10~28V DC |
| PoE | 10~28V |
| Operating system | RouterOS v4 level 4 |
| Serial port | DB9 RS232C |
| Power Consumption | Up to ~4.5W |
| Dimensions | 10.5 cm x 10.5 cm (4.13 in x 4.13 in) |
| Weight: | 67g |
| Wireless | Built in 5GHz AR9280 802.11a/n card, u.fl connector |
| RX sensitivity: | 802.11a –92 dBm @ 6Mbps to -76 dBm @ 54 Mbps 802.11n: –92 dBm @ MCS0 to –73 dBm @ MCS7 |
| TX power: | 802.11a: 23dBm @ 6Mbps to 19dBm @ 54 Mbps 802.11n: 22dBm @ MCS0 to 15dBm @ MCS7 |
| Modulations | OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
 |
 |
| Hersteller | Inter Projekt S.A. |
|---|---|
| GPSR kontakt | Inter Projekt S.A. Marszałkowska 68/72/26 00-545 Warszawa info@interprojekt.pl |
