UBIQUITI WaveFiber ONU (Wave-Fiber-ONU)

Name: UBIQUITI WaveFiber ONU (Wave-Fiber-ONU)
Brand: Ubiquiti
SKU: UBIQUITI-WAVE-FIBER-ONU
Price: 48.51 EUR
Availability: InStock

51,55 € 41,91 €

Auf Lager

SKU

UBIQUITI-WAVE-FIBER-ONU

A GPON optical network unit with a 2.5 GbE port that delivers speeds at distances up to 20 km.

Zubehör und Ergänzungen:

Ubiquiti UFiber UF-ADAPTER-APC-50

6,06 €

Einzelheiten

Mehr Informationen

Download-Dateien

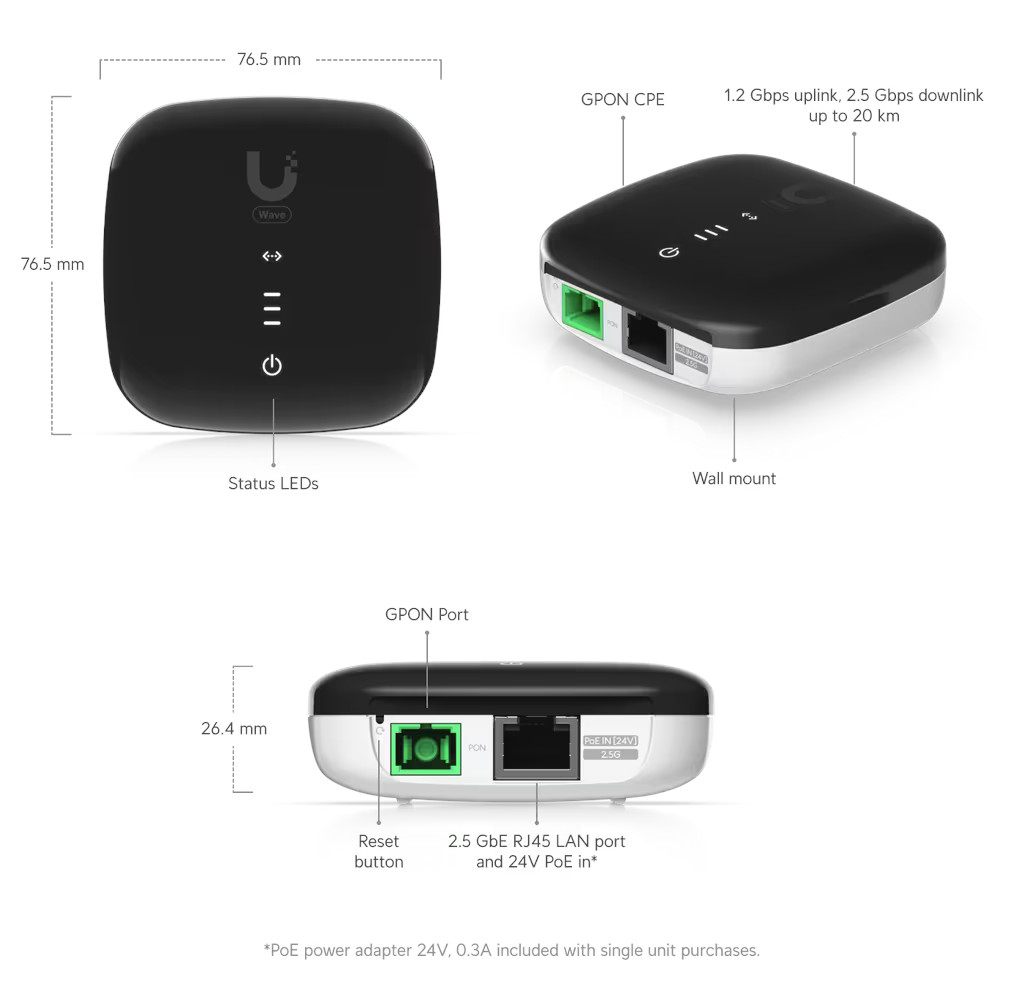

Ubiquiti WaveFiber ONU (Wave-Fiber-ONU)

Ubiquiti WaveFiber ONU is an optical network unit (ONU/ONT) for GPON networks compliant with ITU-G.984. The device is used to terminate a fiber optic connection at the subscriber location and provide Ethernet access for connecting a router, gateway, or switch. It is intended for FTTH/FTTB deployments where GPON service is delivered by the operator.

WaveFiber ONU features an SC/APC GPON WAN port and a 1/2.5 GbE RJ45 LAN port. Power is supplied via 24 V passive PoE (2-pair). The unit operates as a Layer 2/3 Ethernet ONU/ONT and supports management and diagnostics functions, including monitoring, alarms, and logs, via in-band network access.

Main features

GPON ONU/ONT terminal (ITU-G.984) for fiber access termination
GPON SC/APC WAN port and 1/2.5 GbE RJ45 LAN port
Power supply: 24 V passive PoE (2-pair), 20–28 V DC range
Nominal GPON throughput: 2.488 Gbps downstream / 1.244 Gbps upstream
Mounting options: desktop or wall
Factory reset button
LED indicators: PON signal (3 LEDs), Ethernet, power

Technical specifications

Model	Wave-Fiber-ONU

Mechanical

Dimensions	76.5 × 76.5 × 26.4 mm (3 × 3 × 1")
Weight	78 g (2.8 oz)
Enclosure material	Polycarbonate

Hardware

Network interfaces	(1) SC/APC, ITU-G.984 GPON WAN port (1) 1/2.5 GbE RJ45 LAN port
Management interface	Ethernet (in-band)

PON

Power method	PoE, 0.3 A
Power supply	24 V passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range	20–28 V DC
Maximum power consumption	5 W
Total non-blocking throughput (downstream)	2.488 Gbps
Total non-blocking throughput (upstream)	1.244 Gbps

Optical module operating range

TX	1.5 to 5 dBm
RX	-8 to -28 dBm

Mounting and controls

Mounting	Desktop, wall
Button	(1) Factory reset

Operating environment

Operating temperature	-15 to 45 °C (5 to 113 °F)
Operating humidity	10 to 90% non-condensing

Certifications

Certifications	FCC, IC, CE

LED indicators

PON status	(3) signal LEDs
PON – all OFF	bootup
PON – 1× red	signal too low (< -28 dB)
PON – 1× white	signal low (≥ -28 dB)
PON – 2× white	signal good (≥ -25 dB)
PON – 3× white	signal strong (≥ -11 dB)
PON – 1× red + 2× white	signal too strong (≥ -8 dB)
PON – 3× red	no signal
PON – alternating red and signal level indicator	no authority
Ethernet – white (solid)	link up
Ethernet – white (blinking)	activity
Ethernet – OFF	link down
Power – white	ON

Software

Mode	ONU/ONT Layer 2/3 Ethernet switch
Services	Web server, telnet, NAT, bridging and routing, firewall features, application passthrough
Tools	Dashboard, monitoring, alarms, and logs
Security	GEM Port Encryption
Other	Remote reset, remote reboot, remote firmware upgrade, VLAN support

Fiber

Operating wavelength (TX)	1310 nm
Operating wavelength (RX)	1490 nm
Line code	Scrambled NRZ
Nominal optical interface rate (downstream)	2488.32 Mbit/s
Nominal optical interface rate (upstream)	1244.16 Mbit/s
Physical reach	20 km

Mehr Informationen
Hersteller-SKU	Wave-Fiber-ONU
Hersteller	Ubiquiti
GPSR kontakt	Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com
