Ubiquiti U7 Pro - U7-Pro-5
852,67 € 693,23 €
Auf Lager
SKU
UBIQUITI-U7-PRO-5
| Hersteller-SKU | U7-PRO-5 |
|---|---|
| Hersteller | Ubiquiti |
Ubiquiti U7-Pro-5 is a high-performance, tri-band WiFi 7 access point, 5-pack.

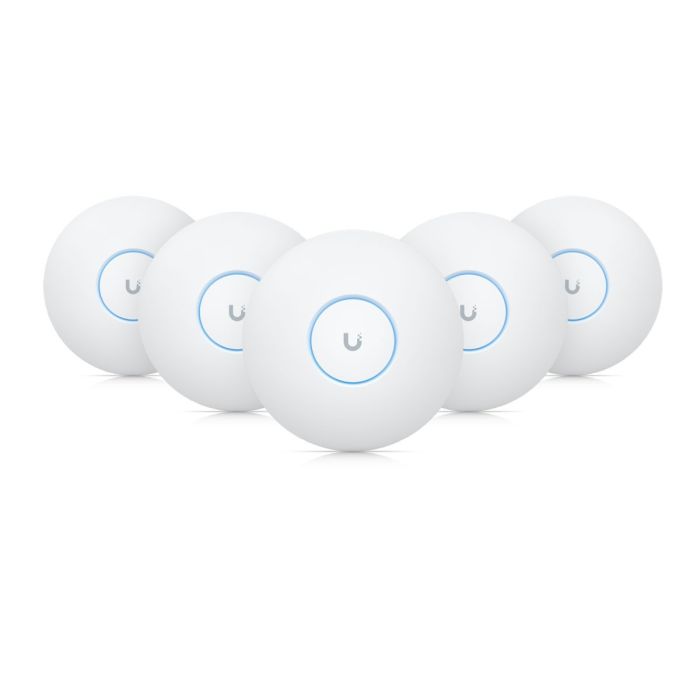

Ubiquiti U7-Pro-5 – WiFi 7 Access Point, 5-pack
Ubiquiti U7-Pro-5 is a 5-pack of modern WiFi 7 ceiling-mount access points. The devices operate across three bands (2.4 GHz, 5 GHz, and 6 GHz) with an aggregate radio capacity up to 9.3 Gb/s. The U7 Pro delivers stable connectivity for home and office environments, handling hundreds of clients with low latency. Each access point includes a 2.5 GbE port and PoE+ power.
Key Features
- Tri-band WiFi 7: 2.4 GHz, 5 GHz, and 6 GHz.
- Aggregate throughput up to 9.3 Gb/s.
- 2.5 GbE uplink port for high-speed backhaul.
- PoE+ (802.3at) power — simple installation without an external PSU.
- WPA3 security and VLAN segmentation.
- Integration with UniFi Network for centralized management and monitoring.
- Typical coverage up to ~140 m² per device.
Technical Specification
| Mechanical | |
|---|---|

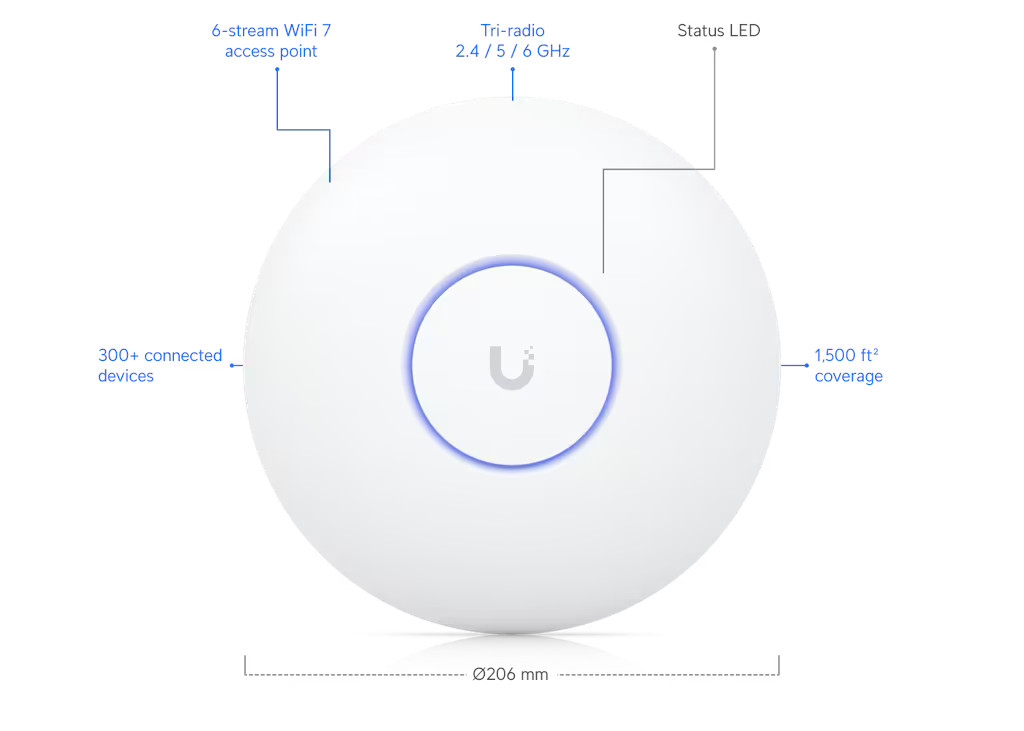

| Dimensions | Ø206 × 46 mm |
| Weight | 680 g |
| Enclosure materials | Polycarbonate, metal |
| Mount materials | Mounting bracket: stainless steel (SUS304) Backing plate: galvanized steel (SGCC) |
| Hardware | |

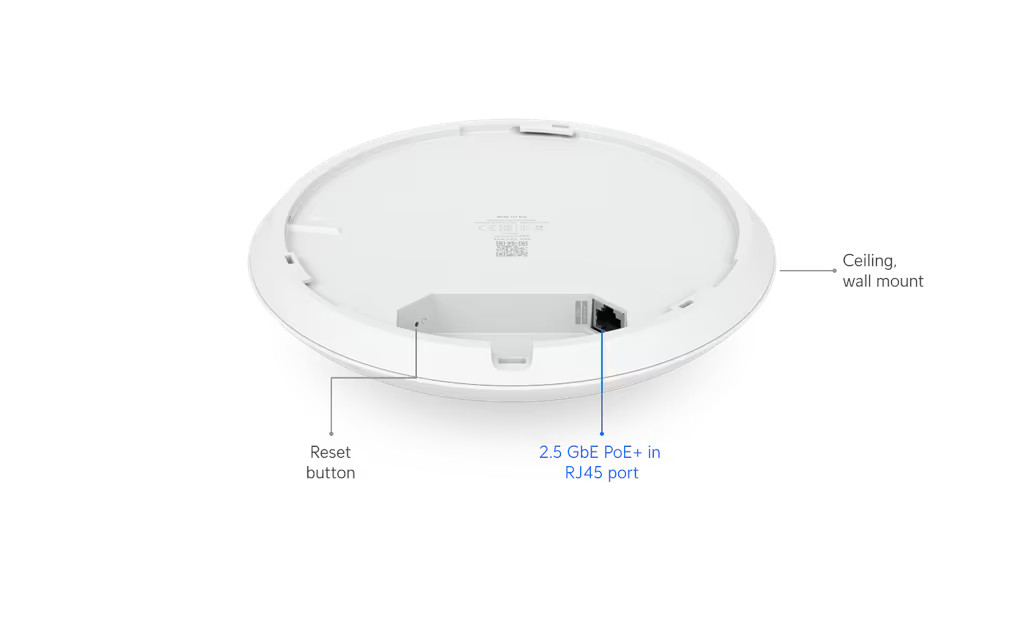

| Networking interface | 1 × 2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ (802.3at) |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44–57 V DC |
| Max. power consumption | 21 W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm 23 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 × 2 2 × 2 2 × 2 |
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps 2882 Mbps 5765 Mbps |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 6 dBi 5.8 dBi |
| LEDs | White / blue |
| Button | Factory reset |
| Mounting | Ceiling / wall (mount included) |
| Operating temperature | −30 to 60 °C |
| Operating humidity | 5–95% non-condensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be |
| Wireless security | WPA-PSK, WPA-Enterprise, WPA2, WPA3, PPSK |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0–MCS9, NSS 1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0–MCS11, NSS 1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0–MCS13, NSS 1/2, EHT 20/40/80/160/240/320) |
| Application Requirements | |
| UniFi Network | Version 8.0.7 and later |
| UniFi OS | Version 3.2 and later |
| Hersteller-SKU | U7-PRO-5 |
|---|---|
| Hersteller | Ubiquiti |
| GPSR kontakt | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
