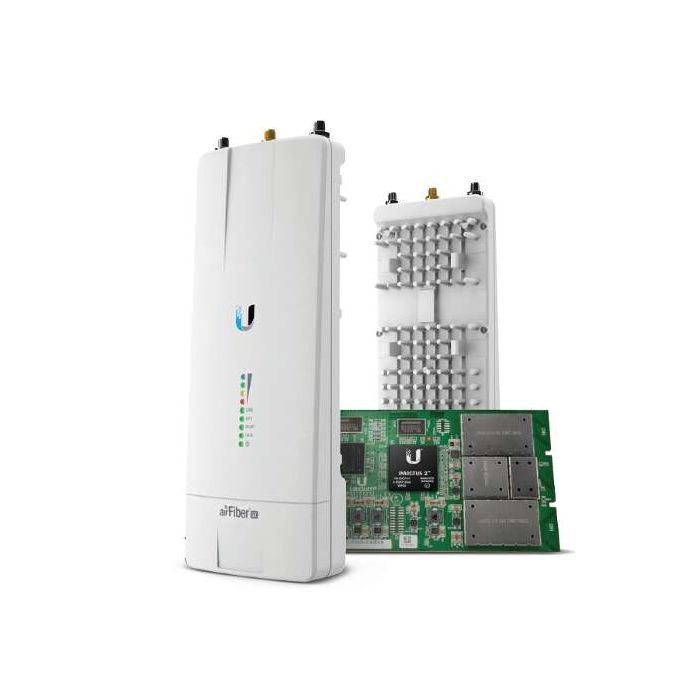

Ubiquiti AirFiber X 4.9 GHz (AF-4X)
379,31 € 308,38 €
Auf Lager
SKU
UBIQUITI-AIRFIBER4X
| Hersteller-SKU | AF-4X |
|---|---|
| EAN | 810354025655 |
| Hersteller | Ubiquiti |
| Stück in Sammelverpackung | 10 |
Ubiquiti AirFiber 4X 4.9 GHz Licensed Backhaul Radio 500Mbps+
Ubiquiti AirFiber4X
 |
AirFiber4X from Ubiquiti Networks is a product used to implement point-point radio link, providing high performance. It works in 4.9GHz band. This device is based on technology which is used in valued AirFiber 24. It is sold whitout antennas, which can be adjusted according to needs.
Main features:
- Real throughput up to 500 Mbps in HDD mode
- Maximum distance 200 km (throughput and values range can vary depending on the environmental conditions.)
- Plug-and-play installation
- LED display
- Gigabit Ethernet RJ45
- Management over dedicated Ethernet port
- AirSync technology support (built-in GPS receiver)
- 128-Bit AES encryption
Models comparison :
| Modell |  |
AF-5 |
AF-5U |
AF-24 |
AF-24HD |
|---|---|---|---|---|---|
| Frequenz | 4.9 GHz | 5 GHz | 5 GHz | 24 GHz | 24 GHz |
| Durchsatz | 500+ Mbps | 1,2+ Gbps | 1,2+ Gbps | 1.4+ Gbps | 2 Gbps |
| Bereich | 200+ km | 100+ km | 100+ km | 13+ km | 20+ km |
| Abmessungen | 224 x 82 x 48 mm |
| Gewicht mit Ausrüstung | 0.35 kg |
| Maximum power consumption | 12W |
| Schnittstellen | 2x RP-SMA Weatherproof (CH0, CH1) 1x SMA Weatherproof (GPS) Data 10/100/1000 Ethernet Port Management Port 10/100 Ethernet Port |
| Stromversorgung | 24V power adapter, 1A Gigabit PoE Adapter (included) |
| Montage | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (included) |
| Zertifizierungen | DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| Betriebstemperatur | -40 to 55°C |
| Prozessor | INVICTUS IC |
| Maximum throughput | 525 Mbps |
| Maximum range | Up to 200 km |
| Wireless modes | Master/Slave |
| Betriebsfrequenz | 4700-4990 MHz (Dependent on Regulatory Region) |
| Channel bandwidth | 3,5/5/7/10/14/20/28/30/40/50/56 MHz |
| Max. Leitungsgebundene TX-Leistung | Up to 29dBm (Dependent on Regulatory Region) |
| Frequenz-Genauigkeit | ± 2,5 ppm without GPS synchronization ± 0,2 ppm with GPS synchronization |
|
|
||
|
|
| Hersteller-SKU | AF-4X |
|---|---|
| EAN | 810354025655 |
| Hersteller | Ubiquiti |
| Stück in Sammelverpackung | 10 |
| GPSR kontakt | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
