OPTIX cable Aramid Z-XOTKtcdD 2x9/125 ITU-T G.657A1 1.2kN (SPAN 80m)
OPTIX cable Aramid Z-XOTKtcdD 2x9/125 ITU-T G.657A1 1.2kN (SPAN 80m)
OPTIX Cable ARAMID Z-XOTKtcdD 1.2kN (up to 80m SPAN – NESC Heavy)
OPTIX ARAMID Z-XOTKtcdD cable: a central loose construction (20kg/km), great flexibility and durability against dragging, diameter: ˜5.5mm, gel and construction for water blocking (WB), HDPE jacket, resistant to UV radation, temperature range -40°C - 70°C, 2 reinforced FRP rods (∅ 0.4mm) or an ARP rod and reinforced by aramid yarns, fully dielectric, equivalent: ARAMID Z-XOTKtcdD. Maximum installation tension: 1200N.
The cable System is based on Optical Fiber Cable Color Coding. The tube contains up to 24 optical fibers, filled with a hydrophobic gel. The center of the cable is protected against water intrusion through moisture wicking fibers. The HDPE coat is fitted with two rods: ARP or FRP to provide better structural strength. The cable is further enhanced by aramid yarns. The fiber optic cable was fitted with a ripcord - a thin but very strong thread embedded just below the cable Jacket. The cables are designed for installation in primary and secondary, teletechnical canalization by pneumatic (cable blowing) and mechanical (cable jetting) methods, and for aerial installation on a span of up to 80 meters.
Features
- Universal cable for aerial/canalization
- Span (NESC Heavy) up to 80meters (1.2kN)
- Fully dielectric construction
- Resistance to high and low temperatures
- Enhanced by high quality aramid yarns
- Solid HDPE jacket

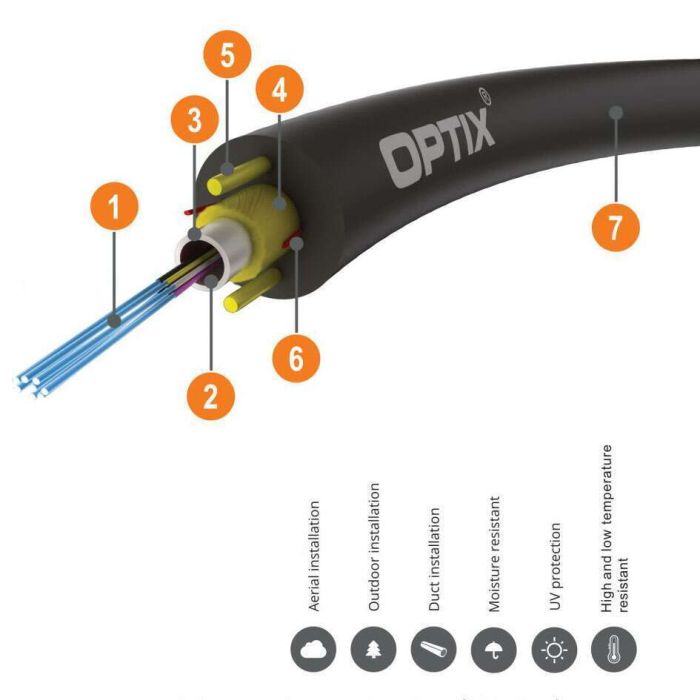

Cable construction
- Optical fibres in 0.25mm coloured coating
- Hydrophobic jelly
- Loose tube
- Aramid yarns
- ARP rods / FRP rods
- Ripcords to tear the outer jacket
Technical specification
| Product information | ||||||||||
| Cable version |
The total amount of fibres [pcs] |
Weight [kg/km] (±10%) |
∅ Cable [mm] (±0.4) |
∅ Tube [mm] (±0.15) |
Supporting element/ Peripheral reinforcement |
Reinforcing element [mm] (±0.1) |
Coating material & thickness [mm] (±0.2) |
Temp. range instalation |
Temp. range operating transport |
Minimum bending radius temporary permanent |
| 1T2F | 2 | 22 | 5.3 | 1.4/2.0) | Aramid yarns | ARP(2x0.5)/ FRP(2x0.4) |
HDPE(1.4) | -10° to +50°C | -40° to +70°C | 20D/10D |
| 1T4F | 4 | 22 | 5.3 | 1.4/2.0) | Aramid yarns | ARP(2x0.5)/ FRP(2x0.4) |
HDPE(1.4) | -10° to +50°C | -40° to +70°C | 20D/10D |
| 1T8F | 8 | 22 | 5.3 | 1.4/2.0) | Aramid yarns | ARP(2x0.5)/ FRP(2x0.4) |
HDPE(1.4) | -10° to +50°C | -40° to +70°C | 20D/10D |
| 1T12F | 12 | 22 | 5.3 | 1.4/2.0) | Aramid yarns | ARP(2x0.5)/ FRP(2x0.4) |
HDPE(1.4) | -10° to +50°C | -40° to +70°C | 20D/10D |
| 1T24F | 24 | 25 | 5.8 | 1.6/2.4) | Aramid yarns | ARP(2x0.5)/ FRP(2x0.4) |
HDPE(1.4) | -10° to +50°C | -40° to +70°C | 20D/10D |
| Mechanical parameters | EN standard | IEC standard | 1-8F | 12F | 24F |
| Tensile Strength Installation (NESC Heavy) | EN 187000 | IEC 60794-1-2-E1 | 1200N | 1200N | 1200N |
| Tensile Strength Operation (NESC Heavy) | EN 187000 | IEC 60794-1-2-E1 | 600N | 600N | 600N |
| Crushing resistance | EN 187000, m.504 | IEC 60794-1-2-E3 | 500N (100x100mm) for 60 sec. | ||
| Repeated bending | EN 187000, m.507 | IEC 60794-1-2-E6 | 30 cycles [(20xD), 1Kg] | ||
| Hersteller-SKU | ARAMID-Z-XOTKTCDD-2X652D |
|---|---|
| Hersteller | Optix |
| GPSR kontakt | Inter Projekt S.A. Marszałkowska 68/72/26 00-545 Warszawa info@interprojekt.pl |
