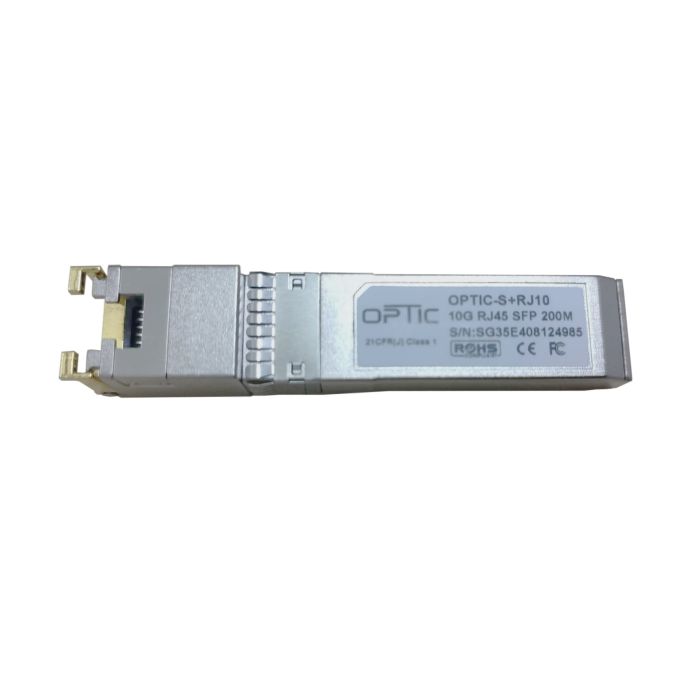

OPTIC S+RJ10 - copper module

OPTIC-SFP-S+RJ10

This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any device that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware.

Main Features

• Based on Marvell 88X3310P
• Power consumption 2.4 W max (10GBASE-T, 30 m link)
• Can only be used in SFP+ ports

Technical Specification

Anschluss	1.25Gbps
Datenrate	10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
Entfernung	up to 200m
