Mikrotik LHG 5 ax (LHG-5axD)
| Hersteller-SKU | LHG-5axD |
|---|---|
| Hersteller | Mikrotik |
| Stück in Sammelverpackung | 5 |

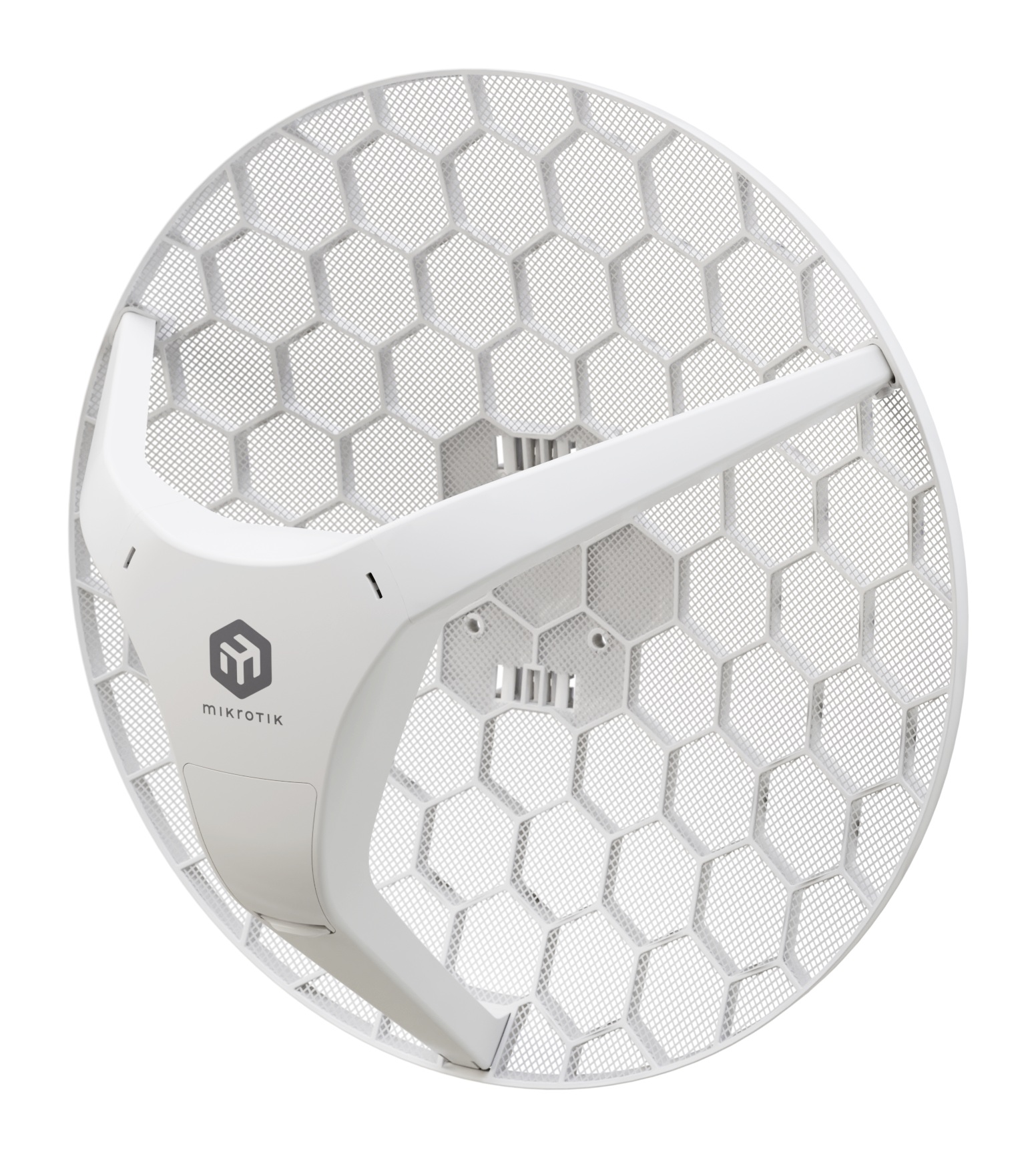

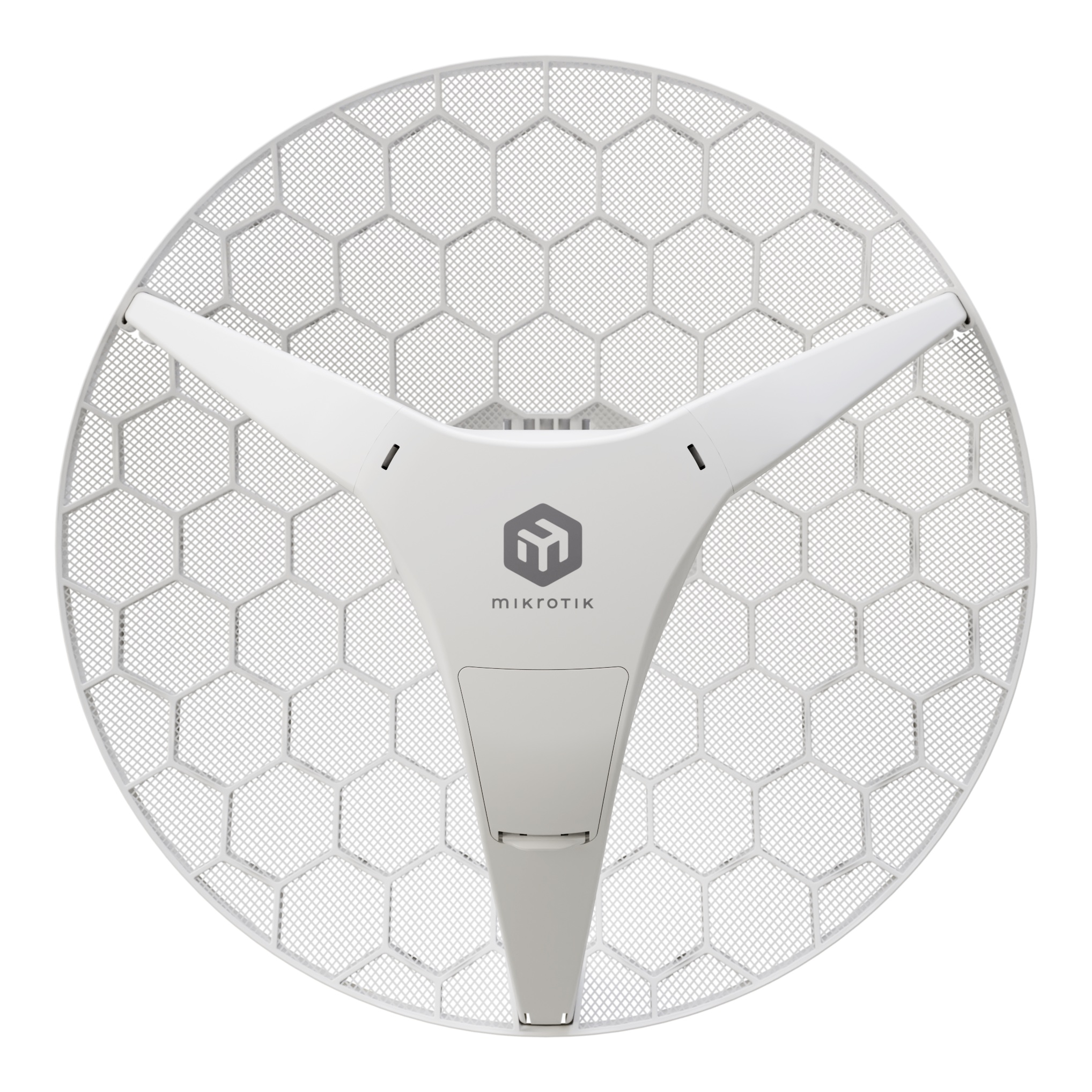

MIKROTIK LHG 5 ax
Product Description
The MikroTik LHG 5 ax is a rugged, long-range outdoor CPE designed for point-to-point wireless links using the Wi-Fi 6 (802.11ax) standard. It features a high-gain 24.5 dBi grid antenna, integrated radio, and dual-core ARM processor for improved throughput, lower latency, and better spectral efficiency — even in noisy environments. With WPA3 encryption and RouterOS v7 with Level 3 license, it’s ideal for bridging remote locations or providing last-mile connectivity.
Key Features
- 24.5 dBi integrated grid antenna
- Dual-core ARM 64-bit IPQ-5010 CPU (800 MHz)
- 256 MB RAM, 128 MB NAND
- 802.11a/n/ac/ax Wi-Fi 6 radio (5 GHz)
- Gigabit Ethernet port with passive PoE-in (12–28 V)
- Max link distance: up to 20 km
- Operating temperature: -40°C to +70°C
- Includes PoE injector, power adapter, and mounting kit
Technical Specifications
| Product code | LHG-5axD |
| CPU | IPQ-5010, Dual-core, 800 MHz |
| Architecture | ARM 64-bit |
| RAM | 256 MB |
| Storage | 128 MB NAND |
| Ethernet | 1 × Gigabit Ethernet |
| Wireless | 5 GHz 802.11a/n/ac/ax (QCN-6102) |
| Antenna gain | 24.5 dBi |
| Dimensions | 391 × 222 mm |
| PoE input | Passive PoE, 12–28 V |
| Max power consumption | 5 W |
| Operating system | RouterOS v7, Level 3 |
| Temperature range | -40°C to +70°C |
| Included | PoE injector, 24 V 0.38 A PSU, hose clamps, mount kit |
Applications and Compatibility
The MikroTik LHG 5 ax is perfect for long-distance point-to-point wireless links, especially in rural, suburban, and industrial environments. Thanks to its directional high-gain antenna and Wi-Fi 6 support, it offers improved performance in congested frequency areas. It’s fully compatible with other MikroTik Wi-Fi 6 devices, and can also operate in bridge or station mode when connecting to APs supporting legacy 802.11 protocols.
Summary
The LHG 5 ax is a reliable, compact, and efficient outdoor CPE from MikroTik, built for next-gen point-to-point performance using the Wi-Fi 6 standard. With passive PoE support, integrated antenna, and RouterOS features, it’s a professional tool for modern wireless deployments.
| Hersteller-SKU | LHG-5axD |
|---|---|
| Hersteller | Mikrotik |
| Stück in Sammelverpackung | 5 |
| GPSR kontakt | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
