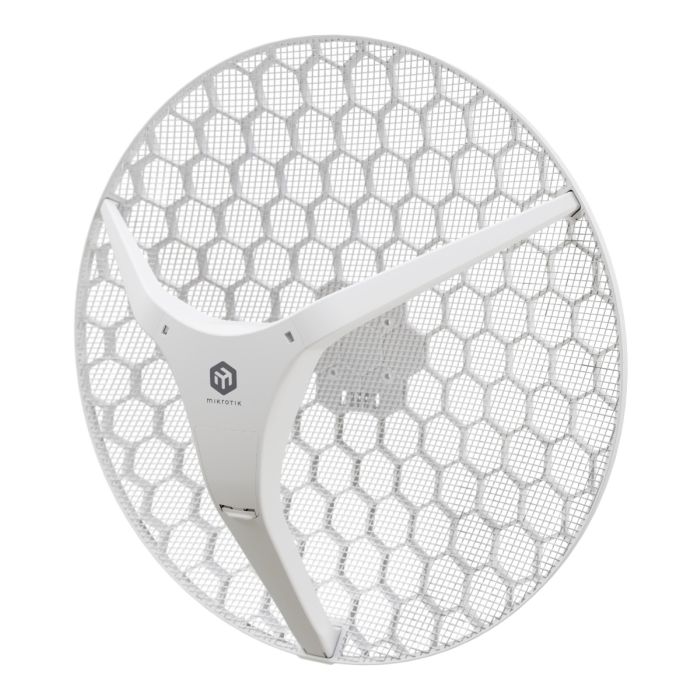

Mikrotik LHG 5 ax XL (LHG-5axD-XL)
| Hersteller-SKU | LHG-5axD-XL |
|---|---|
| Hersteller | Mikrotik |
| Stück in Sammelverpackung | 5 |
The MikroTik LHG XL 5 ax is a high-gain outdoor Wi-Fi 6 CPE with a 27 dBi integrated grid antenna, designed for ultra-long-range point-to-point links up to 30 km. It features WPA3 encryption, RouterOS v7, and passive PoE.
MIKROTIK LHG XL 5 ax
Product Description
The MikroTik LHG XL 5 ax is a professional-grade outdoor CPE for ultra-long-distance wireless point-to-point links, featuring a 27 dBi high-gain antenna and Wi-Fi 6 (802.11ax) support. Powered by a dual-core 800 MHz ARM processor, 256 MB RAM, and RouterOS v7 with Level 3 license, it ensures secure and efficient operation with WPA3 encryption and passive PoE. Built into a lightweight yet durable grid reflector, it offers excellent performance and resistance to wind and harsh weather conditions.
Key Features
- 27 dBi integrated grid antenna for ultra-long-range links
- Dual-core ARM IPQ-5010 CPU, 800 MHz
- 256 MB RAM and 128 MB NAND storage
- 1× Gigabit Ethernet port with passive PoE-in (12–28 V)
- 5 GHz 802.11a/n/ac/ax (Wi-Fi 6)
- WPA3 encryption
- RouterOS v7 with Level 3 license
- Passive PoE input (12–28 V)
- Lightweight design optimized for wind resistance
- Operating temperature: -40°C to +70°C
Technical Specifications
Mechanical
| Dimensions | Ø 550 × 245 mm |
| Weight | 943 g (without mount) |
| Enclosure | UV-stabilized plastic |
Hardware
| Product Code | LHG-5axD-XL |
| CPU | IPQ-5010, dual-core, 800 MHz |
| Architecture | ARM 64-bit |
| RAM | 256 MB DDR3 |
| Storage | 128 MB NAND |
| Ethernet | 1 × 1G port |
| Wireless | QCN-6102, 5 GHz 802.11a/n/ac/ax |
| Antenna Gain | 27 dBi |
| PoE Input | Passive PoE (12–28 V) |
| Max. Power Consumption | 5 W |
| Operating System | RouterOS v7 |
| License | Level 3 |
| Operating Temperature | -40°C to +70°C |
Applications and Compatibility
The LHG XL 5 ax is designed for extremely long-range wireless backhaul or bridging scenarios, especially in rural or mountainous terrain. Its 27 dBi antenna and Wi-Fi 6 standard ensure strong, stable links up to 30 km. It integrates seamlessly with MikroTik infrastructure and supports 802.11ax/ac/n standards.
Summary
The MikroTik LHG XL 5 ax is the ultimate solution for ultra-long-range wireless deployments. With Wi-Fi 6, a 27 dBi antenna, and RouterOS v7, it combines range, throughput, and security in a wind-optimized outdoor form factor.
| Hersteller-SKU | LHG-5axD-XL |
|---|---|
| Hersteller | Mikrotik |
| Stück in Sammelverpackung | 5 |
| GPSR kontakt | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
