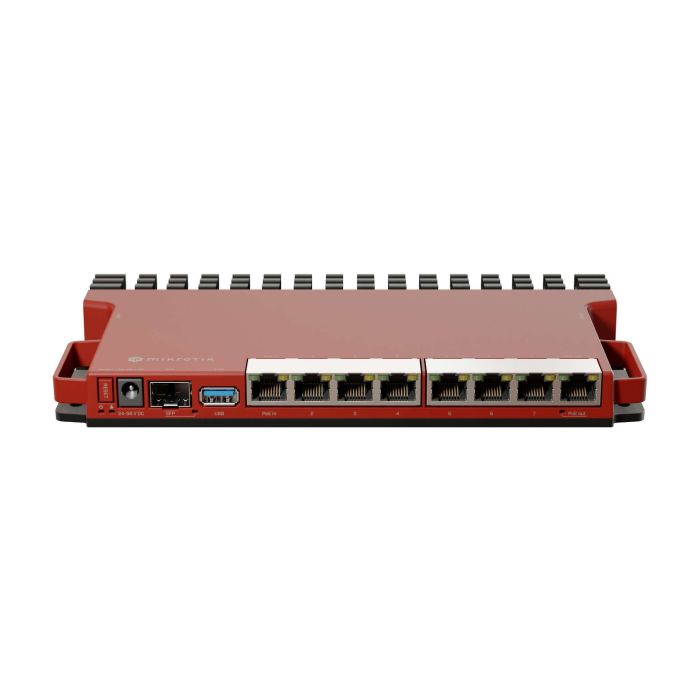

Mikrotik L009UiGS-RM
Hersteller-SKU | L009UiGS-RM |
---|---|
EAN | 4752224008589 |
Kabellänge | 1m |
Hersteller | Mikrotik |
Time to upgrade your RB2011 setups: more features & better performance for the same low price!
The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, it’s time for an upgrade. But don’t worry: we’ve kept and improved all the key elements and features of the beloved RB2011. Even the red color scheme and the appealing price!
All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration!
L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.
L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.
All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration!
* Works only if powered by DC jack
At the heart of it all we have a speedy Marvell Peridot Switchchip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. That means – countless configurations with no bottlenecks!
The new enclosure is a spectacular innovation on its own. It’s the same form-factor you might have seen with our highly sought-after RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But here’s the fun part: it comes with everything you need to fit up to four of these routers in a single 1U rackmount space.
L009 is not just a router. It’s a versatile network appliance that can assist you in so many ways.
Specyfication:
CPU | Dual-Core IPQ-5018 800 MHz | |
CPU architecture | ARM 64bit | |
Size of RAM | 512 MB | |
RAM type | DDR3L | |
Storage | 128 MB, NAND | |
Number of 1G Ethernet ports | 8 | |
Number of 1G SFP ports | 1 (2.5G supported) | |
USB port | 1 (3.0 type A) | |
Serial console port | RJ45 | |
Switch chip model | 88E6190 | |
Dimensions | 220 x 125 x 22 mm | |
Operating system | RouterOS v7, License level 5 | |
Operating temperature | -40°C to +70°C | |
Powering | ||
PoE-in | 802.3af | |
PoE-Out* | Passive PoE | |
Max out per port output (DC input 24-30 V) | 1A | |
Max out per port output (DC input 30-56 V) | 450 mA | |
Number of DC inputs | 2 (PoE-in, DC jack) | |
PoE-in input Voltage | 24-56 V | |
DC jack input Voltage | 24-56 V | |
Max USB current | 1.5 A | |
Power adapter nominal voltage | 24 V | |
Power adapter nominal current | 1.5 A | |
Max power consumption without attachments | 8 W | |
Max power consumption | 37 W |
Hersteller-SKU | L009UiGS-RM |
---|---|
EAN | 4752224008589 |
Kabellänge | 1m |
Hersteller | Mikrotik |
