Mikrotik CRS510-8XS-2XQ-IN
831,53 € 676,04 €
Auf Lager
SKU
RTB-CRS510-8XS-2XQ-IN
| Hersteller-SKU | CRS510-8XS-2XQ-IN |
|---|---|
| EAN | 4752224008466 |
| Kabellänge | 1m |
| Hersteller | Mikrotik |
100 Gigabit Managed Switch. The manufacturer equipped it with 2 QSFP28 interfaces with a speed of 100Gb/s, 8 SFP28 ports with a speed of 25Gb/s and two hot-swap power supplies. Full support for VLANs, MLAGs and Jumbo frames.

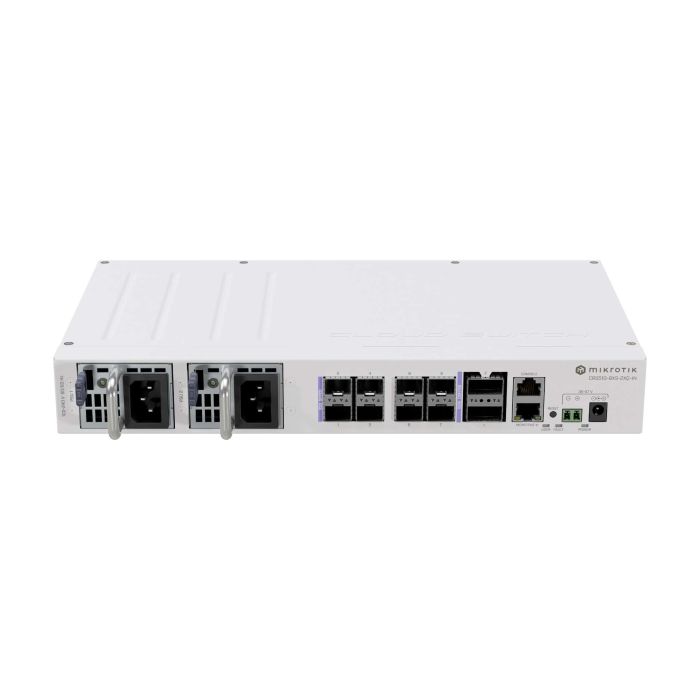

MikroTik CRS510-8XS-2XQ-IN Managed Switch
Cloud Core Switch CRS510-8XS-2XQ-IN is a high-performance, fully managed L2/L3 switch. The compact desktop housing (it is also possible to install it in a Rack cabinet) accommodates two QSFP28 slots with a speed of 100Gb/s each and 16 SFP28 slots with a bandwidth of 25Gb/s.
Thanks to the Marvell Presta chip, huge performance goes hand in hand with low power consumption - only 27W - and functionality. The CRS510-8XS-2XQ-IN switch hardware supports almost all functions that we could expect from a modern switch, including VLANs, ACLs, MLAG, MSTP or even L3 Hardware offloading.
MikroTik also took care of the system's security and availability - the CRS510-8XS-2XQ-IN can be powered in 4 ways, including two redundant hot-swap power supplies.
Technical specification:
| Product code | CRS510-8XS-2XQ-IN | |
| Architecture | MIPSBE | |
| CPU | QCA9531 | |
| CPU core count | 1 | |
| CPU nominal frequency | 650 MHz | |
| Switch chip model | 98DX4310 | |
| RouterOS license | 5 | |
| Operating System | RouterOS v7 | |
| Size of RAM | 128 MB | |
| Storage size | 32 MB | |
| Storage type | FLASH | |
| MTBF | Approximately 200'000 hours at 25C | |
| Tested ambient temperature | -40°C to 70°C | |
| Powering | ||
| Number of AC inputs | 2 | |
| AC input range | 100-240 | |
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) | |
| DC jack input Voltage | 36-57 V | |
| 2-pin terminal input Voltage | 36-57 V | |
| Frequency (Hz) | 47-63 | |
| Max power consumption | 45 W | |
| Max power consumption without attachments | 27 W | |
| Cooling type | 2 fans | |
| PoE in | 802.3 bt | |
| PoE in input Voltage | 42.5-57 V | |
| Ethernet | ||
| 10/100 Ethernet ports | 1 | |
| Fiber | ||
| Number of 25G SFP28 ports | 8 | |
| Number of 100G QSFP28 ports | 2 | |
| Peripherials | ||
| Serial console port | RJ45 | |
| Others | ||
| CPU temperature monitor | Yes | |
| PCB temperature monitor | Yes | |
| PCB temperature monitor | Yes | |
| Certification & Approvals | ||
| Certification | CE, EAC, ROHS | |
| IP | 20 | |
| Hersteller-SKU | CRS510-8XS-2XQ-IN |
|---|---|
| EAN | 4752224008466 |
| Kabellänge | 1m |
| Hersteller | Mikrotik |
