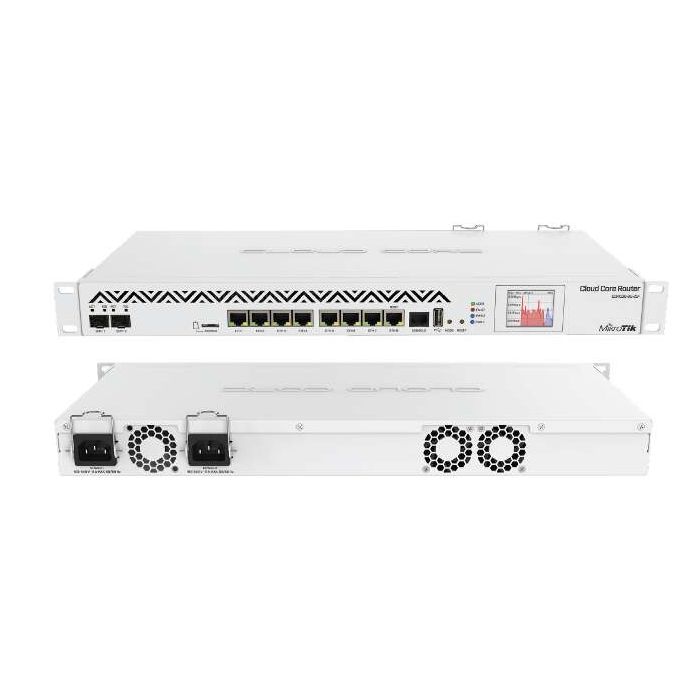

Mikrotik CCR1036-8G-2S+EM

Extended Memory version - 8GB (2x4) RAM installed

The CCR1036-8G-2S EM is a high performance networking router with eight Gigabit ports, two SFP+ ports for 10G connectivity and dual power supplies for redundancy. Powered by a 36 core CPU, this router is able to perform the most complicated routing and management tasks, for managing large networks with high bandwidth requirements. Each of it’s ports is directly connected to the Tilera networking CPU, with no ports sharing any bandwidth, guaranteeing the best performance and highest reliability. The CPU supports IPsec hardware accelerated encryption, so you can use it also as a high performance VPN gateway to ensure the best encryption between important locations, without sacrificing connection speed. The M.2 slot allows to install a high speed SSD disk, for using a local user database, proxy storage or for other features. Comparing to the previous model, the new CCR1036 series has a full size USB port, redundant power supplies with improved design, RJ45 serial port and general improvements in durability, efficiency and reliability.

CPU	Tilera Tile-Gx36 CPU (36-cores, 1.2Ghz per core)
Speicher	Two SODIMM DDR3 slots, 8GB (2x4GB) RAM installed
Ethernet	Eight 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
SFP	Two 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support
Erweiterung	microUSB port, host and device mode
Lagerung	1GB Onboard NAND
Serieller Anschluss	One DB9 RS232C asynchronous serial port
Extras	Reset switch; speed controlled fan; beeper; voltage, current and temperature monitoring
Leistungsoptionen	2x IEC C14 standard connector 110/220V (PSU included), up to 60W power consumption
Abmessungen der Platte	355×145mm×55mm
Temperatur	Max ambient temperature 50°C @ 1.2GHz; 70° @ 1GHz CPU core frequency
OS	MikroTik RouterOS v6 (64bit), Level 6 license
Eingeschlossen	Router in a 1U case with LCD,2x PSU, power cable
