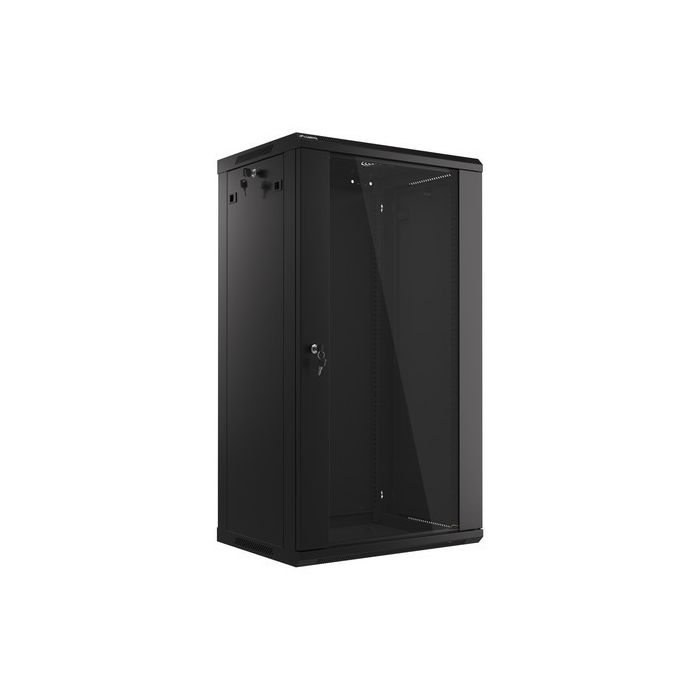

Lanberg :: Rack Cabinet 19” Wall-Mount 22U/600X450 (flat-pack) V2 Black LANBERG

Features:

• Cabinet type: Wall mount,
• Body color: Black RAL9004,
• Height: 22U,
• Cabinet dimensions (W x D x H): 600x450x1085 mm,
• Height (top panel bottom panel): 1078 mm,
• Height (top panel ground including screws): 1085 mm,
• Packaging dimensions (W x D x H): 62x120x19 cm,
• Internal width spacing between rack rails: 450 mm,
• Width of the spacing between holes of rack rails: 475 mm,
• External width spacing between rack rails: 500 mm,
• Loading capacity: max. 60 KG,
• Degree of protection: IP20,
• Doors type: Temper glass,
• Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
• Fan mounting slots: Yes, 120mm, 110V or 230V,
• Glass thickness: 5.0 mm,
• Sheet thickness: vertical moMaterial: High grade cold rolled steel, powder coated,
   unting rails 1,50 mm; mounting profile 1,50 mm; others 1,20 mm; top & bottom & side panel 1,00 mm,
• Cable entry panel: Top, Bottom,
• Included: Accessory bag, earth kit, front door lock, two side panels with locks, 10 cage nuts M6.
