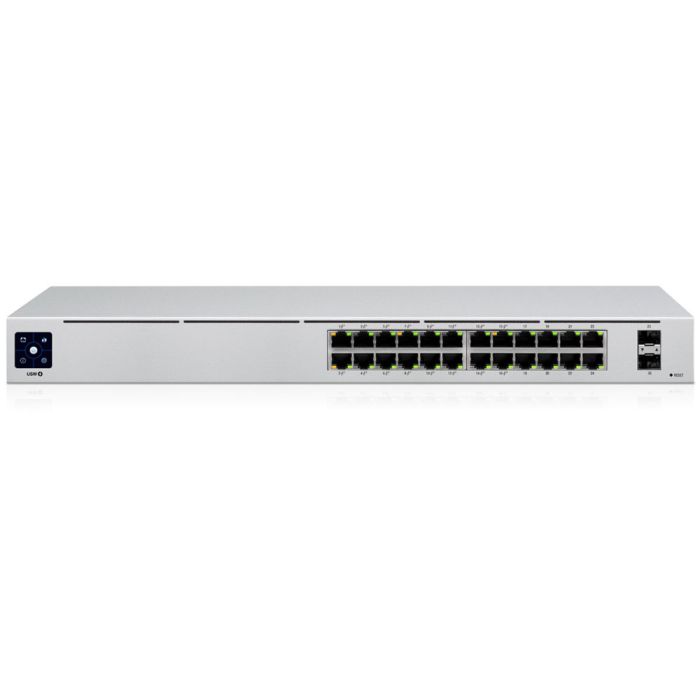

Ubiquiti Standard 24 PoE - Switch L2 24x 1GbE 2x SFP (USW-24-POE)
The Ubiquiti Standard 24 PoE is a fanless, rack-mountable, L2-managed switch in a 1U format. It features 24 1GbE RJ45 ports (including 16 PoE+ ports with a 95W budget) and two 1G SFP slots.
Accessories and add-ons:
Ubiquiti Standard 24 PoE - 24-Port Passively Cooled Layer 2 Switch
Ubiquiti Standard 24 PoE (USW-24-POE) is a managed Layer 2 switch designed for 1U rack mounting. It is equipped with a total of 26 ports. The main interface consists of 24 1 GbE RJ45 ports, 16 of which can power PoE+ devices (total power budget is 95W). Additionally, the device has two 1G SFP (uplink) slots.
Non-blocking throughput is 26 Gbps, with a total throughput of 52 Gbps. The device has Layer 2 features, including: VLAN support, link aggregation (LACP), STP/RSTP protocols, network isolation, and 802.1X control.
The device is constructed of galvanized steel (SGCC). Power is supplied by an internal 120W power supply (with the switch itself drawing a maximum of 25W). The device has a passive cooling system, eliminating noise generation, allowing for trouble-free installation, for example, in open office spaces. A 1.3-inch LCM touchscreen is located on the front of the enclosure.
Key Features
-
Copper Ports: 24x 1 GbE RJ45.
-
Fiber Ports: 2x 1G SFP.
-
PoE Budget and Standard: Total 95W; 16 ports support PoE+ (up to 32W per port).
-
Matrix Performance (L2): 52 Gbps switching capacity (26 Gbps non-blocking).
-
Power and Cooling: Integrated 120W power supply (maximum device power consumption 25W), passive cooling (fanless).
Technical Specifications

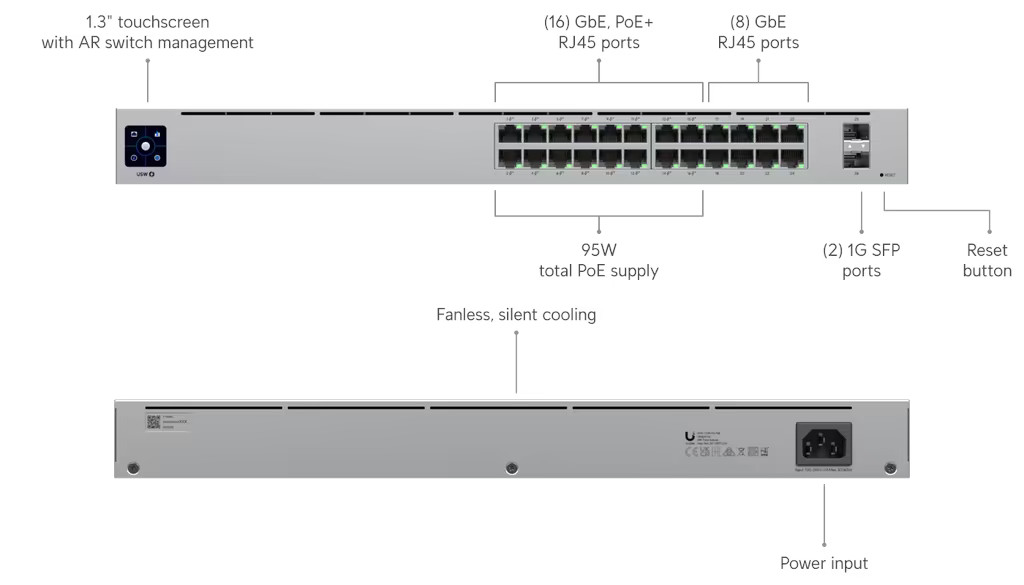

| Port Layout | 1 GbE RJ45: 24 (16 PoE+) (1G/100M/10M) 1G SFP: 2 (1G) |
| Maximum PoE Output Power | Up to PoE+ |
| Total PoE Budget | 95W |

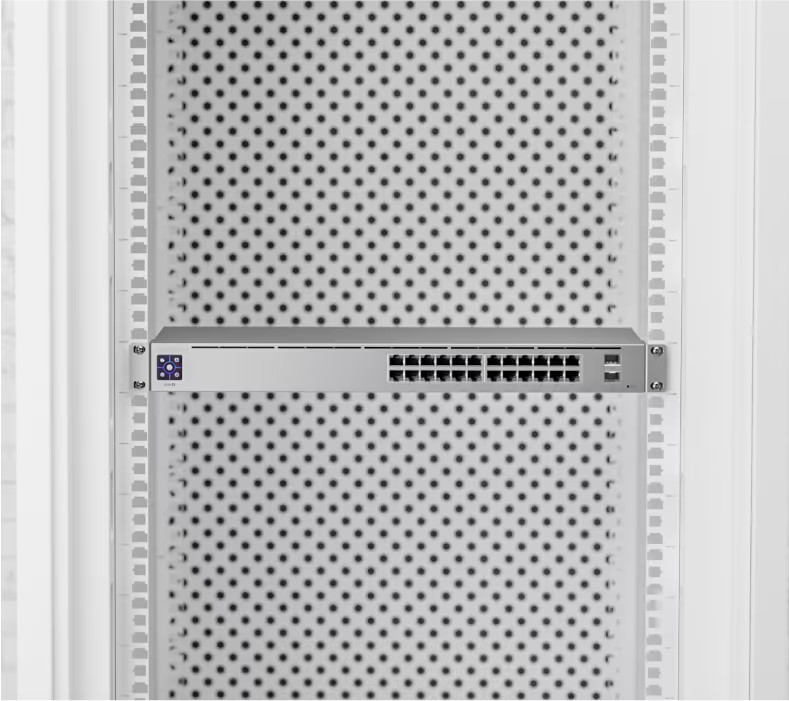

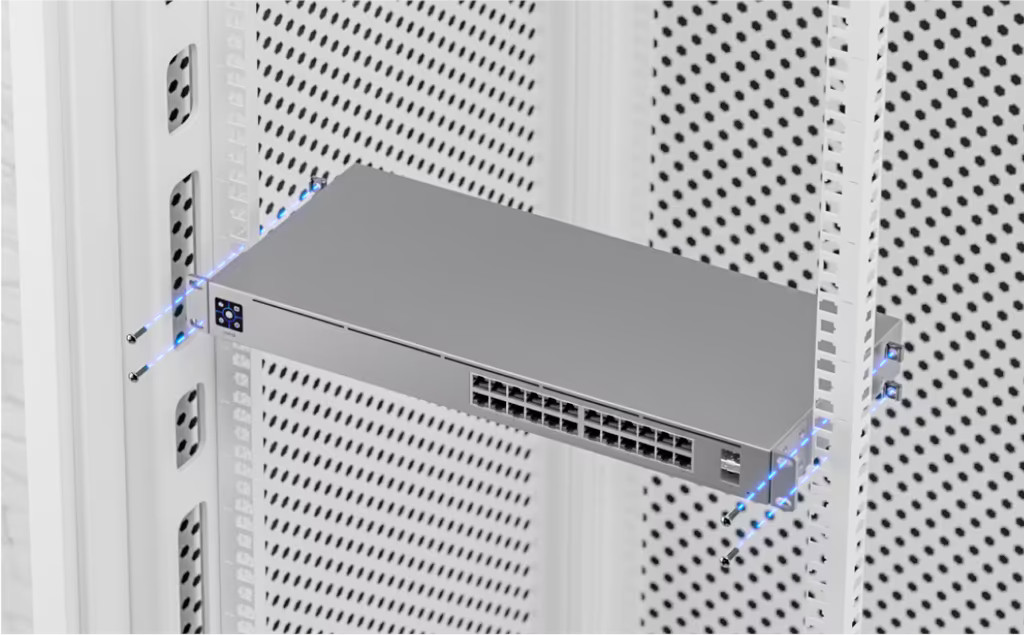

| Chassis Form Factor | Rack-Mount (1U) |
| Performance Switching) | 52 Gbps |
| Aggregate Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 39 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists (ACLs) | IPv4: 128 MAC: 128 |
| L2 Networking and Security Features | LACP Port Aggregation STP & RSTP Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs and Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast MAC Blocking IP-Based ACLs and Network Isolation MAC Port Restrictions Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override |
| PoE Ports | 16 PoE+ Ports |
| Maximum PoE Power per Port (PSE) | PoE: 15.4W PoE+: 32W |
| Maximum Power Consumption Power | Without PoE output: 25W With PoE output: 120W |
| Power Method | Universal Input 100–240V AC, 50/60 Hz |
| Power Input Method | AC Input |
| Power Supply | AC/DC, Internal, 120W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 85.3 BTU/hr (without PoE output) |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" Touchscreen |
| ESD Protection | Air: ±16kV, Contact: ±12kV |
| Application Requirements | UniFi Network: Version 7.2.94 and later |
Other |
|

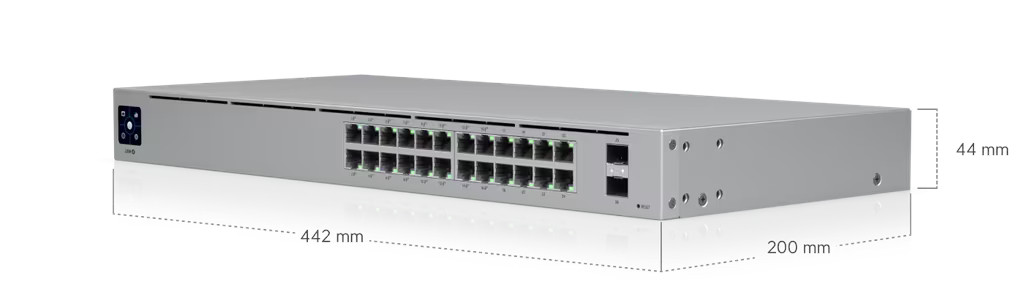

| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight | Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb) |
| Case Material | SGCC Steel |
| Mounting Bracket Material | SGCC Steel |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| Compliance with NDAA | Yes |
| Certificates | CE, FCC, IC, Anatel: 00593-21-08356 |
| Manufacturer SKU | USW-24-POE |
|---|---|
| EAN | 817882028554 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 2 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
