Ubiquiti Pro 48 PoE - Switch L3 48x 1GbE 4x 10G SFP+ (USW-Pro-48-POE)

Ubiquiti Pro 48 PoE - 48-Port Layer 3 Switch with High PoE++ Power Budget

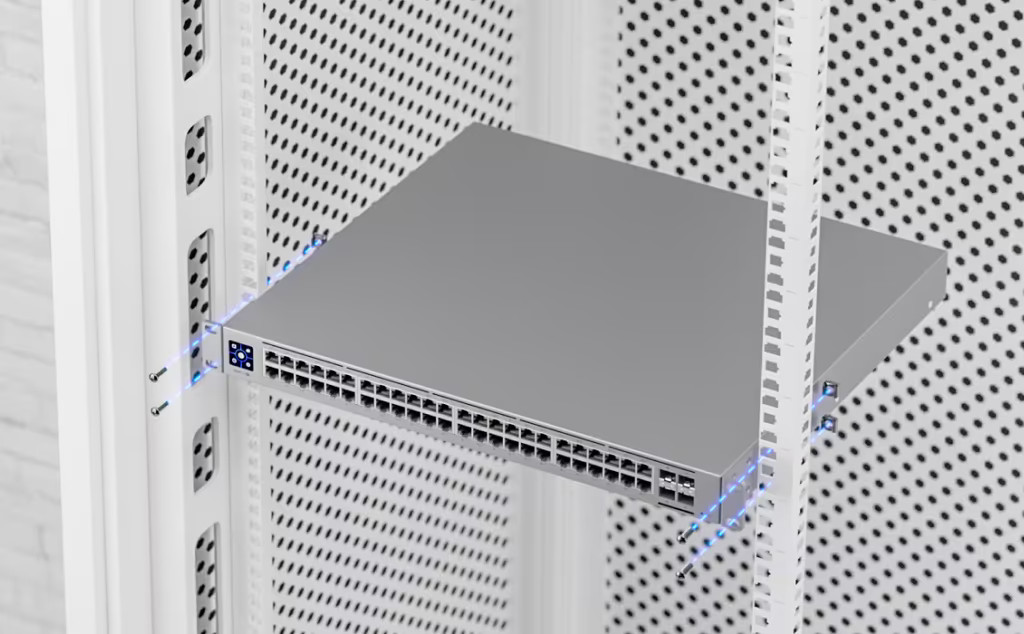

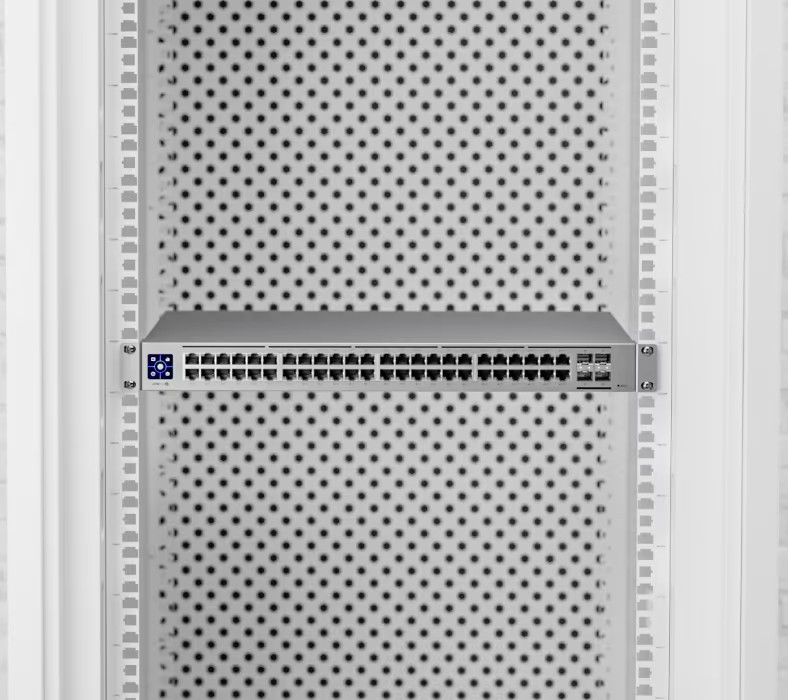

Ubiquiti Pro 48 PoE (USW-Pro-48-POE) is a managed Layer 3 (L3) switch designed for installation in 1U rack cabinets. The device is equipped with a total of 52 ports: 48 1GbE RJ45 ports and four 10G SFP+ slots. The switch provides power with a total power budget of 600W. The first 40 RJ45 ports support PoE+ standard (up to 32W per port), while the remaining 8 ports provide PoE++ power (up to 60W), enabling power delivery to demanding endpoint devices such as PTZ cameras and multi-radio access points.

The total switching capacity is 176 Gbps (88 Gbps non-blocking throughput), with a forwarding rate of 131 Mpps. The switch includes Layer 3 features such as an integrated DHCP server, Inter-VLAN routing, and support for up to 256 static IPv4 routes. The primary power source is the integrated 660W AC power supply. Continuous operation is ensured by an additional DC input (USP RPS), allowing connection of a redundant backup power supply. The device also supports configuration profiles for Pro AV environments (including Dante, NDI, and AES67).

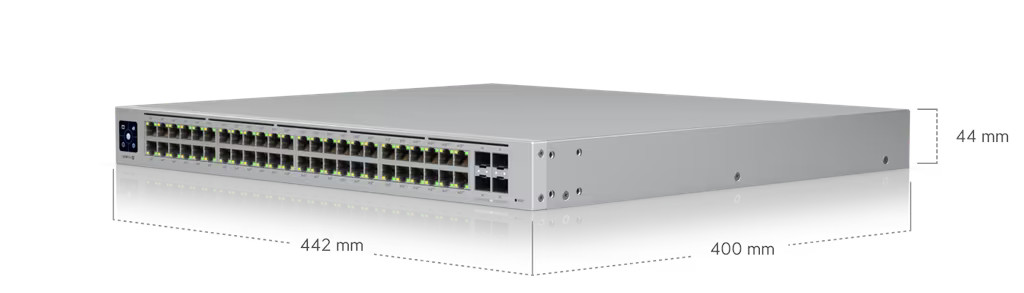

The enclosure and included mounting ears are made of rigid SGCC galvanized steel. The device dimensions are 442 x 400 x 44 mm, and its weight (without mounting hardware) is 6.2 kg. A 1.3-inch touchscreen LCM display is integrated into the front panel.

Key Features

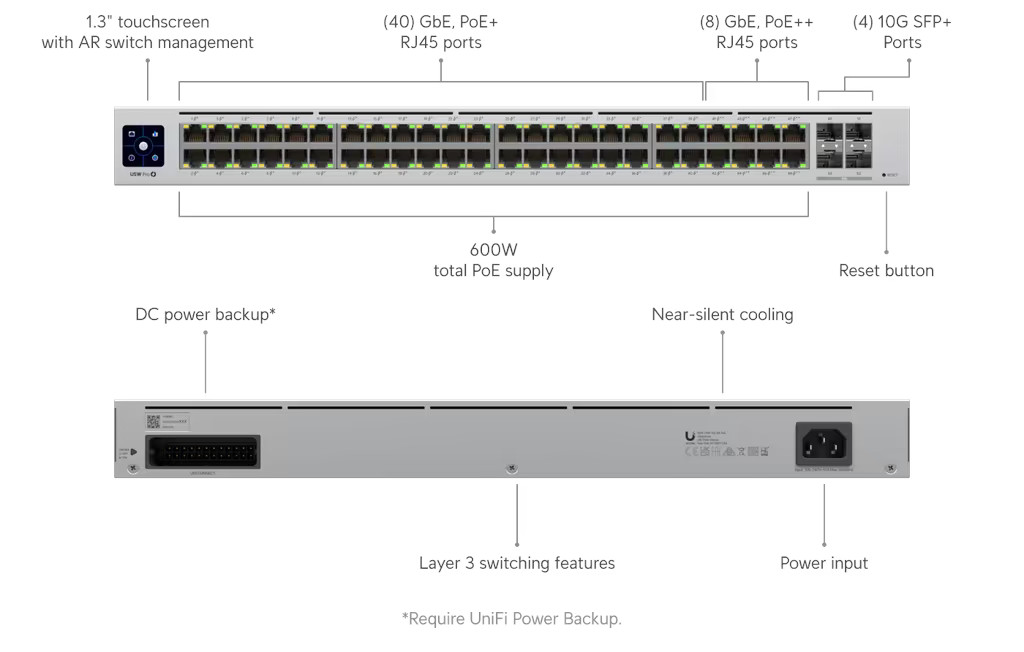

• Interfaces: 48x 1 GbE RJ45 ports.

• Fiber Interfaces: 4x 10G SFP+ slots.

• PoE Standard and Budget: Total available budget of 600W; 40x PoE+ ports (max. 32W) and 8x PoE++ ports (max. 60W).

• Switching Performance (L2/L3): 176 Gbps switching capacity (88 Gbps non-blocking), 131 Mpps packet forwarding rate.

• Layer 3 (L3) Management: DHCP server, Inter-VLAN routing, up to 256 static routes.

• Power and Redundancy: Built-in 660W AC power supply (switch power consumption up to 60W); dedicated USP RPS DC backup connector.

Technical Specifications
