Ubiquiti Lite 8 PoE - Switch L2 8x 1GbE RJ45 (USW-Lite-8-POE)
| Manufacturer SKU | USW-Lite-8-PoE |
|---|---|
| EAN | 810010071156 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 9 |
The Ubiquiti Lite 8 PoE is a compact, managed Layer 2 (L2) switch designed for desktop or wall mounting. It features eight Gigabit Ethernet ports, four of which support PoE+, with a total power budget of 52W.
Ubiquiti Lite 8 PoE - Compact 8-Port Layer 2 Switch with PoE+ Power
Ubiquiti Lite 8 PoE (USW-Lite-8-POE) is a compact Layer 2 (L2) switch. The device features eight Gigabit Ethernet ports (1 GbE RJ45). Four of them provide PoE+ power delivery. The total power budget for connected devices (such as cameras, access points, or VoIP phones) is 52W, with a maximum of 30W available per port.
The total switching capacity is 16 Gbps (8 Gbps non-blocking throughput), with a forwarding rate of 12 Mpps. The device supports L2 features, including VLAN separation, port aggregation (LACP), 802.1X control, STP/RSTP protocols, and IGMP Snooping. Cooling is fully passive, ensuring completely silent operation regardless of the switch load.

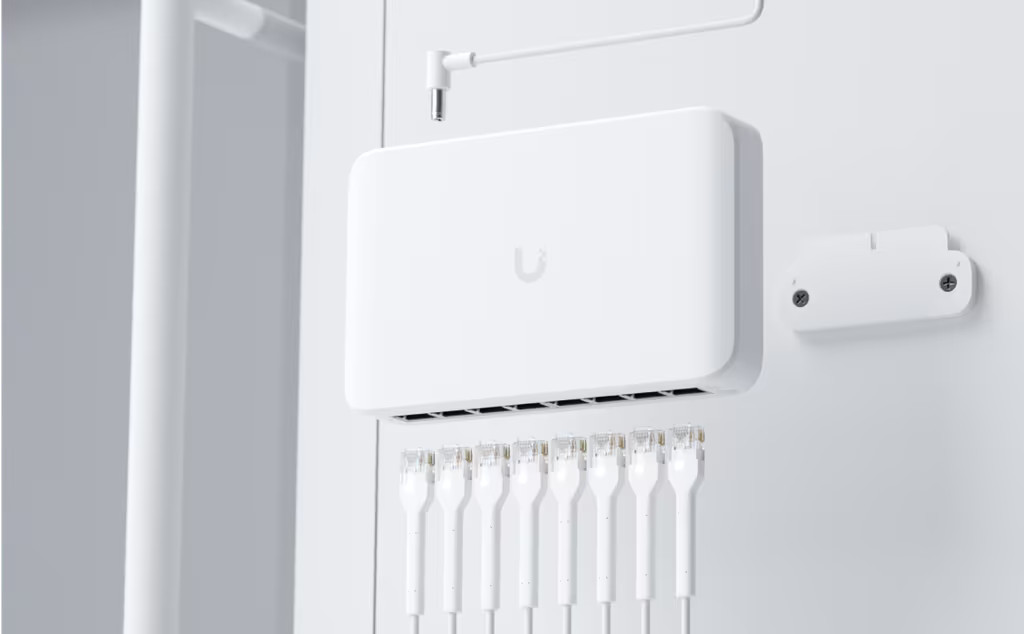

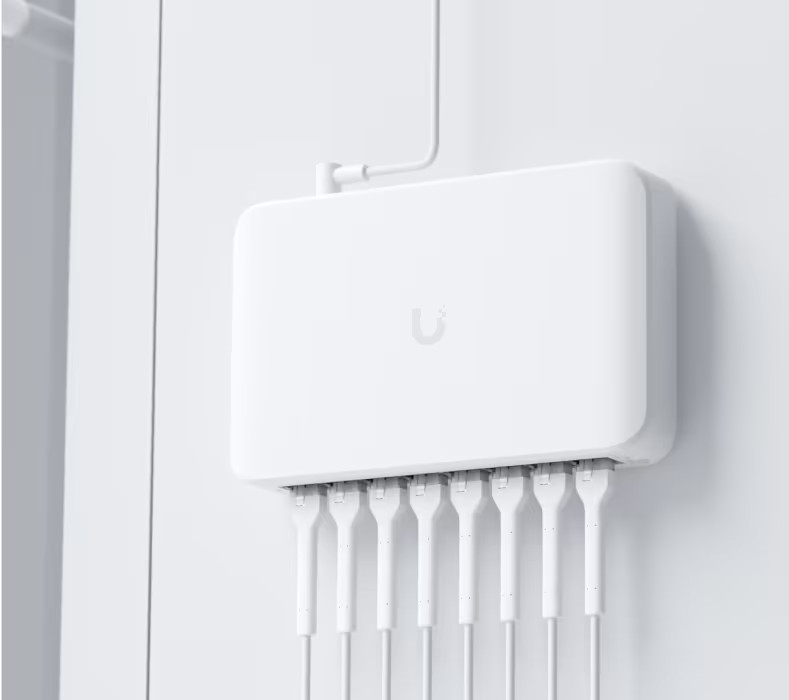

The enclosure and dedicated mounting plate are made of lightweight polycarbonate, resulting in a device weight of only 295 g. The device dimensions are 99.6 x 163.7 x 31.7 mm. Power is supplied by the included external 60W AC/DC adapter (input voltage 50–57V DC).
Key Features
-

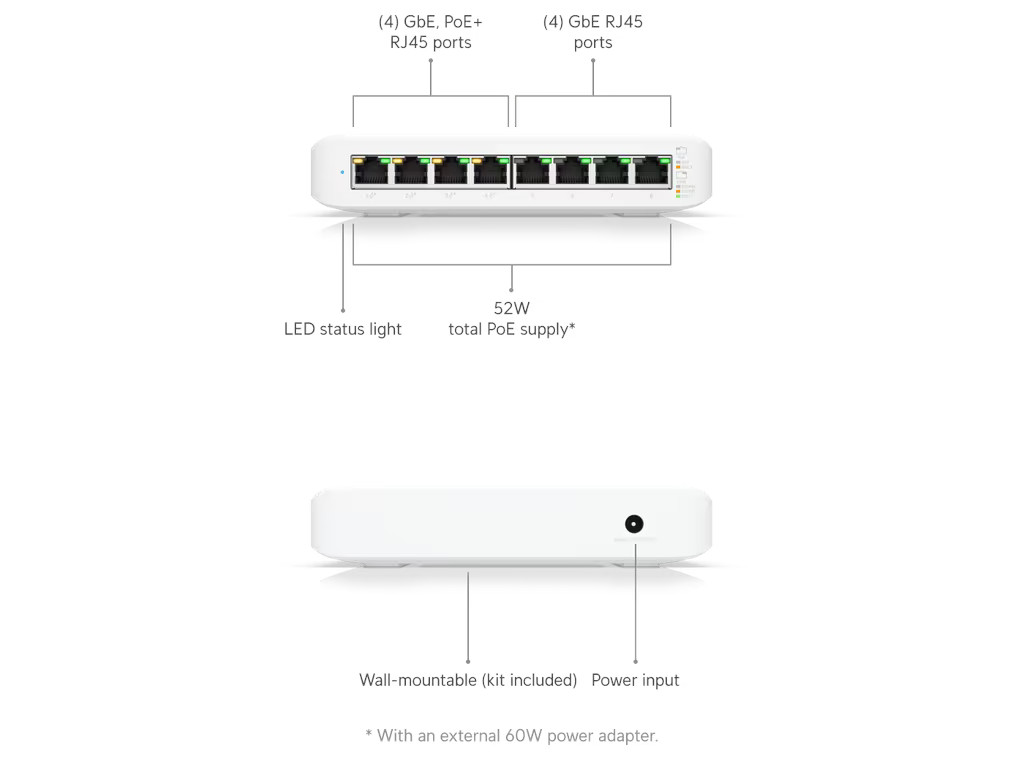

Interfaces: 8x 1 GbE RJ45 ports.
-
PoE Standard: 4x PoE+ ports (802.3at/af).
-
PoE Power Budget: 52W total (maximum 30W per port).
-
Performance (L2): 16 Gbps switching capacity (8 Gbps non-blocking), 12 Mpps forwarding rate.
Technical Specifications
| Port Configuration | 1 GbE RJ45: 8 (4 PoE+) (1G/100M/10M) |
| Maximum PoE Output Power | Up to PoE+ |
| Total PoE Budget | 52W |
| Enclosure Form Factor | Compact desktop, wall-mount |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Control Lists (ACL) | IPv4: 128 MAC: 128 |
| L2 Networking and Security Features | LACP Port Aggregation STP & RSTP Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs and Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Traffic Limiting MAC Address Blocking IP-Based ACLs and Network Isolation MAC-Based Port Restrictions Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override |
| PoE Ports | 4 PoE+ ports |
| Maximum PoE Power per Port (PSE) | PoE+: 30W |
| Maximum Power Consumption | Without PoE output: 8W With PoE output: 60W |
| Power Method | AC/DC adapter (included) |
| Power Input | DC input |
| Power Supply | External AC/DC, 60W |
| Supported Voltage Range | 50–57V DC |
| Management | Ethernet |
| Heat Dissipation | 27.3 BTU/hr (without PoE output) |
| Application Requirements | UniFi Network: version 7.2.94 or later |
Other |
|

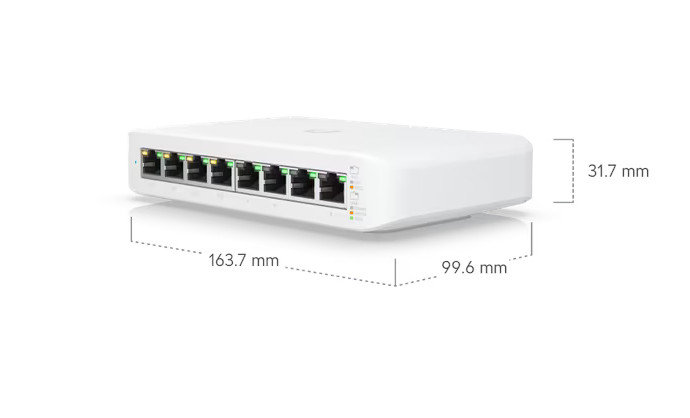

| Dimensions | 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3") |
| Weight | 295 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
| Mounting Bracket Material | Polycarbonate |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 to 90% (Non-condensing) |
| NDAA Compliance | Yes |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
| Manufacturer SKU | USW-Lite-8-PoE |
|---|---|
| EAN | 810010071156 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 9 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
