Ubiquiti Dream Machine Pro - 10G SFP+ Cloud Gateway (UDM-Pro)
| Manufacturer SKU | UDM-Pro |
|---|---|
| EAN | 817882027373 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 2 |
Ubiquiti Dream Machine Pro is an advanced 1U network gateway with a built-in UniFi controller, a firewall (3.5 Gbps IDS/IPS) and an NVR for one 3.5" drive. The device offers 8 1 GbE LAN ports, 1 1 GbE WAN port and 2 10G SFP+ slots.
Accessories and add-ons:
Ubiquiti Dream Machine Pro - SFP+ 10G Network Gateway with UniFi Controller and NVR
Ubiquiti Dream Machine Pro (UDM-Pro) is a 1U rackmount Cloud Gateway designed to manage large UniFi systems. The device integrates the functions of a router, an advanced firewall, and a surveillance recorder, among others. It allows you to simultaneously manage over 100 UniFi devices, 150 access control hubs (Access Hubs), and support over 1,000 connected users.
The built-in NVR has one 3.5" hard drive bay and allows for direct operation of UniFi Protect video systems. The maximum number of supported cameras The maximum network capacity is up to 24 HD cameras, up to 14 2K cameras, or up to 8 4K cameras. Traffic is processed by a quad-core ARM Cortex-A57 processor (1.7 GHz) supported by 4 GB of RAM, enabling routing with full packet inspection (IDS/IPS) with throughput up to 3.5 Gbps.

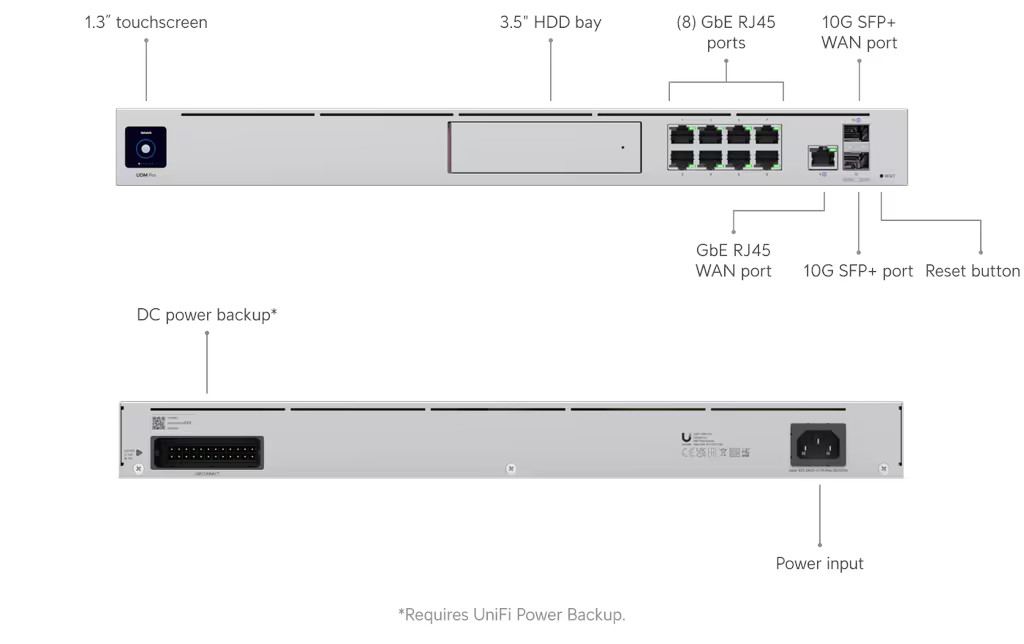

The device is equipped with 8 1GbE RJ45 ports, one dedicated 1GbE RJ45 WAN port, and two 10G SFP+ slots (one assigned to LAN, the other to WAN). The configuration allows for Multi-WAN with Load Balancing. Continuity of operation is ensured by hardware redundancy support (VRRP failover) and a dedicated USP-RPS DC input for connecting external uninterruptible power supply. The housing is made of SGCC steel and aluminum, and the front features a 1.3" LCD touchscreen.
Key Features
-
UniFi Support Scale: Over 100 devices, over 1,000 users, and up to 150 access control hubs.
-
Recorder video:Support up to 24 HD cameras / 14 2K cameras / 8 4K cameras (1x 3.5" HDD bay).
-
Firewall performance: IDS/IPS throughput of 3.5 Gbps.
-
Ports: 9x 1 GbE RJ45 port, 2x 10G SFP+ slot.
-
Hardware Specifications: Quad-core 1.7 GHz processor, 4 GB RAM, 16 GB flash.
Technical Specifications
| UniFi App Suite | Network: Yes Protect: Yes Access: Yes Talk: Yes Connect: Yes |
| Device Support Capabilities | Supported UniFi Devices: 100+ Supported Cameras: (24) HD / (14) 2K / (8) 4K Supported Access Hubs: 150 Simultaneous Connected Users: 1,000+ |
| WAN Ports | Maximum Number of WAN Ports: 8 Default WAN Ports: (1) 10G SFP+, (1) GbE RJ45 |
| Port Layout | 1 GbE RJ45: 9 (1G/100M/10M) 10G SFP+: 2 (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Chassis Form Factor | Rack-Mounted (1U) |
| Reliability and Redundancy | Shadow Mode (VRRP) Gateway Failover DC Backup Power |
| Firewall and Security Features | Stateful Firewall L7 Firewall with Application Awareness DPI and Traffic Identification Advanced Zone Filtering (Regions, Domains, Applications) Content Filtering Intrusion Prevention (IPS/IDS) Ad Blocking: IDS/IPS Signatures: 55 000+ with CyberSecure Traffic segmentation based on VLAN/subnet |
| VPN and SD-WAN features | License-free SD-WAN Site-to-Site VPN: Site Magic, IPsec, OpenVPN VPN Server: Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP VPN Client: OpenVPN, WireGuard |
| Advanced networking features | Multi-WAN load balancing (Load Balancing) High availability Shadow Mode (VRRP) LACP port aggregation Dynamic routing: OSPF, BGP Advanced QoS Multicast DNS (mDNS) Zaawans NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Integrated RADIUS server RADIUS over TLS (RadSec) Additional LTE backup with UniFi LTE Backup Connection quality and internet outage reporting MAC address table size: 4,000 Policy-based WAN and VPN routing Customizable DHCP server IPv6 support with ISP IGMP Proxy Virtual Network Override All traffic flows |
| NVR storage | (1) 3.5" NVR drive bay HDD |
| Power and Electrical Specifications | Maximum Power Consumption: 33W Power Method: (1) Universal AC Input 100–240V AC, 50/60 Hz, (1) USP-RPS DC Input Power Supply: AC/DC, Internal, 50W Supported Voltage Range: 100–240V AC Heat Dissipation: 112 BTU/hr |
| Hardware Specifications | Processor: Quad-core ARM® Cortex®-A57 1.7 GHz System Memory: 4 GB Built-in Memory: 16 GB LCM Display: Touchscreen 1.3" Management: Ethernet, Bluetooth LEDs: Ethernet, SFP+, RPS, PSU, HDD Buttons: (1) Factory Reset |
Other |
|

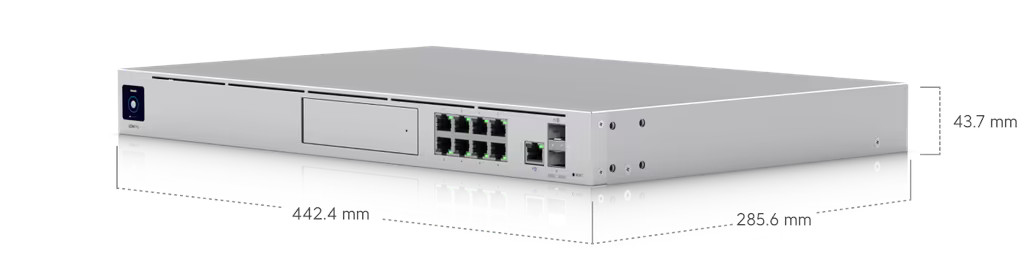

| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 3.9 kg (8.6 lb) |
| Housing Material | CNC Aluminum, Steel SGCC |
| Mounting Bracket Material | Steel SGCC |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% (non-condensing) |
| Compliance with NDAA | Yes |
| Certificates | CE, FCC, IC, Anatel: 01136-20-08356, SRRC |
| Manufacturer SKU | UDM-Pro |
|---|---|
| EAN | 817882027373 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 2 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
