Ubiquiti Dream Machine Pro (UDM-Pro)

• UDM-Pro Professional-grade gateway firewall that runs the full UniFi application suite including UniFi Protect video surveillance with off-the-shelf 3.5" HDD support. Ports: 1 x 10Gb SFP+ WAN, 1 x 1Gb Ethernet WAN, 8 x Gigabit Ethernet switch, routing performance 3.5+ Gbps with IDS/IPS

• Advanced Security Gateway with Built-in Switch
• Dual WAN Ports: One 10G SFP+ and One Gigabit RJ45
• One 10G SFP+ LAN Port
• Includes full UniFi application suite for device management
• 3.5" HDD Bay for NVR Storage (2.5" HDD also supported)

Software
The UDM Pro is the UniFi OS Console so you can manage your UniFi Switches and APs. It can also run the UniFi Protect software for convenient monitoring and complete management of your camera surveillance system. Video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed using the UniFi Protect mobile app. Via remote access, you can securely view the recordings that are privately stored on the UDM Pro rather than a third-party server.
Redundancy
The UDM Pro supports multiple redundancy options to ensure your network remains operational:

• Dual WAN with Failover Supports dual internet/ISP connections with failover: if the primary WAN connection drops, it will automatically switch to the other WAN connection.
• LTE Failover Redundancy Supports the UniFi LTE device for automatic failover to the LTE cellular network. If the wired WAN fails, it will automatically switch to the UniFi LTE, keeping your network online.
• Power Supply Redundancy and Failover The UDM Pro supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts to provide redundant power for backup







Technical Specifications

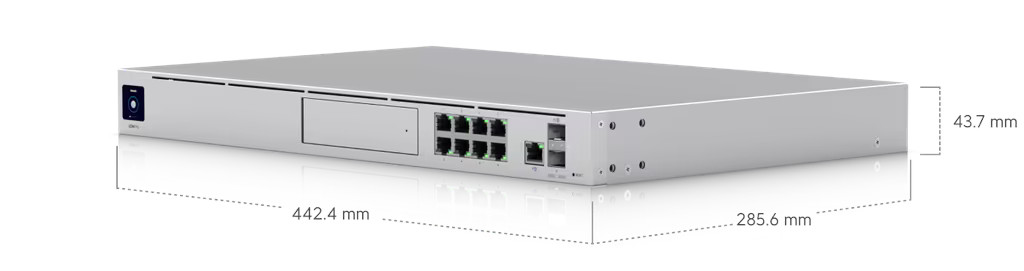

Dimensions	442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight With Brackets	3.99 kg (8.80 lb)
Networking Interfaces	10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port
Management	Ethernet In-Band (1) Bluetooth BLE
IDS/IPS Throughput	3.5 Gbps*
Processor	Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory	4 GB DDR4
On-Board Flash Storage	16 GB
Maximum Power Consumption	33W
Supported Voltage Range	100 - 240VAC
Power Method	(1) Universal AC Input, 100-240VAC, 50/60 Hz (1) RPS DC Input
Power Supply	Internal 50W/12V
LEDs
HDD	Activity
RJ45	Link/Speed/Activity
SFP+	Link/Speed/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature	-10 to 40° C (14 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
