Ubiquiti Standard 24 PoE (USW-24-POE)
| SKU del produttore | USW-24-POE |
|---|---|
| EAN | 817882028554 |
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 2 |
USW-24-POE is a 24-port managed layer 2 switch with PoE support. The device is passively cooled - no fans. 24 1Gb/s ports and 2 SFP 1Gb/s cages. 16 ports with PoE/PoE+ support.
Accessori e componenti aggiuntivi:
Ubiquiti UniFi Standard Switch 24 PoE (USW-24-POE)
Ubiquiti UniFi USW-24-POE is a 24-port managed switch. The device works in layer 2. The manufacturer has equipped the switch with 24 RJ-45 ports with a speed of 1Gb/s and 2 SFP slots supporting inserts with a speed of 1Gb/s. 16 ports support PoE (passive and PoE+).
The USW-24-POE supports all L2 functions that can be expected in a modern managed switch. Among other things, full support for VLAN 802.1q, frame prioritization (QoS) or client isolation.
Ubiquti USW-24-POE is managed by the latest Ubiquiti UniFi controller - free software that facilitates the management and monitoring of even very extensive WiFi networks and their components, i.e. switches, routers and firewalls.

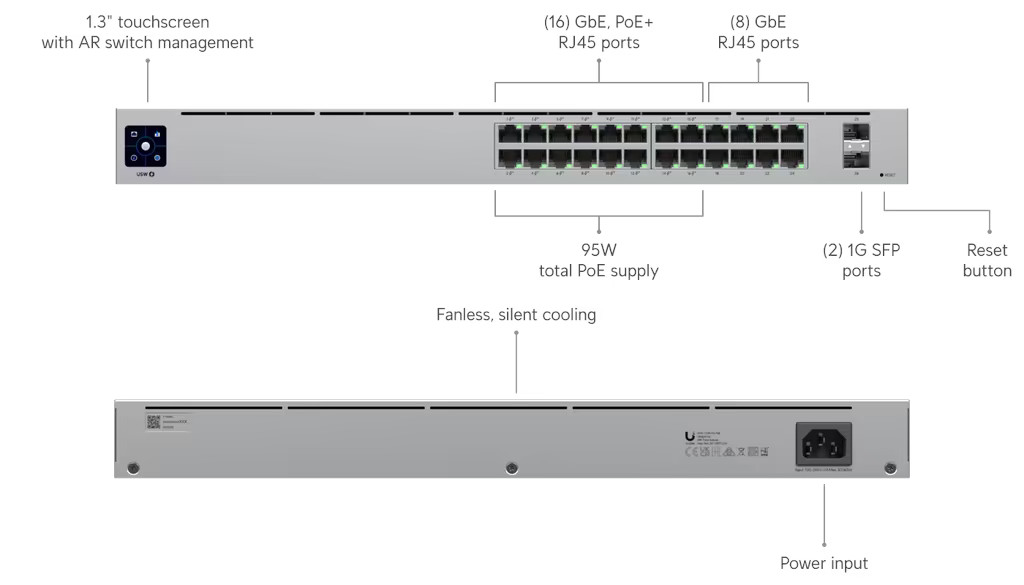

Main features
- 24x 1Gb/s Ethernet port
- 16 ports with PoE/PoE+ support
- 2x 1Gb/s SFP cages
Technical specification
| Meccanico | |
|---|---|

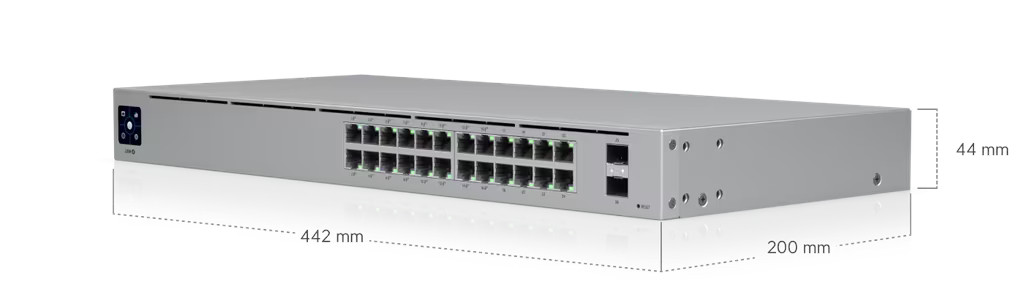

| Dimensioni | 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7") |
| Peso | Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb) |
| Materiale dell'involucro | SGCC steel |
| Hardware | |
| Interfaccia di gestione | Ethernet In-Band |
| Interfaccia di rete | (24) GbE RJ45 ports (2) 1G SFP ports |
| Interfaccia PoE | (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Metodo di alimentazione | Universal input, 100—240V AC, 50/60 Hz |
| Alimentazione | AC/DC, internal, 120W |
| Intervallo di tensione supportato | 100—240V AC |
| Consumo massimo di energia | 25W (Excluding PoE output) |
| Totale PoE disponibile | 95W |
| Max. PoE wattage per port by PSE | PoE+: 32W |
| Intervallo di tensione Modalità PoE | PoE: 44—57V PoE+: 50—57V |
| Protezione ESD/EMP | Air: ± 16kV, contact: ± 12kV |
| Display LCM | (1) 1.3" touchscreen |
| Pulsante | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Temperatura di esercizio | -5 to 40° C (23 to 104° F) |
| Umidità di esercizio | 10 to 90% noncondensing |
| Certificazioni | CE, FCC, IC |
| LED | |
| Sistema | Status |
| Ethernet | PoE Speed/link/activity |
| SFP | Link/activity |
| Requisiti per l'applicazione | |
| Rete UniFi | Version 7.2.94 and later |
| SKU del produttore | USW-24-POE |
|---|---|
| EAN | 817882028554 |
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 2 |
| GPSR contatto | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
