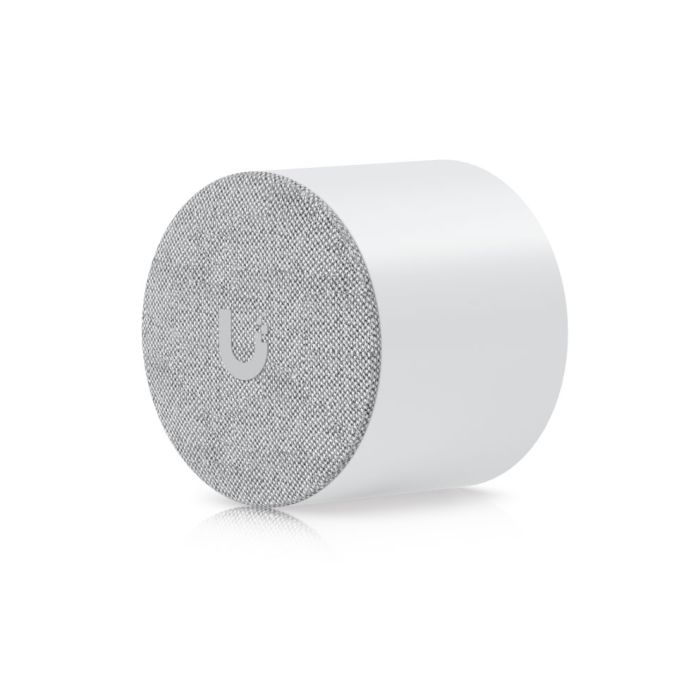

Ubiquiti PoE Smart Chime (UACC-Chime-PoE)
The Ubiquiti PoE Smart Chime is a PoE-powered indoor doorbell offering 80 dB loudness and full integration with UniFi Protect and Access systems. Its wired connectivity ensures instant notification of visitors, eliminating Wi-Fi coverage issues.
Ubiquiti PoE Smart Chime – Wired Indoor PoE Chime
Ubiquiti PoE Smart Chime (UACC-Chime-PoE) is a plug-and-play indoor chime designed as a direct expansion for UniFi Protect video doorbells and UniFi Access control terminals. The device emits sound up to a maximum volume of 80 dB using a built-in speaker and buzzer. The module alerts household members or office staff of visiting guests, eliminating the need to rely solely on smartphone notifications.
Unlike standard wireless chimes, this model communicates and receives power exclusively via a single Ethernet cable (PoE standard, 44–57V DC voltage). The use of a 10/100 MbE port with a maximum power consumption of only 3W guarantees operational stability without range issues or interference typical of Wi-Fi networks. The device is ready to work right out of the box – once plugged into a PoE switch, it is instantly discovered by the controller and ready for assignment in the UniFi Protect or UniFi Access applications.
The chime's construction is based on polycarbonate as well as aluminum and zinc alloys. The module is additionally equipped with a multi-color RGBW LED status indicator and industrial electrostatic discharge protection (ESD up to ± 8kV in air). The set includes adapters allowing both quick surface mounting and discreet flush mounting to align the device flush with the wall surface. The chime is intended exclusively for indoor use.
Key Features:
-
Purpose: Indoor chime for the UniFi ecosystem.
-
Integration: Native compatibility with UniFi Protect (doorbells) and UniFi Access (access control) systems.
-
Power and Communication: Powered via twisted-pair cable (PoE 44–57V DC); built-in 10/100 MbE port.
-
Power Consumption: Maximum 3 W.
-
Signaling: Built-in speaker with volume up to 80 dB and multi-color LED indicator (R/G/B/W).
-
Hardware Protection: Electrostatic discharge protection (ESD: Air ± 8kV, Contact ± 4kV).
Compatible Devices:
Technical Specifications
| Network Interface | 10/100 MbE Port |
| Speaker | Yes |
| Buzzer | Yes |
| LEDs | R/G/B/W |
| Buttons | (1) Factory reset |
| ESD Protection | Air: ±8kV, Contact: ±4kV |
| NDAA Compliant | Yes |
| App Requirements (Web) | UniFi Protect, UniFi Access |
| App Requirements (Mobile) | UniFi Protect (iOS™ and Android™) |
Power |
|
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 3W |
Other |
|
| Dimensions | Device: ⌀62 x 54 mm (⌀2.5 x 2.1") Flush Mount: ⌀89 x 63.1 mm (⌀3.5 x 2.5") Surface Mount: ⌀62 x 20.2 mm (⌀2.5 x 0.8") |
| Weight | Device: 158 g (5.6 oz) Flush Mount: 91 g (3.2 oz) Surface Mount: 28 g (1 oz) |
| Housing Material | Polycarbonate, aluminum alloy |
| Mounting Material | Polycarbonate, zinc alloy |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% (non-condensing) |
| Certifications | CE, FCC, IC |
| Manufacturer SKU | UACC-Chime-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
