Ubiquiti Intercom - UA-Intercom
| Manufacturer SKU | UA-Intercom |
|---|---|
| Manufacturer | Ubiquiti |
Ubiquiti Intercom (UA‑Intercom) is a weatherproof, PoE-powered indoor/outdoor intercom terminal with integrated camera, NFC/PIN/QR code access, two-way audio, and 7″ capacitive touchscreen.
Accessories and add-ons:
UBIQUITI Intercom (UA‑Intercom)
Product Description

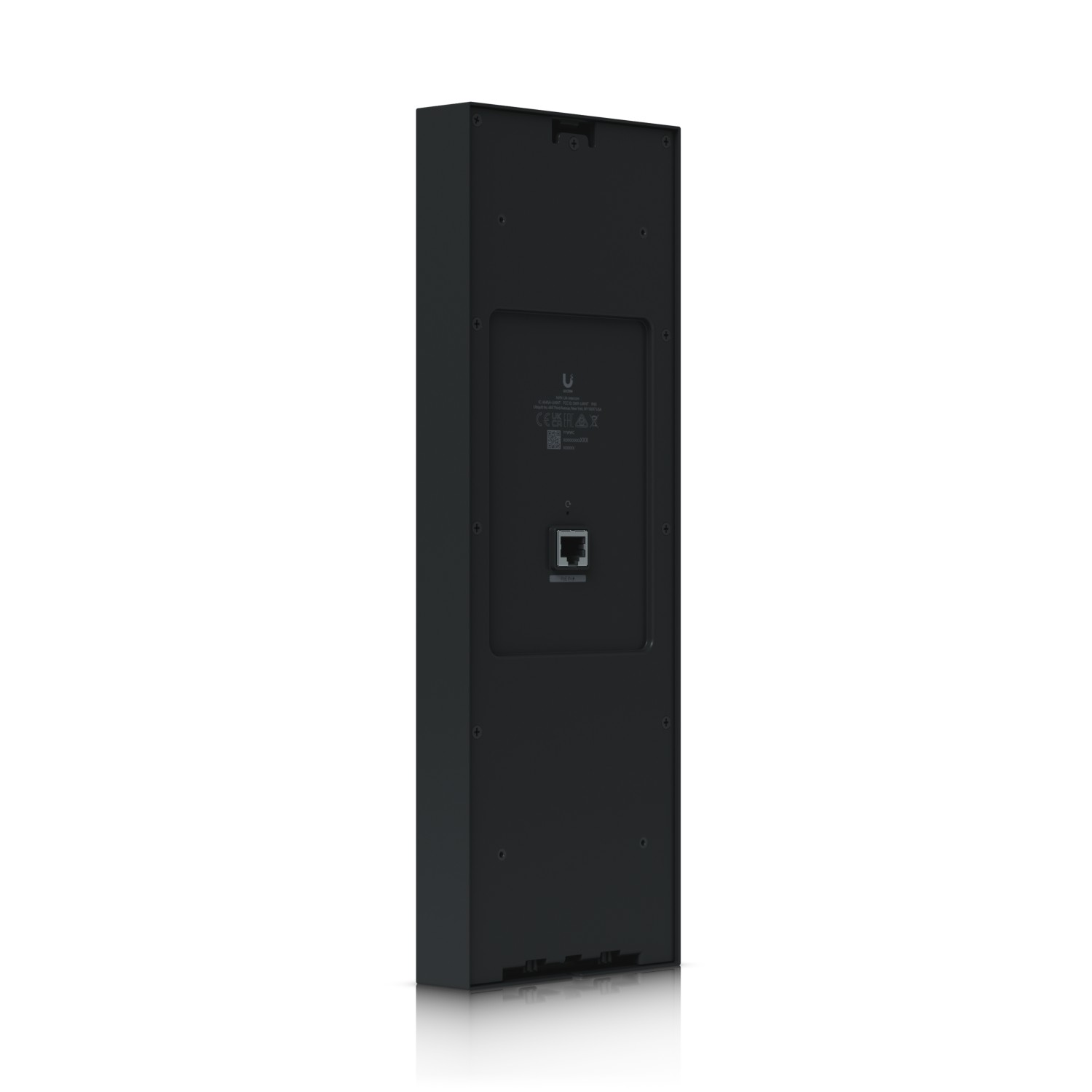

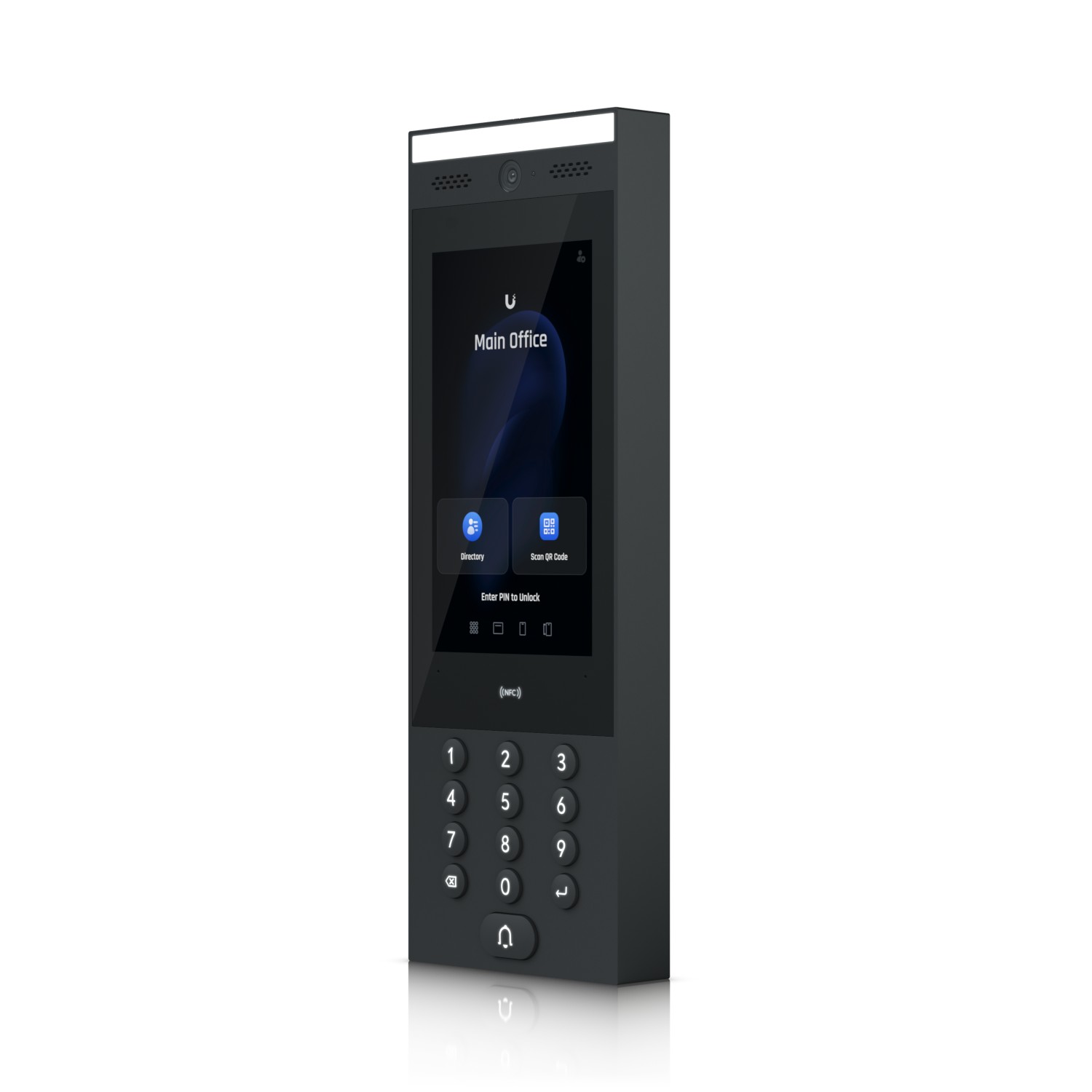

Ubiquiti Intercom is an indoor/outdoor terminal for managing building entry. It supports multiple access options: NFC card, UniFi Identity mobile app, PIN code, and QR code. The device pairs with multiple Intercom Viewers for remote entry control via the UniFi Access system.
Key Features
- Supports NFC, PIN, QR code, mobile credentials
- Built-in 8 MP camera with 118° diagonal field of view
- 7″ 1024 × 600 capacitive touchscreen (up to 1000 nits)
- Two-way intercom, includes doorbell
- Weatherproof IP65 rated for −30 °C to 60 °C operation
- PoE-powered via 48 V DC, max power consumption 13 W
- Mounts on wall or gooseneck pedestal; brackets and sunshield optional
- Meets UL 294 Level I physical security standards
Technical Specifications
| Dimensions | 324.8 × 113.7 × 28.3 mm |
| Weight | 965 g (device) + 445 g (bracket) |
| Enclosure | Aluminum, PC, glass |
| Networking | 1× GbE RJ45, PoE 48 V |
| Connectivity | BLE 4.2, NFC (ISO 14443A/B, 15693, MIFARE, FeliCa) |
| Camera | 3264 × 2448 px, 79.4° x 97.5° fields of view |
| Display | 177 mm, 1024 × 600, 1000 nits, capacitive multi-touch |
| Audio | Built-in microphone and 2 W speaker |
| NFC Range | ≤ 30 mm at 13.56 MHz |
| Environmental | Device: −30–60 °C; display −25–60 °C; 5–90 % RH |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
Applications and Compatibility
Ideal for residential and commercial entry control. Integrates with UniFi Access Hubs and Intercom Viewers. Supports weatherproof outdoor installation with optional sunshield.
Summary
Ubiquiti Intercom provides a versatile, secure entry terminal featuring multiple authentication methods, high-resolution camera, indoor/outdoor durability, and smooth integration with the UniFi Access ecosystem.
