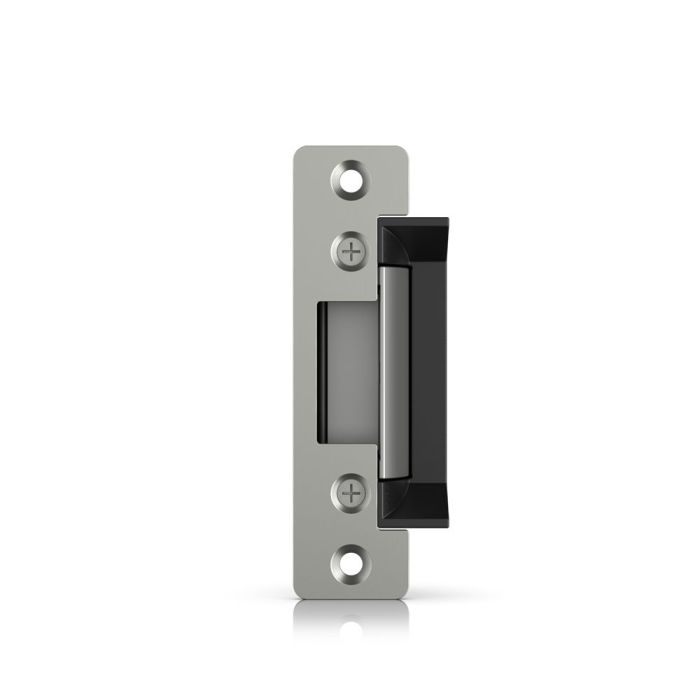

Ubiquiti Electric Lock - UACC-Lock-Strike-Secure-15mm
€88.77 €72.17
In stock
SKU
UBIQUITI-UACC-LOCK-STRIKE-SECURE-15MM
Ubiquiti UA-Lock-Electric (UACC-Lock-Strike-Secure-15mm) – Fail-secure electric lock controlled by the UniFi Access Hub.
Accessories and add-ons:
Ubiquiti Electric Lock – UACC-Lock-Strike-Secure-15mm
Fail-secure electric strike lock compatible with UniFi Access Hub. Designed for single-door installations with wooden, steel, or aluminum frames. The holding force is 1,200 kg. The lock connects to the door relay on the UA‑Hub (NO, COM terminals). Both short and long faceplates are included, matching the dimensions listed in the technical specification.
The device is integrated into the UniFi Access ecosystem and is compatible with Ubiquiti door controllers such as UA‑Hub‑Door, EAH‑8, UA‑Hub‑Door‑Mini, UA‑Ultra, and UA‑Hub‑Gate. The lock is intended for standard indoor environments.
Technical Specifications UACC-Lock-Strike-Secure-15mm
| Identification | |
|---|---|
| Model | UACC-Lock-Strike-Secure-15mm |
| SKU | UACC-Lock-Strike-Secure-15mm |
| Dimensions and Housing | |
| Dimensions | Lock body: 80 × 40 × 35 mm (3.2 × 1.6 × 1.4") Short faceplate: 124 × 32 × 3 mm (4.9 × 1.3 × 0.1") Long faceplate: 202 × 36 × 3 mm (7.9 × 1.4 × 0.1") |
| Weight | Lock body: 185 g (6.5 oz) Short faceplate: 50 g (1.8 oz) Long faceplate: 130 g (4.6 oz) |
| Housing Material | Lock body: zinc alloy; faceplate and latch: stainless steel |
| Electrical and Mechanical | |
| Holding Force | 1,200 kg (2,645 lb) |
| Type | Fail‑secure; single door |
| Wiring Connection | Connect two screw terminals separately to the powered door relay on UA‑Hub: NO, COM |
| Current Draw | 400 mA ±10% |
| Supported Voltage | 12 V DC |
| Door Compatibility | Wood, steel, aluminum |
| Terminals | + and − |
| Environmental | |
| Operating Temperature | −10 to 45 °C (14 to 113 °F) |
| Operating Humidity | 5 to 90% non‑condensing |
| Compliance and Certifications | |
| NDAA Compliance | Yes |
| Certifications | FCC, IC, CE |
| Manufacturer SKU | UACC-Lock-Strike-Secure-15mm |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 16 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
