Ubiquiti U7 Outdoor - External Wi-Fi AP 7 (U7-Outdoor)
| Manufacturer SKU | U7-Outdoor |
|---|---|
| EAN | 810084695531 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 6 |
The Ubiquiti U7 Outdoor is an outdoor WiFi 7 access point (IPX6 rated) with a 2.5 GbE port, providing coverage of up to 465 m² and serving over 250 simultaneous clients.
Accessories and add-ons:
Ubiquiti U7 Outdoor - Outdoor WiFi 7 Access Point with Integrated Directional Antenna
Ubiquiti U7 Outdoor (U7-Outdoor) is an outdoor access point operating in the WiFi 7 (802.11be) standard. The device is equipped with a 2.5 GbE RJ45 port, which allows for radio throughput of up to 4.3 Gbps in the 5 GHz band (with a channel width of up to 240 MHz) and 688 Mbps in the 2.4 GHz band. The module supports 4 data streams (2x2 MU-MIMO for both bands) and can stably serve over 250 clients in an area of up to 465 m².

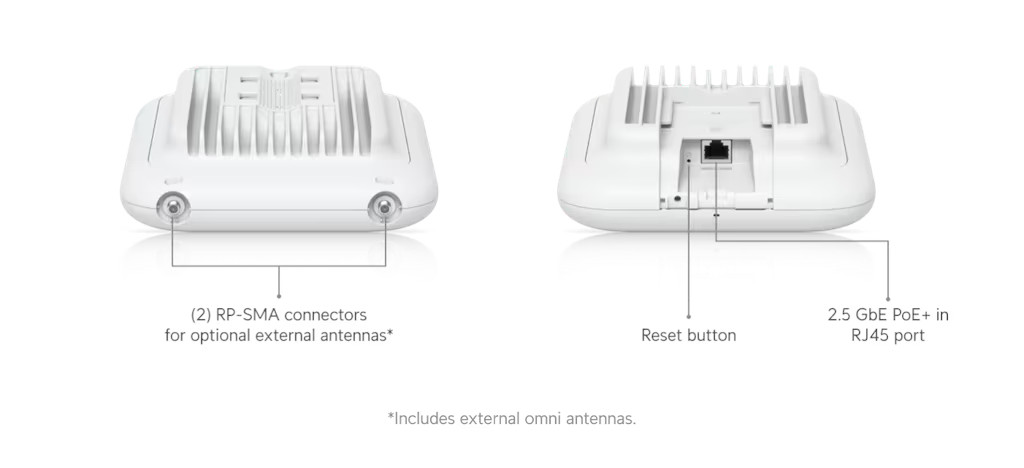

The access point is constructed of an aluminum alloy and UV-stabilized polycarbonate. The housing is IPX6-rated, enabling operation in harsh weather conditions at temperatures ranging from -30°C to 60°C. The model has a built-in directional antenna (45° beam for 5 GHz and 90° beam for 2.4 GHz) and two RP-SMA connectors for external omnidirectional antennas (included). Power is supplied via the PoE+ standard (maximum power consumption is 19W), and the included brackets allow for wall or pole mounting.
Key Features
-
Wireless Standard: WiFi 7 (802.11be), 2x2 MU-MIMO (2.4 GHz and 5 GHz).
-
Network Interface: 1x port RJ45 2.5 GbE.
-
Antenna System: Built-in directional antenna (12.5 dBi / 8 dBi) and 2x RP-SMA connectors for included omnidirectional antennas.
-
Operating Power Supply: PoE+ (supported range 42.5–57V DC), maximum power consumption 19W.
-

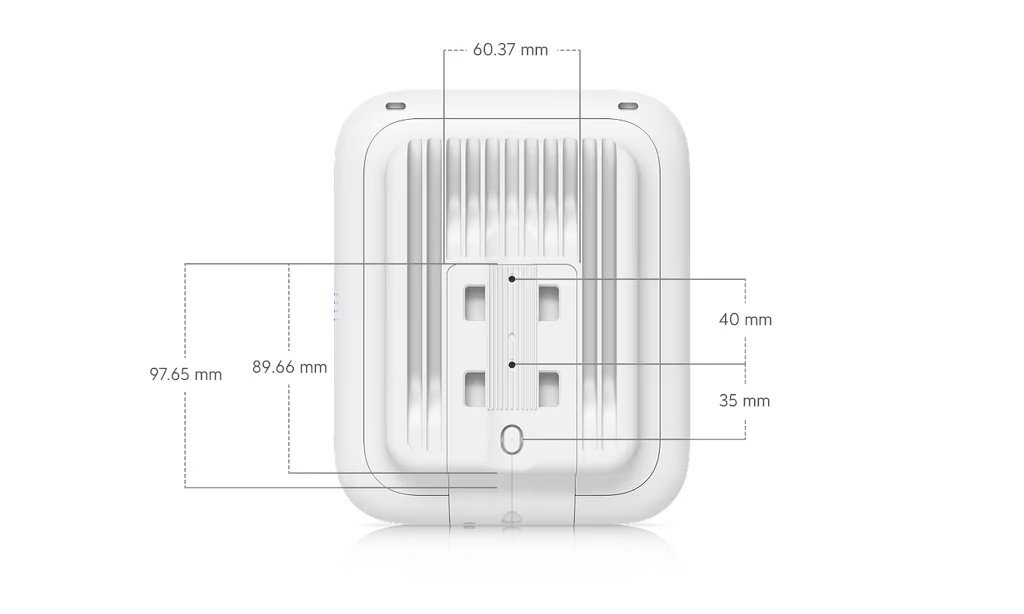

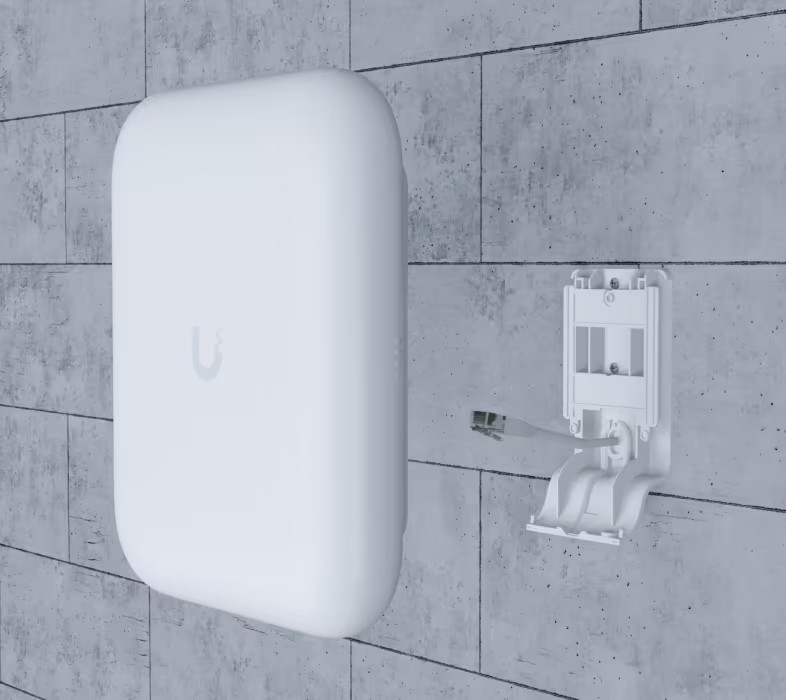

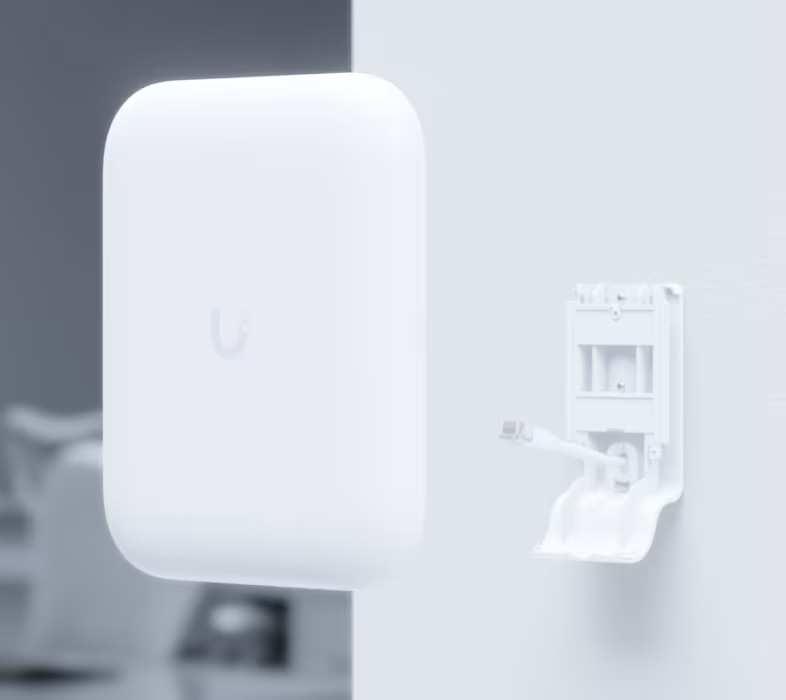

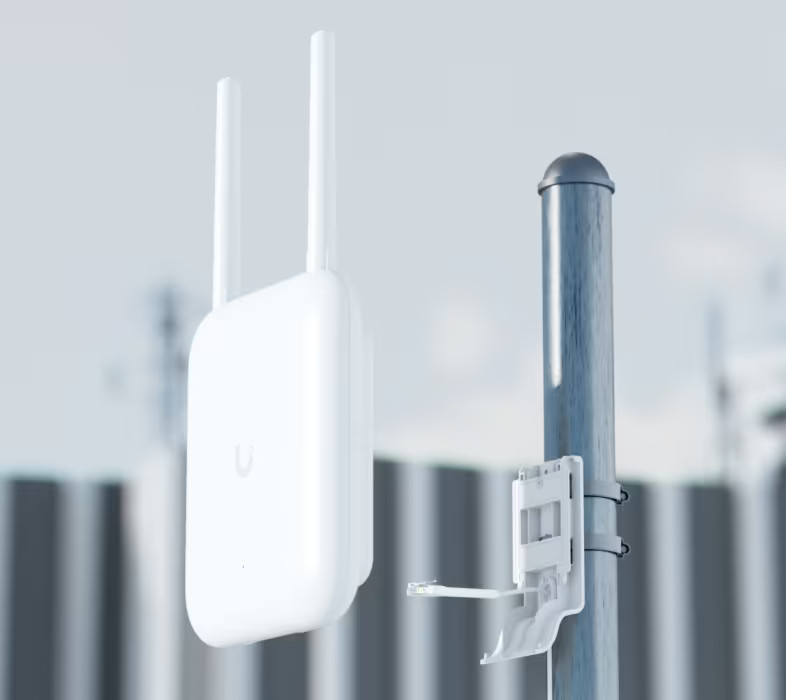

Mounting Options: Wall or pole-mounted (for pipes 25-60 mm diameter), accessories included.
Technical Specifications
| WiFi Standard | WiFi 7 |
| Data Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Maximum Number of Clients | 250+ |
| Uplink | 2.5 GbE |
| Power Method | PoE+ |
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Maximum Data Rate | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: Indoor Directional: 12.5 dBi, 45° x 45° | Outdoor Omnidirectional: 4 dBi, 360° x 30° 2.4 GHz: Indoor Directional: 8 dBi, 90° x 90° | Outdoor Omnidirectional: 3 dBi, 360° x 30° |
| Maximum Transmit Power (TX) | 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Maximum Number of BSSIDs | 8 per radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Wireless Features and Radio Management | Wireless Meshing Band Steering 802.11v BSS Transition Management 802.11r Fast Roaming 802.11k Radio Resource Management (RRM) Advanced Radio Management Passpoint (Hotspot 2.0) |
| Hotspot Portal and Security | Custom Branding Landing Page Voucher Authentication Paid Access External Portal Server Support Password Authentication Guest Network Isolation Private Key Share Key (PPSK) WiFi Rate Limiting Client Device Isolation WiFi Schedules RADIUS over TLS (RadSec) Dynamic VLAN assigned via RADIUS |
| Maximum Power Consumption | 19W |
| Supported Voltage Range | 42.5–57V DC |
| Network Interface | (1) RJ45 Port1/2.5 GbE |
| Wind Load | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Mast Mount Diameter | 1–2.36" (25–60 mm) |
| Antennas and Connectors | (1) Internal Directional Antenna (2) External Omnidirectional Antennas (2) RP-SMA Connectors for External Antennas |
| Antenna Harness | 5 GHz: 45° 2.4 GHz: 90° |
| Management | Ethernet |
| LEDs | System: (1) Power: White/Blue, (1) System: White/Blue Mesh Signal: (4) Blue |
| Channel Width | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Operating Frequency (US/CA) | 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz |
| Operating Frequency (Worldwide) | 2400 - 2483.5 MHz 5150 - 5850 MHz |
| Requirements Application | UniFi Network: Version 8.2.93 and later |
Other |
|

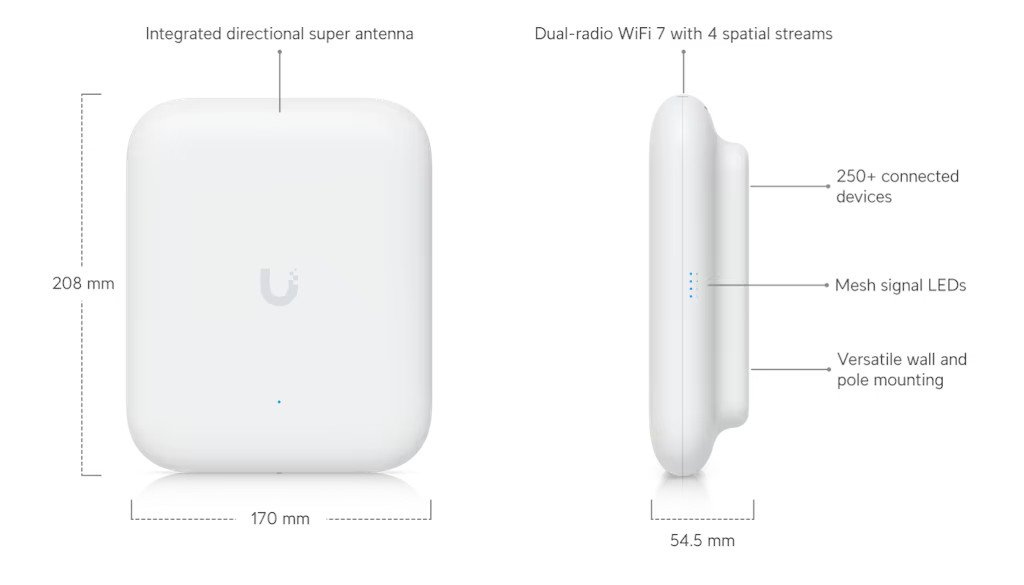

| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| Weight | 1.2 kg (2.6 lb) |
| Mounting | Wall-mount, pole-mount (brackets included) included) |
| Ingress Protection Class | IPX6 |
| Housing Material | UV-resistant polycarbonate, aluminum alloy |
| Bracket Material | Polycarbonate, SGCC steel |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% (without condensation) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 08999-24-08356 |
| Manufacturer SKU | U7-Outdoor |
|---|---|
| EAN | 810084695531 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 6 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
