Ubiquiti U7 Outdoor (U7-Outdoor)
226,86 € 184,44 €
Disponible
SKU
UBIQUITI-U7-OUTDOOR
| SKU del fabricante | U7-Outdoor |
|---|---|
| EAN | 810084695531 |
| Fabricante | Ubiquiti |
| Piezas en embalaje colectivo | 6 |
U7-Outdoor AP WiFi 7 para todo clima con 4 transmisiones espaciales, una súper antena direccional integrada y opciones de montaje versátiles.
U7 Outdoor (U7-Outdoor)
AP WiFi 7 para todo clima con 4 transmisiones espaciales (4x4 MU-MIMO), una súper antena direccional integrada y opciones de montaje versátiles. Velocidad máxima posible de 5 GB/s. U7-Outdoor funciona en 2,4 GHz y 5 GHz.
Principales características:
- Wi-Fi 7
- 4 flujos espaciales (4x4 MU-MIMO)
- Cobertura de espacio abierto de 465 m² (5000 pies²) con la súper antena direccional integrada
- Ancho de haz de antena ajustable por software para una cobertura equilibrada con las antenas omni incluidas
- Más de 200 dispositivos conectados
- Alimentado mediante PoE+
- Enlace ascendente de 2,5 GbE

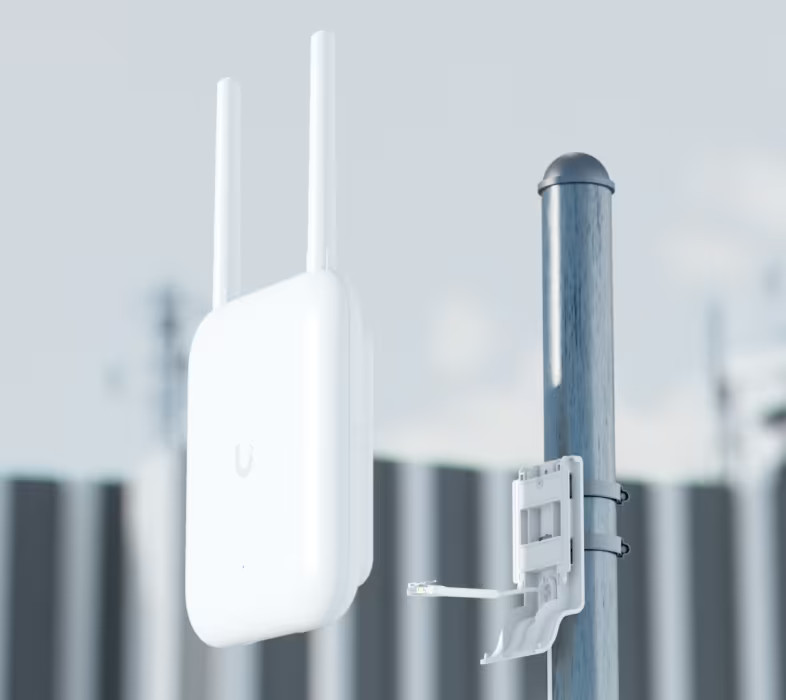

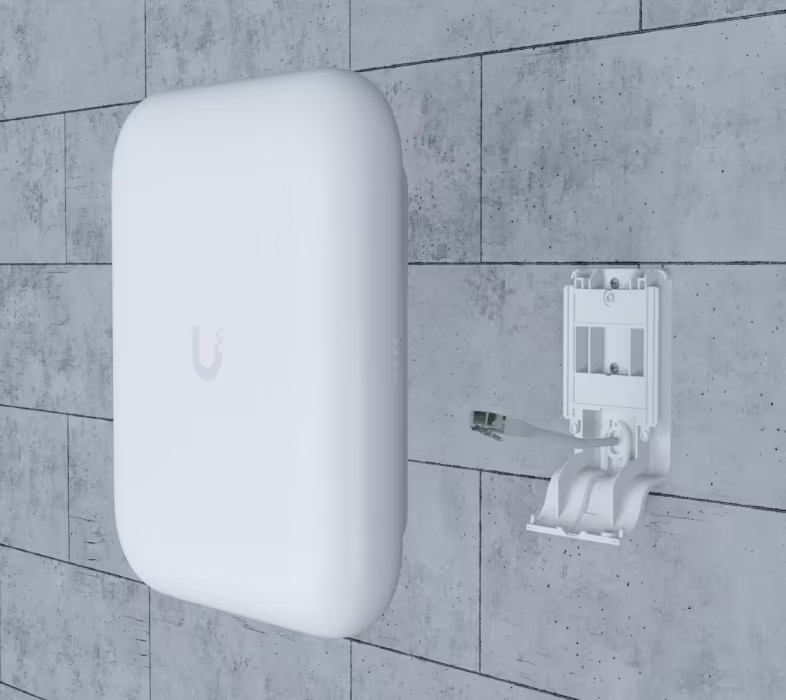

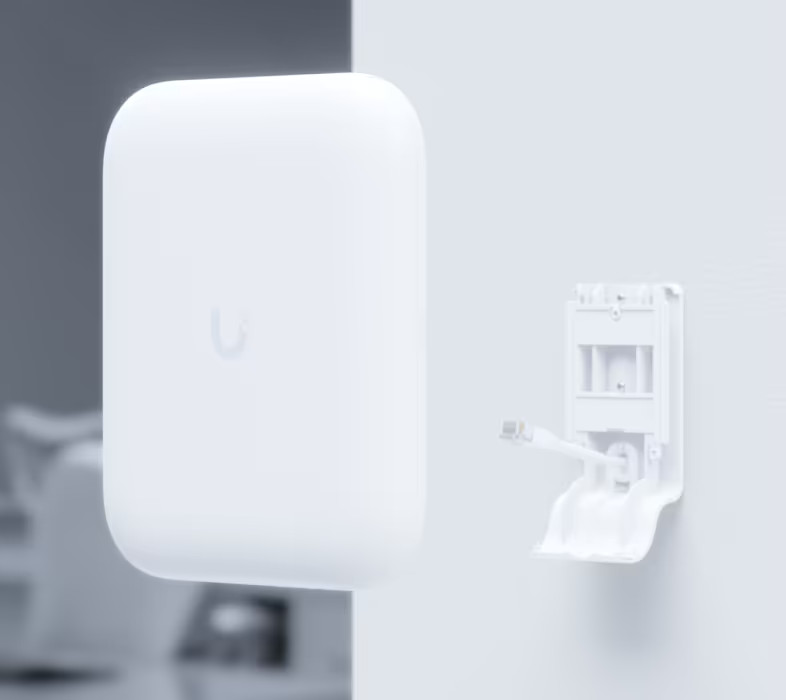

Montaje versátil en pared y poste
Resistente a la intemperie (expuesto al aire libre)
Especificaciones técnicas
| Mechanical | |
|---|---|

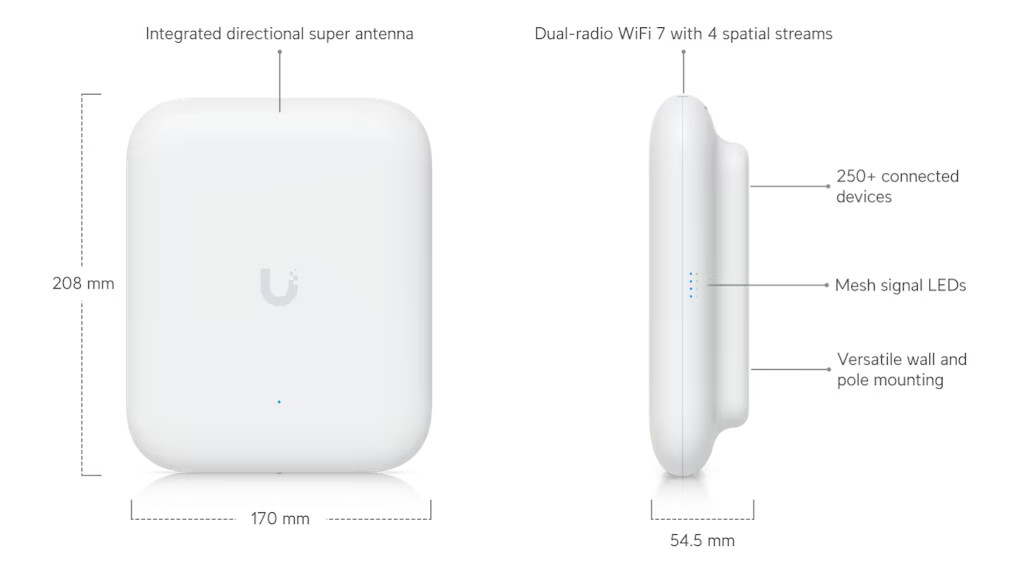

| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure material | UV-stabilized polycarbonate, aluminum alloy |
| Mount material | Polycarbonate, SGCC steel |
| Pole mount diameter | 25–60 mm (1–2.36") on pipe outer diameter |
| Wind survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 19W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
23 dBm 26 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 2 x 2 – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps 4324 Mbps – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
Directional internal: 8 dBi / External omni: 3 dBi Directional internal: 12.5 dBi / External omni: 4 dBi – |
| Antenna beamwidth 2.4 GHz 5 GHz 6 GHz |
90° 45° – |

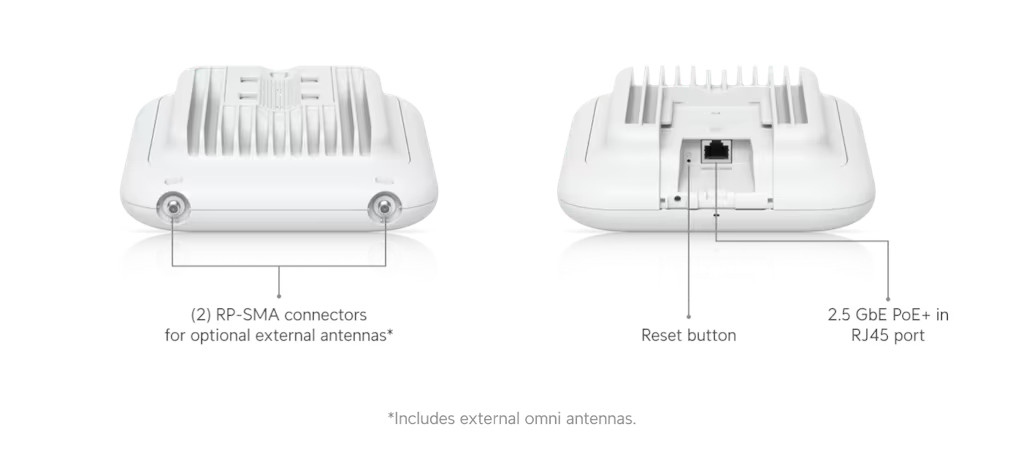

| Antennas | (1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| SKU del fabricante | U7-Outdoor |
|---|---|
| EAN | 810084695531 |
| Fabricante | Ubiquiti |
| Piezas en embalaje colectivo | 6 |
| GPSR contacto | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
