Ubiquiti Motion Sensor (USL-Motion)
| Manufacturer SKU | USL-Motion |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti Motion Sensor is a wireless motion sensor with a range of up to 2 km. It offers up to 6 years of battery life, pet immunity, and full integration with UniFi Protect, providing discreet and reliable indoor security.
Accessories and add-ons:
Ubiquiti Motion Sensor – Wireless Motion Sensor

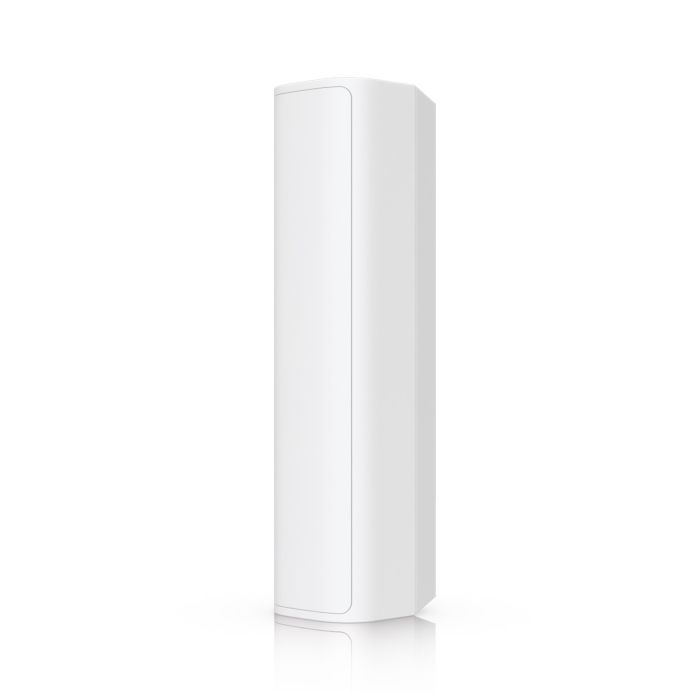

Ubiquiti Motion Sensor (USL-Motion) is a wireless motion sensor designed for integration with the UniFi Protect ecosystem. The device offers two detection modes depending on the mounting method. Horizontal mounting monitors the immediate surroundings at a distance of up to 1.5 meters, while vertical mounting offers a range of up to 6 meters and has a built-in pet immunity function. This significantly reduces the risk of false alarms when installed in a home with pets.
The sensor is equipped with the SuperLink wireless communication protocol. This technology (operating in Europe at a frequency of 865.1–869.5 MHz) allows for a signal range of up to 2 kilometers. Furthermore, the highly energy-efficient interface allows the device, powered by a single CR123A lithium battery (power consumption of 22.6 mW), to operate flawlessly for up to 6 years on a single cell.

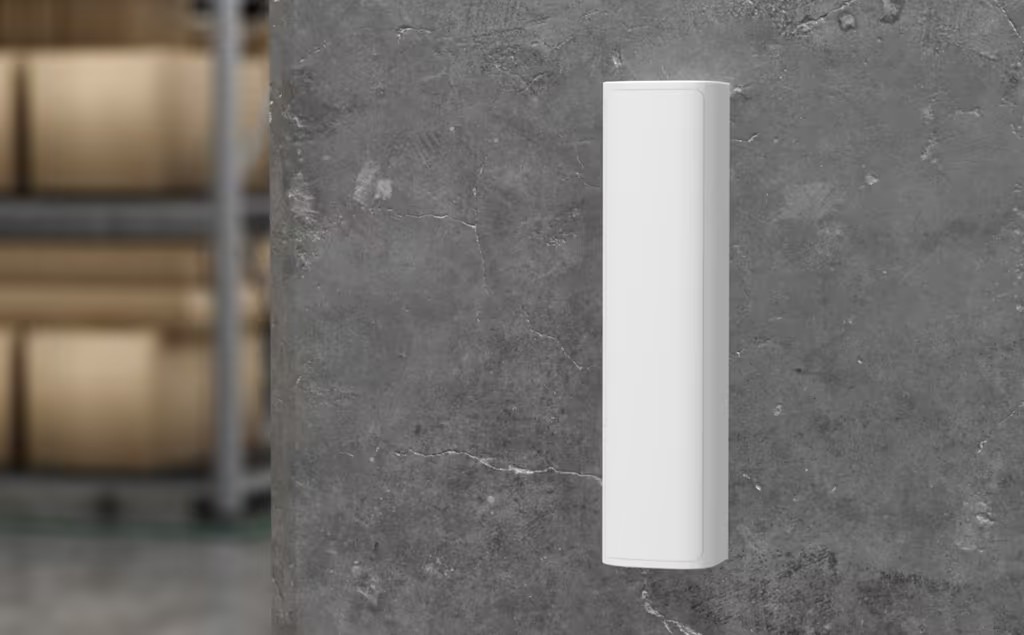

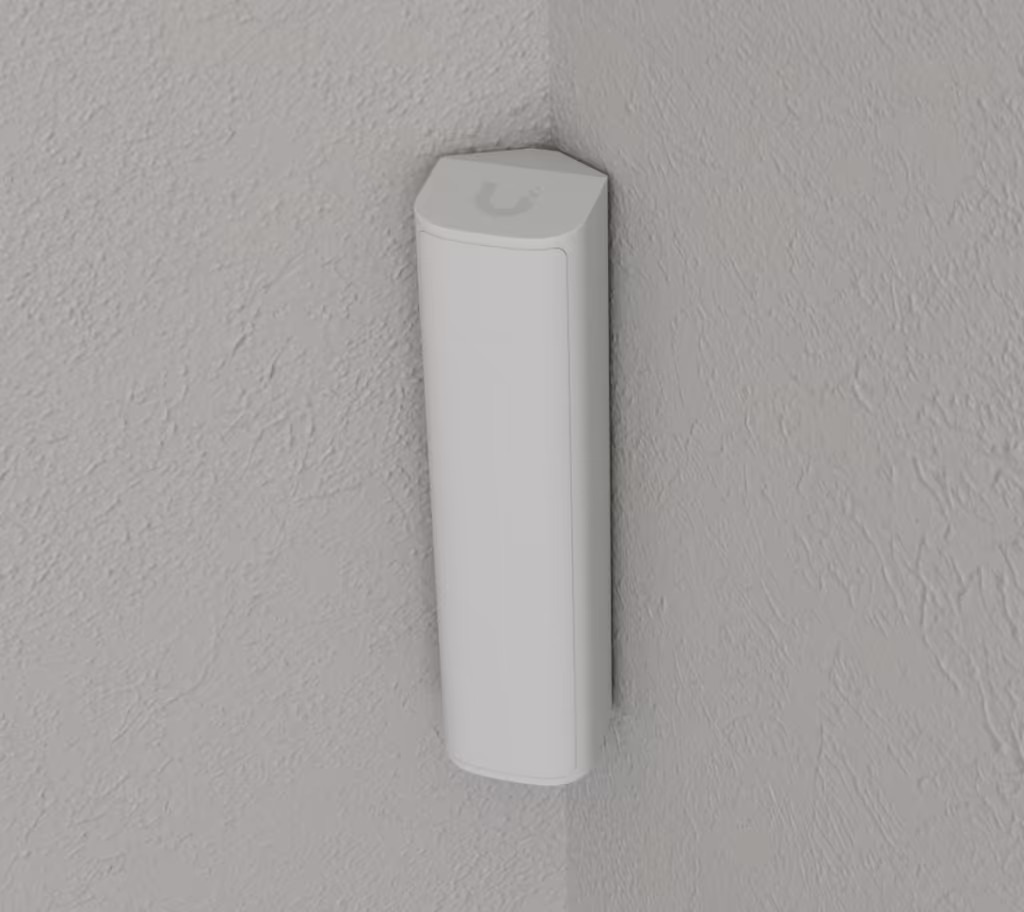

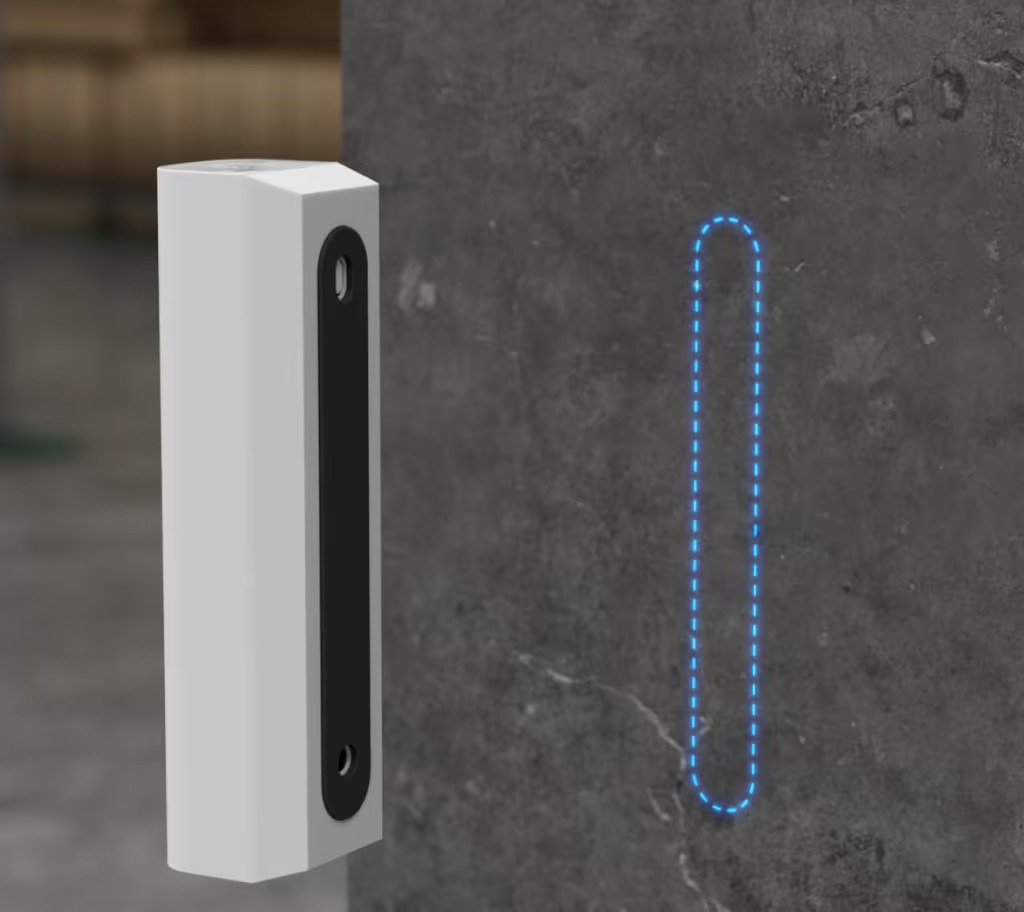

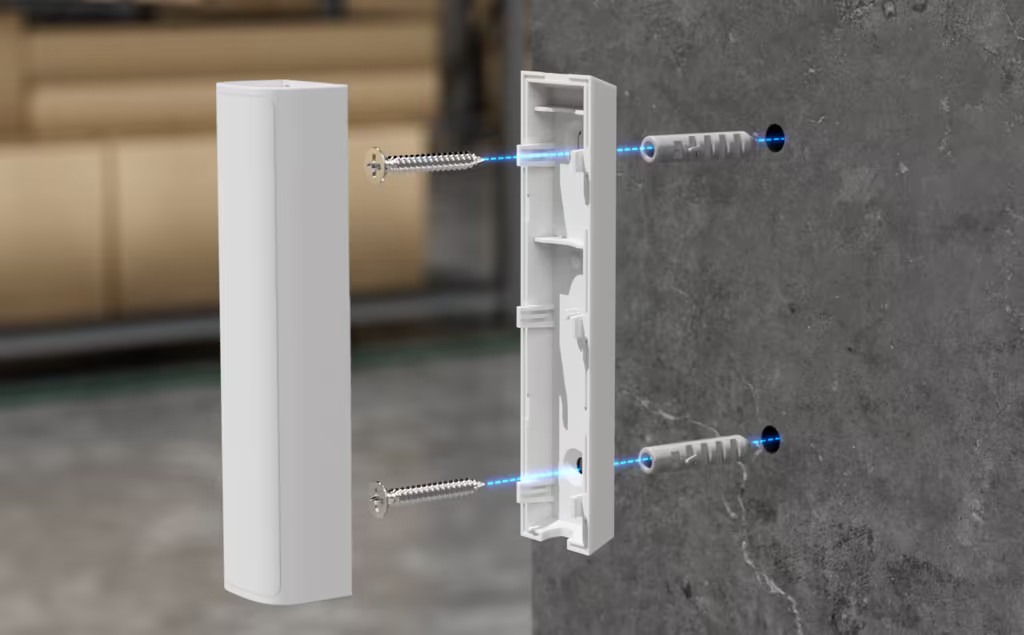

The device's design allows for discreet installation. The slim, polycarbonate housing weighs just 45 grams and measures just over 9 centimeters long. The kit includes dedicated adapters for classic (flat wall) or corner mounting using adhesive tape or screws. Additionally, the module is equipped with a physical tamper switch that will immediately inform the system of any unauthorized attempt to remove the sensor.
Key features:
-
Purpose: Indoor motion sensor for the UniFi Protect system.
-
Detection technology: Dual PIR sensor: horizontal (range up to 1.5 m) and vertical (range up to 6 m with pet-ignoring function).
-
SuperLink Technology: Wireless interface providing a range of up to 2 km.
-
Power and Operating Time: 1x CR123A lithium battery guaranteeing up to 6 years of continuous operation (max. power consumption 22.6 mW).
-
Hardware Security: Built-in tamper switch that responds to tampering attempts.
Technical Specifications
| Connectivity | SuperLink |
| Operating Frequency | EU: 865.1–869.5 MHz US: 915.6–927.6 MHz |
| Antenna Gain (SuperLink) | 1 dBi |
| Max. TX (SuperLink) power | 14 dBm |
| Max. Range (SuperLink) | 2 km (1.2 mi) |
| Sensor Range | Horizontal Mounting: Range up to 1.5 m (4.9 ft) Vertical Mounting: Range up to 6 m (19.7 ft) with Pet Immunity |
| Buttons | (1) Factory Reset, (1) Function Button, (1) Tamper Switch |
| LED Indicators | (1) Status: R/B/W, (1) Signal: B/R |
| NDAA Compliant | Yes |
Software |
|
| UniFi App Suite | Protect |
| App Requirements (Web) | UniFi Protect |
| App Requirements (Mobile) | UniFi Protect (iOS™ and Android™) |
Power |
|
| Power Method | CR123A Lithium Battery |
| Battery Life | Up to 6 Years |
| Supported Voltage Range | 3V |
| Maximum Power Consumption | 22.6 mW |
Other |
|
| Dimensions | Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97") Devicewith corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1") |
| Weight | 45 g (1.6 oz) |
| Housing Material | Polycarbonate, High-Density Polyethylene (HDPE) |
| Mounting Material | Polycarbonate |
| Mounting | Adhesive or Screw Mount |
| Ambient Temperature Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| Certifications | FCC, IC, CE |
Ubiquiti Motion Sensor - Frequently Asked Questions (FAQ)
Battery life depends on how many motion events the Motion Sensor detects. At an average of 10 events per day, the battery lasts up to 6 years.
The Motion Sensor supports both vertical and horizontal mounting. For the detection range in each orientation, refer to the Installation Guide.
When mounted vertically, the Motion Sensor will not detect animals under 0.5 m tall.
The Motion Sensor normally operates in a low-power sleep mode. Pressing the function button temporarily wakes the sensor and forces it to synchronize with the SuperLink Gateway to confirm connectivity and status updates. When pressed, the sensor is also highlighted on the Devices page in UniFi Protect, making it easy to identify.
Yes. The Motion Sensor uses a replaceable CR123A battery.
