Ubiquiti SuperLink (UP-SuperLink)
| Manufacturer SKU | UP-SuperLink |
|---|---|
| Manufacturer | Ubiquiti |
Long-range wireless gateway for UniFi Protect sensors. The Ubiquiti UP-SuperLink is an advanced wireless gateway that connects up to 96 SuperLink sensors with a range of up to 2 km. It also supports up to 7 UniFi Protect devices via Bluetooth Low Energy (BLE). The device can be powered via PoE or USB-C and mounted on a wall or DIN rail.
Ubiquiti UP-SuperLink
Long-range wireless gateway for UniFi Protect Sensors
The Ubiquiti UP-SuperLink is an advanced long-range, low-latency wireless gateway designed to connect UniFi Protect sensors over extended distances. With support for up to 96 SuperLink clients and a line-of-sight range of up to 2 km, it ensures reliable communication in large areas. Additionally, it can connect up to 7 Bluetooth Low Energy (BLE) UniFi Protect sensors, enhancing network flexibility.
Key Features:
- Long-range wireless connectivity: Supports up to 96 SuperLink clients with a maximum range of 2 km.
- Dual-band operation: Integrates Bluetooth 5.2 for short-range connections and proprietary SuperLink technology for extended reach.
- Flexible power options: Powered via PoE or USB Type-C for versatile installation.
- Compact and durable design: Polycarbonate and aluminum alloy casing ensures durability in various environments.

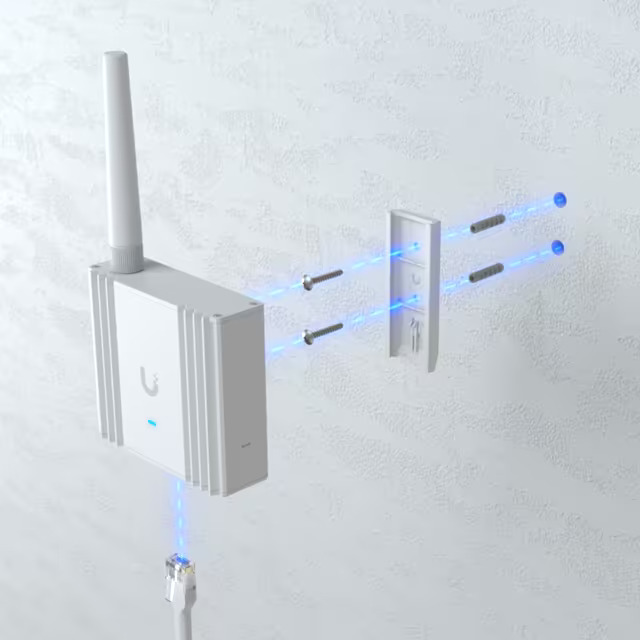

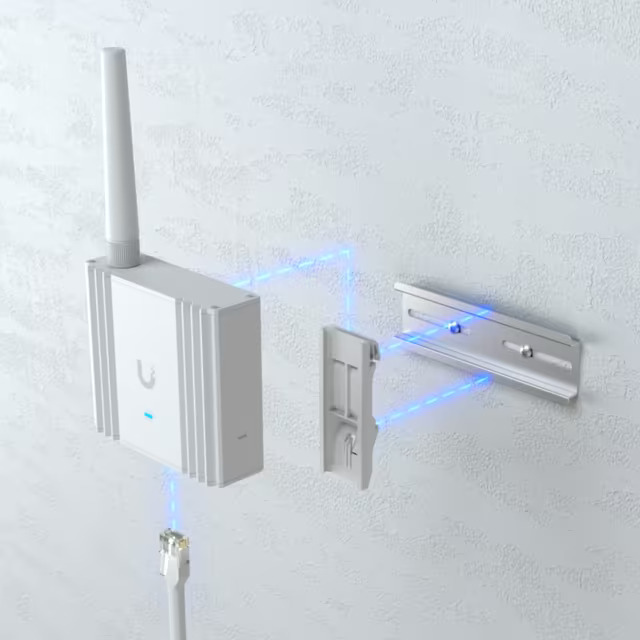

- Easy deployment: Includes wall and DIN rail mounting options for quick and simple installation.
The UP-SuperLink is an ideal solution for businesses and enterprises requiring long-range, low-latency wireless connectivity for smart sensor applications.
For more detailed information, please refer to the official datasheet.
Technical Specifications
Mechanical

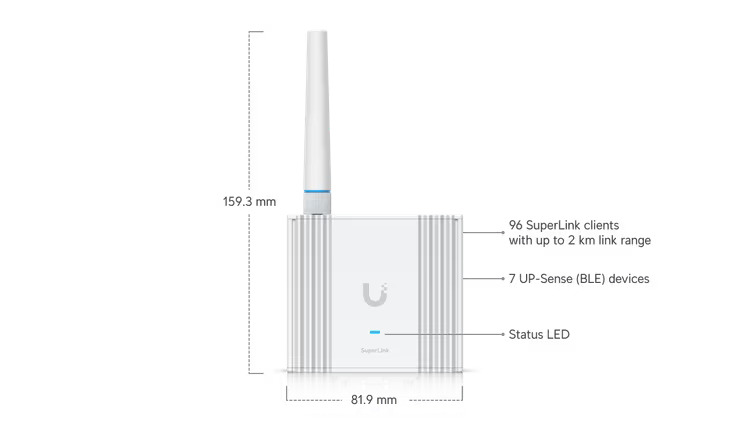

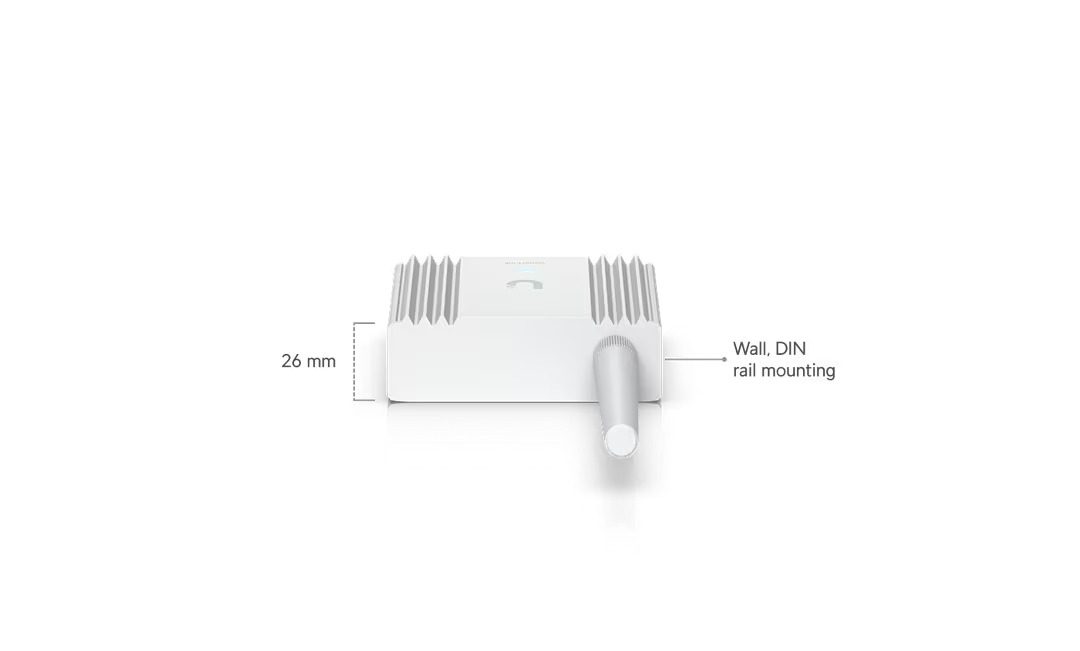

| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Weight | 179 g (6.3 oz) |
| Enclosure material | Polycarbonate, aluminum alloy |
| Mount material | Polycarbonate |
Hardware

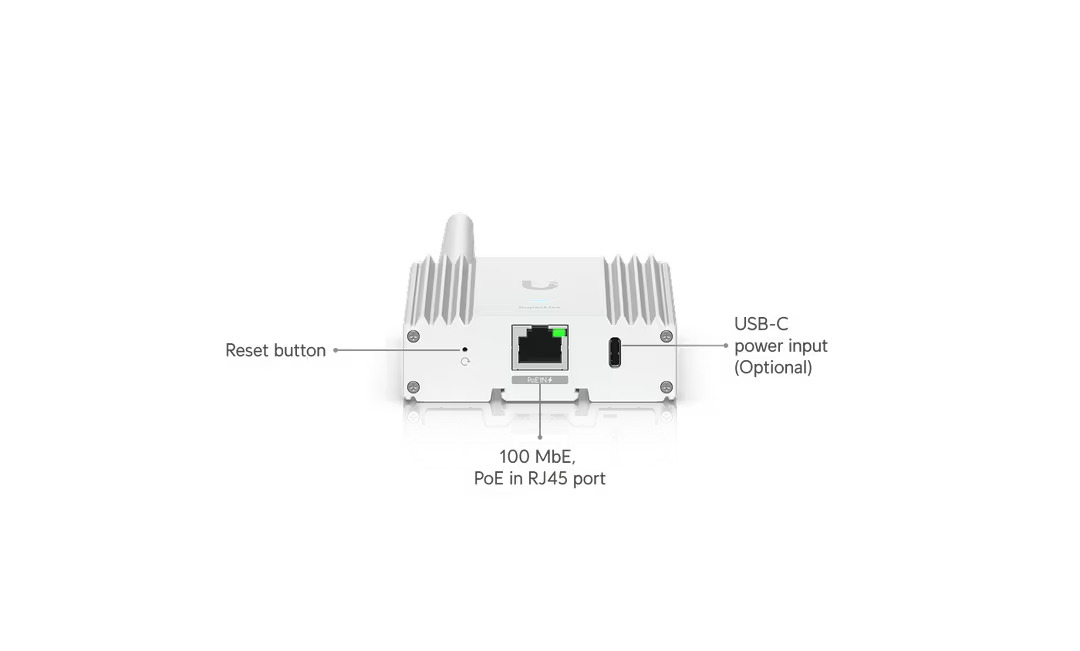

| Networking interface | (1) 10/100 MbE RJ45 port |
| Management interface | Bluetooth® 5.2 SuperLink (Proprietary) |
| Power method | PoE USB Type-C, 5V, 1A (Optional) |
| Max. power consumption | 3.4W |
| ESD/EMP protection | Air: ±8kV Contact: ±4kV |
| Antenna gain | Bluetooth: 3 dBi SuperLink: 1 dBi |
| Max. TX power | Bluetooth: 10 dBm SuperLink: 27 dBm |
| Max. client count | Bluetooth: 7 SuperLink: 96* |
| LED | (1) Blue/white |
| Button | (1) Factory reset |
| Mounting | Wall, DIN rail |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Software
| Web Application | UniFi Protect |
| Mobile Application | UniFi Protect for iOS™ and Android™ |
*SuperLink sensors are coming soon.
