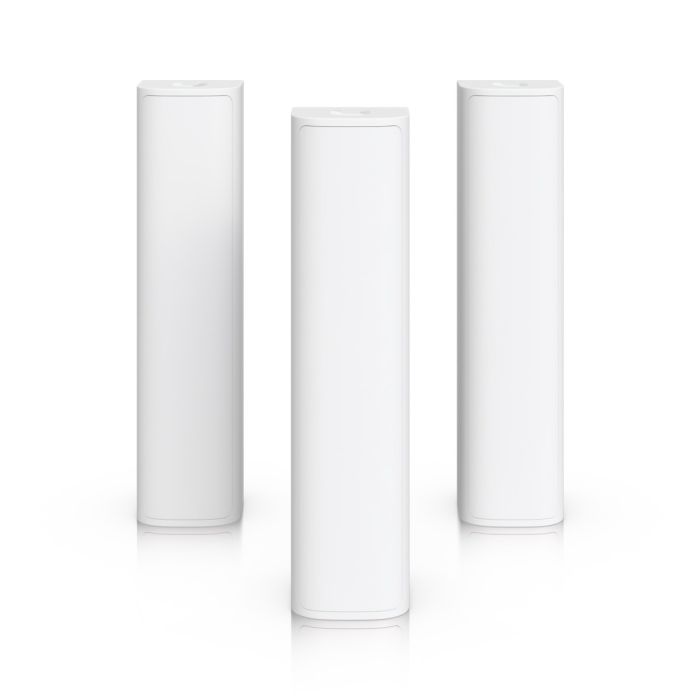

Ubiquiti Motion Sensor - Motion Sensor, 3-pack (USL-Motion-3)
| Manufacturer SKU | USL-Motion-3 |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti Motion Sensor is a wireless motion sensor with a range of up to 2 km. It offers up to 6 years of battery life, pet immunity, and full integration with UniFi Protect, providing discreet and reliable indoor security. 3-pack version.
Ubiquiti Motion Sensor – Wireless Motion Sensor (3-pack)
Ubiquiti Motion Sensor (USL-Motion-3) is a wireless motion sensor designed for integration with the UniFi Protect ecosystem. This version is a 3-pack set containing three sensors, ideal for covering multiple rooms or zones in your home or office. A single version is also available, intended for expanding an existing installation or for test deployment.
The device offers two detection modes depending on the mounting method. Horizontal mounting monitors the immediate surroundings at a distance of up to 1.5 meters, while vertical mounting offers a range of up to 6 meters and has a built-in pet immunity function. This significantly reduces the risk of false alarms when installed in a home with pets.
The sensor is equipped with the SuperLink wireless communication protocol. This technology (operating in Europe at a frequency of 865.1–869.5 MHz) allows for a signal range of up to 2 kilometers. Furthermore, the highly energy-efficient interface allows the device, powered by a single CR123A lithium battery (power consumption of 22.6 mW), to operate flawlessly for up to 6 years on a single cell.
The device's design allows for discreet installation. The slim, polycarbonate housing weighs just 45 grams and measures just over 9 centimeters long. The kit includes dedicated adapters for classic (flat wall) or corner mounting using adhesive tape or screws. Additionally, the module is equipped with a physical tamper switch that will immediately inform the system of any unauthorized attempt to remove the sensor.
Key features:
-
Purpose: Indoor motion sensor for the UniFi Protect system.
-
Detection technology: Dual PIR sensor: horizontal (range up to 1.5 m) and vertical (range up to 6 m with pet-ignoring function).
-
SuperLink Technology: Wireless interface providing a range of up to 2 km.
-
Power and Operating Time: 1x CR123A lithium battery guaranteeing up to 6 years of continuous operation (max. power consumption 22.6 mW).
-
Hardware Security: Built-in tamper switch that responds to tampering attempts.
Technical Specifications
| Connectivity | SuperLink |
| Operating Frequency | EU: 865.1–869.5 MHz US: 915.6–927.6 MHz |
| Antenna Gain (SuperLink) | 1 dBi |
| Max. TX (SuperLink) power | 14 dBm |
| Max. Range (SuperLink) | 2 km (1.2 mi) |
| Sensor Range | Horizontal Mounting: Range up to 1.5 m (4.9 ft) Vertical Mounting: Range up to 6 m (19.7 ft) with Pet Immunity |
| Buttons | (1) Factory Reset, (1) Function Button, (1) Tamper Switch |
| LED Indicators | (1) Status: R/B/W, (1) Signal: B/R |
| NDAA Compliant | Yes |
Software |
|
| UniFi App Suite | Protect |
| App Requirements (Web) | UniFi Protect |
| App Requirements (Mobile) | UniFi Protect (iOS™ and Android™) |
Power |
|
| Power Method | CR123A Lithium Battery |
| LifeBattery Life | Up to 6 years |
| Supported Voltage Range | 3V |
| Maximum Power Consumption | 22.6 mW |
Other |
|
| Dimensions | Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97") Device with corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1") |
| Weight | 45 g (1.6 oz) |
| Case Material | Polycarbonate, High-Density Polyethylene (HDPE) |
| Mounting Material | Polycarbonate |
| Mounting | Adhesive or Screw Mount |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| Certifications | FCC, IC, CE |
| Manufacturer SKU | USL-Motion-3 |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
