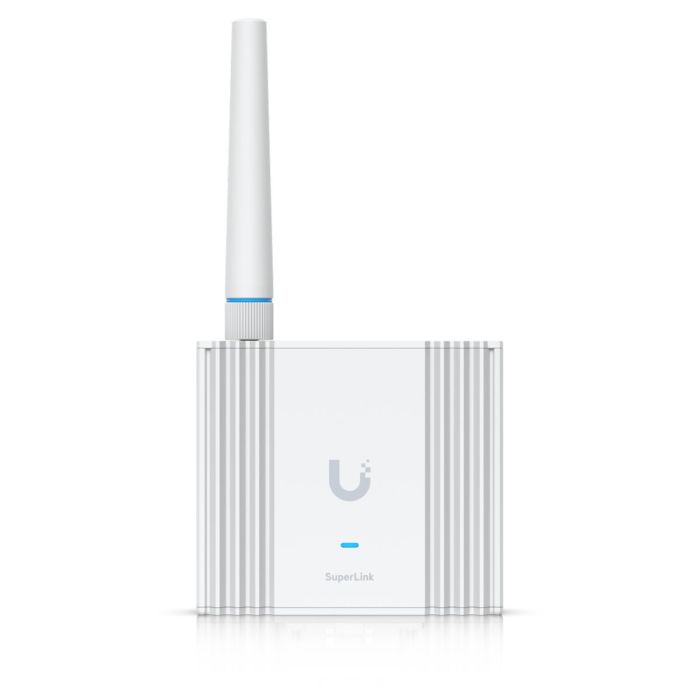

Ubiquiti SuperLink Gateway (USL-Gateway)

Ubiquiti SuperLink Gateway – Long-Range Wireless Gateway

Ubiquiti SuperLink Gateway (USL-Gateway) is a dedicated network gateway designed for the wireless integration of sensors from the UniFi Protect ecosystem. The device stands out for its support of the proprietary SuperLink protocol. Transmission in the Sub-GHz band (865.1–869.5 MHz for Europe, with 2 dBi antenna gain and 27 dBm transmit power) enables stable connections with client devices up to 2 kilometers away. The device also supports Bluetooth 5.2, allowing communication with up to 7 devices within a range of up to 100m.

The gateway can simultaneously manage up to 96 SuperLink devices. Communication with the main network is handled via a built-in Fast Ethernet (10/100 Mbps) port with an RJ45 connector. Maximum power consumption remains at just 3.4 W. Power can be supplied directly via Ethernet cabling using PoE technology or alternatively via an optional USB Type-C port (5V, 1A).

The hardware is housed in a compact (approx. 159 x 82 x 26 mm with antenna attached) and lightweight (179 g) enclosure crafted from high-quality polycarbonate and aluminum alloy. The device features a standard RP-SMA female antenna connector and is rated for indoor operation at temperatures from 0 to 40° C. The design allows for wall mounting or installation onto a standard DIN rail in a control cabinet.

Note: The UniFi Protect platform is required for full functionality and management of collected telemetry data.

Key Features

• Intended Use: Connectivity gateway for UniFi Protect wireless sensors.

• SuperLink Technology: Proprietary low-latency radio protocol delivering up to 2 km of range and concurrent support for up to 96 devices.

• Bluetooth 5.2 Connectivity: Auxiliary wireless interface with up to 100 meters range, supporting up to 7 connected devices.

• Network Interface: Integrated wired 10/100 MbE port with RJ45 connector.

• Power Supply: Can be powered via LAN (PoE) or optionally via USB-C cable.
