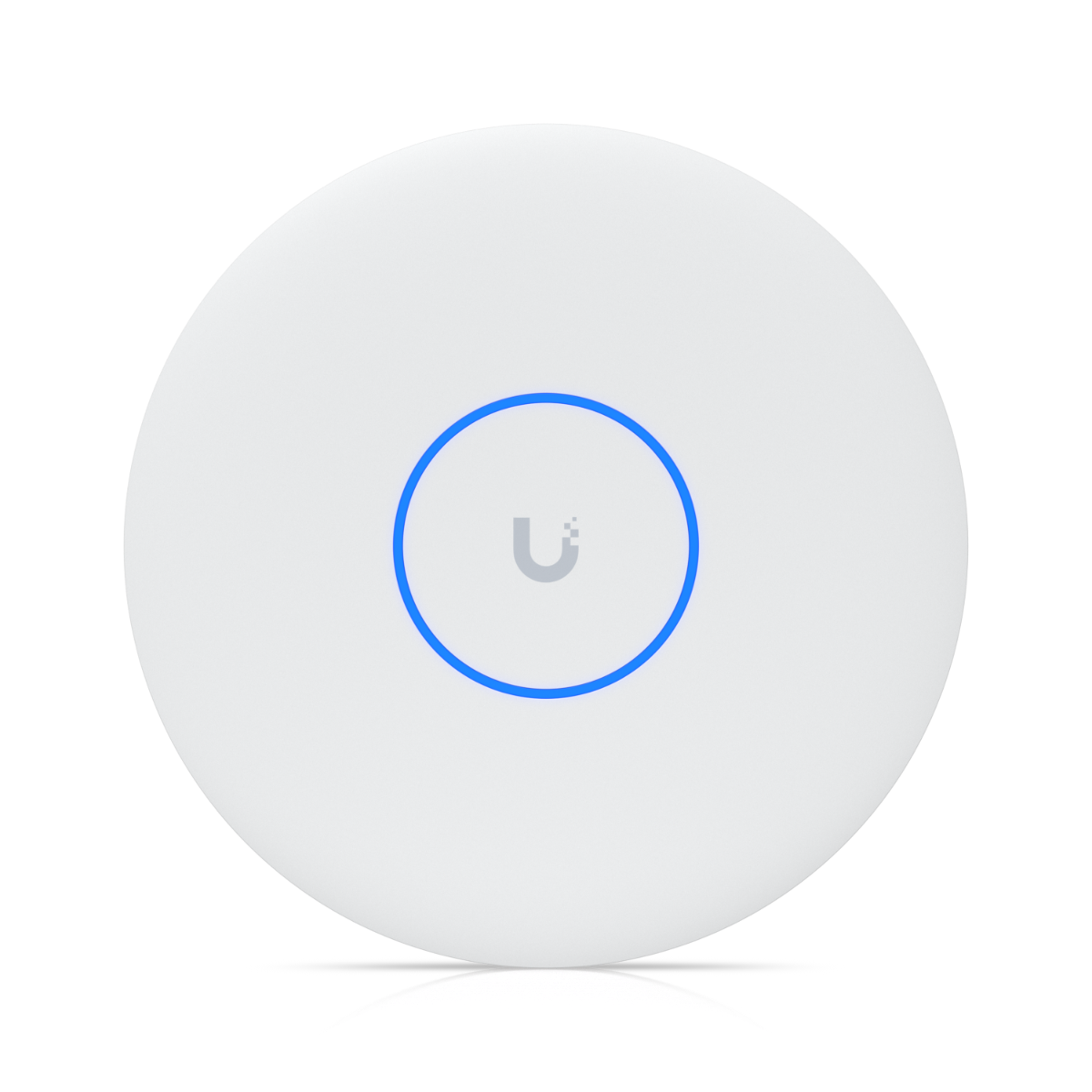

Ubiquiti U7-Pro-XGS – WiFi 7 Access Point with 10 Gbit Ethernet Port
€330.66 €268.83
In stock
SKU
UBIQUITI-U7-PRO-XGS
| Manufacturer SKU | U7-Pro-XGS |
|---|---|
| Manufacturer | Ubiquiti |
Explore the Ubiquiti U7-Pro-XGS advanced WiFi 7 Access Point, featuring high-performance 8-stream connectivity, dedicated spectral scanning radio, and ultra-fast 10/5/2.5/1 GbE port.
Product Description
The UniFi U7-Pro-XGS is an advanced WiFi 7 access point offering exceptional performance and reliability in demanding network environments. With support for three frequency bands (2.4 GHz, 5 GHz, and 6 GHz) and cutting-edge 8x8 MU-MIMO technology, the U7-Pro-XGS delivers fast and stable wireless connectivity. It is ideal for businesses, schools, and high-density locations that demand robust networking solutions.
Benefits
The U7-Pro-XGS offers numerous advantages that enhance wireless network quality and performance:
- Dedicated frequences Analysis Radio: Enables continuous interference detection and automatic channel optimization, ensuring connection stability even in crowded environments.
- 6 GHz Support: The new 6 GHz frequency band provides more channels and less interference, resulting in faster and more reliable connections.
- 10 GbE port with PoE++: A high-speed 10 GbE Ethernet port with PoE++ simplifies installation and provides high throughput, eliminating the need for additional power sources.
- High Client Capacity: Supports over 500 simultaneous connections, making it ideal for locations with heavy network traffic.
- Seamless integration with the UniFi ecosystem: Fully compatible with the UniFi platform, enabling centralized network management and monitoring.
Key Features
- WiFi Standard: WiFi 7 (802.11be)
- Supported Bands: 2.4 GHz, 5 GHz, 6 GHz
- Maximum Throughput: 15 Gbps (aggregate)
- Networking Interface: (1) 10 GbE RJ45 port with PoE++
- Coverage Area: 160 m² (1,750 ft²)
- Maximum Client Capacity: 500+
Technical Specifications
General
| ID | U7-Pro-XGS |
| LIB | U7-Pro-XGS |
| SKU | U7-Pro-XGS |
| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.89") |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mounting | Pole or wall (mounting bracket included) |
| Operating temperature | -30 to 60°C (-22 to 140°F) |
| Operating humidity | 5 - 95% noncondensing |
Networking Interfaces
| Ethernet port | 1x 10/5/2.5/1 GbE RJ45 with PoE++ (802.3bt) |
| Management interfaces | Ethernet |
Wireless Specifications
| WiFi Standard | WiFi 7 (802.11be), backward compatibility with 802.11ax/ac/n/g/b/a |
| Frequency bands | 2.4 GHz, 5 GHz, 6 GHz |
| Max throughput (6 GHz) | 5.8 Gbps (2x2 MU-MIMO) |
| Max throughput (5 GHz) | 8.6 Gbps (4x4 MU-MIMO) |
| Max throughput (2.4 GHz) | 688 Mbps (2x2 MU-MIMO) |
| Channel width | 20/40/80/160/320 MHz |
| Antenna gain | 6 dBi (2.4 GHz, 5 GHz, 6 GHz) |
| Supported DFS | Yes (Zero-Wait DFS) |
| Max client capacity | 500+ |
| Coverage area | Approx. 160 m² (1,750 ft²) |
Summary
The UniFi U7-Pro-XGS is a state-of-the-art WiFi 7 access point designed for environments that require exceptional connectivity performance. Equipped with tri-band capabilities, a high-speed 10 GbE PoE++ port, and optimized for seamless integration into professional networking infrastructures, it ensures superior wireless performance for enterprise-class installations.
Product Video
Additional Information
Ubiquiti UniFi U7-Pro-XGS is an advanced WiFi 7 access point that stands out from the competition due to several key features:
- Dedicated Spectrum Analyzer: Equipped with real-time spectral analysis capability, the U7-Pro-XGS effectively mitigates interference, ensuring optimal channel selection and maximum network performance, even in crowded environments.
- Multi-Link Operation (MLO) Support: Supports Multi-Link Operation, enabling simultaneous data transmission across multiple frequency bands for increased speed, reliability, and reduced latency.
- Modern Design with Color Options: The U7-Pro-XGS features a contemporary design available in two color variants—allowing businesses to choose the style best suited to their environment.
- Advanced Thermal Management: A fanless design with a robust metal internal structure ensures superior heat dissipation, improving the reliability and longevity of the device.
The UniFi U7-Pro-XGS is an excellent choice for enterprises and institutions that require reliable, high-performance wireless solutions capable of meeting the increasing demands of today's network users.
Compare Products
| Feature | U7 Pro XGS | |||
|---|---|---|---|---|
 |
 |
 |
 |
|
| Wi-Fi Standard | WiFi 7 (802.11be) | WiFi 7 (802.11be) | WiFi 7 (802.11be) | WiFi 6E (802.11ax) |
| Spatial Streams | 8 | 6 | 8 | 10 |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz | 2.4 GHz, 5 GHz, 6 GHz | 2.4 GHz, 5 GHz, 6 GHz | 2.4 GHz, 5 GHz, 6 GHz |
| Max. Client Count | 500+ | 300+ | 500+ | 600+ |
| Coverage Area | 160 m² (1,750 ft²) | 140 m² (1,500 ft²) | 160 m² (1,750 ft²) | 140 m² (1,500 ft²) |
| Uplink | 10 GbE | 10 GbE | 2.5 GbE | 2.5 GbE |
| Mounting Method | Ceiling, Wall (Lite Mount Included) | Ceiling, Wall (Lite Mount Included) | Ceiling, Wall (Pro Mount Included) | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE++ | PoE+ | PoE+ | PoE+ |
| Bluetooth Support | Yes (BLE) | Yes (BLE) | Yes (BLE) | Yes (BLE) |
| Weatherproofing | — | — | — | — |
| Management System | UniFi Network | UniFi Network | UniFi Network | UniFi Network |
| Installation Type | Ceiling/Wall | Ceiling/Wall | Ceiling/Wall | Ceiling/Wall |
| Certifications | CE, FCC, IC | CE, FCC, IC | CE, FCC, IC | CE, FCC, IC |
| MIMO - 6 GHz | 2×2 (DL/UL MU-MIMO) | 2×2 (DL/UL MU-MIMO) | 2×2 (DL/UL MU-MIMO) | 4×4 (DL/UL MU-MIMO) |
| MIMO - 5 GHz | 4×4 (DL/UL MU-MIMO) | 2×2 (DL/UL MU-MIMO) | 4×4 (DL/UL MU-MIMO) | 4×4 (DL/UL MU-MIMO) |
| MIMO - 2.4 GHz | 2×2 (DL/UL MU-MIMO) | 2×2 (DL/UL MU-MIMO) | 2×2 (DL/UL MU-MIMO) | 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate - 6 GHz | 5.8 Gbps (BW320) | 5.8 Gbps (BW320) | 5.7 Gbps (BW320) | 4.8 Gbps (BW160) |
| Max. Data Rate - 5 GHz | 8.6 Gbps (BW240) | 4.3 Gbps (BW240) | 8.6 Gbps (BW240) | 4.8 Gbps (BW160) |
| Max. Data Rate - 2.4 GHz | 688 Mbps (BW40) | 688 Mbps (BW40) | 688 Mbps (BW40) | 573.5 Mbps (BW40) |
| Antenna Gain - 6 GHz | 6 dBi | 6 dBi | 6 dBi | 6 dBi |
| Antenna Gain - 5 GHz | 5 dBi | 5 dBi | 5.9 dBi | 5.3 dBi |
| Antenna Gain - 2.4 GHz | 4 dBi | 4 dBi | 4 dBi | 3.2 dBi |
| Max. TX Power - 6 GHz | 24 dBm | 24 dBm | 24 dBm | 26 dBm |
| Max. TX Power - 5 GHz | 26 dBm | 26 dBm | 26 dBm | 26 dBm |
| Max. TX Power - 2.4 GHz | 23 dBm | 23 dBm | 23 dBm | 22 dBm |
| Wireless Meshing | ✓ | ✓ | ✓ | ✓ |
| Band Steering | ✓ | ✓ | ✓ | ✓ |
| 802.11v BSS Transition Management | ✓ | ✓ | ✓ | ✓ |
| 802.11r Fast Roaming | ✓ | ✓ | ✓ | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ | ✓ | ✓ | ✓ |
| Zero-Wait DFS | ✓ | — | ✓ | — |
| Advanced Radio Management | ✓ | ✓ | ✓ | ✓ |
| Real-Time Spectral Analysis | ✓ | — | ✓ | — |
| Passpoint (Hotspot 2.0) | ✓ | ✓ | ✓ | ✓ |
| Captive Hotspot Portal | ✓ | ✓ | ✓ | ✓ |
| Custom Branding Landing Page | ✓ | ✓ | ✓ | ✓ |
| Voucher Authentication | ✓ | ✓ | ✓ | ✓ |
| Payment-Based Authentication | ✓ | ✓ | ✓ | ✓ |
| External Portal Server Support | ✓ | ✓ | ✓ | ✓ |
| Password Authentication | ✓ | ✓ | ✓ | ✓ |
| Wi-Fi Schedules | ✓ | ✓ | ✓ | ✓ |
| RADIUS Authentication over TLS (RadSec) | ✓ | ✓ | ✓ | ✓ |
| Dynamic RADIUS VLAN Assignment | ✓ | ✓ | ✓ | ✓ |
| Guest Network Isolation | ✓ | ✓ | ✓ | ✓ |
| Real-Time Spectral Analysis | ✓ | — | ✓ | — |
| Max. Power Consumption | 29W | 22W | 25W | 22W |
| Includes PoE Adapter | — | — | — | — |
| Supported Voltage Range | 42.5—57V DC | 42.5—57V DC | 44—57V DC | 44—57V DC |
| Networking Interface | (1) 10 GbE RJ45 port | (1) 10 GbE RJ45 port | (1) 1/2.5 GbE RJ45 port | (1) 1/2.5 GbE RJ45 port |
| PRISM™ RF Filtering | — | — | — | — |
| Weight | 800 g (1.8 lb) | 750 g (1.7 lb) | 680 g (1.5 lb) | Device: 960 g (2.1 lb) With mount: 1.1 kg (2.4 lb) |
| Pole Mount Diameter | — | — | — | — |
| Management | Ethernet | Ethernet | Ethernet | Ethernet, Bluetooth |
| Built-In Switch | — | — | — | — |
| Enclosure Material | Polycarbonate, aluminum | UV-stabilized polycarbonate, aluminum | Polycarbonate, aluminum | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) | Stainless steel (SUS304), galvanized steel (SGCC) | Stainless steel (SUS304), galvanized steel (SGCC) | Stainless steel (SUS304) |
| Certifications | CE, FCC, IC | CE, FCC, IC | CE, FCC, IC | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) | -30 to 40° C (-22 to 104° F) | -30 to 50° C (-22 to 122° F) | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing | 5 to 95% noncondensing | 5 to 95% noncondensing | 5 to 95% noncondensing |
