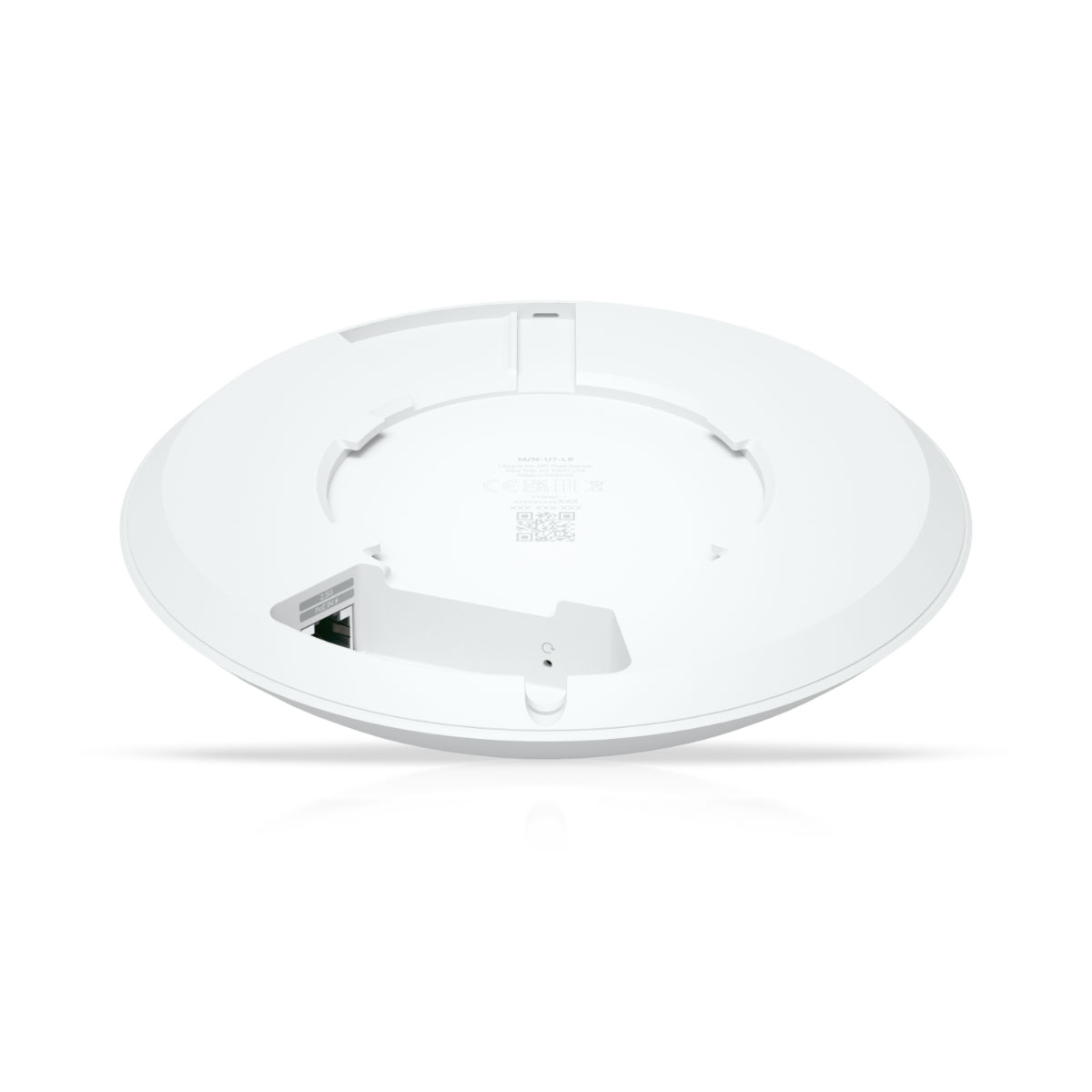

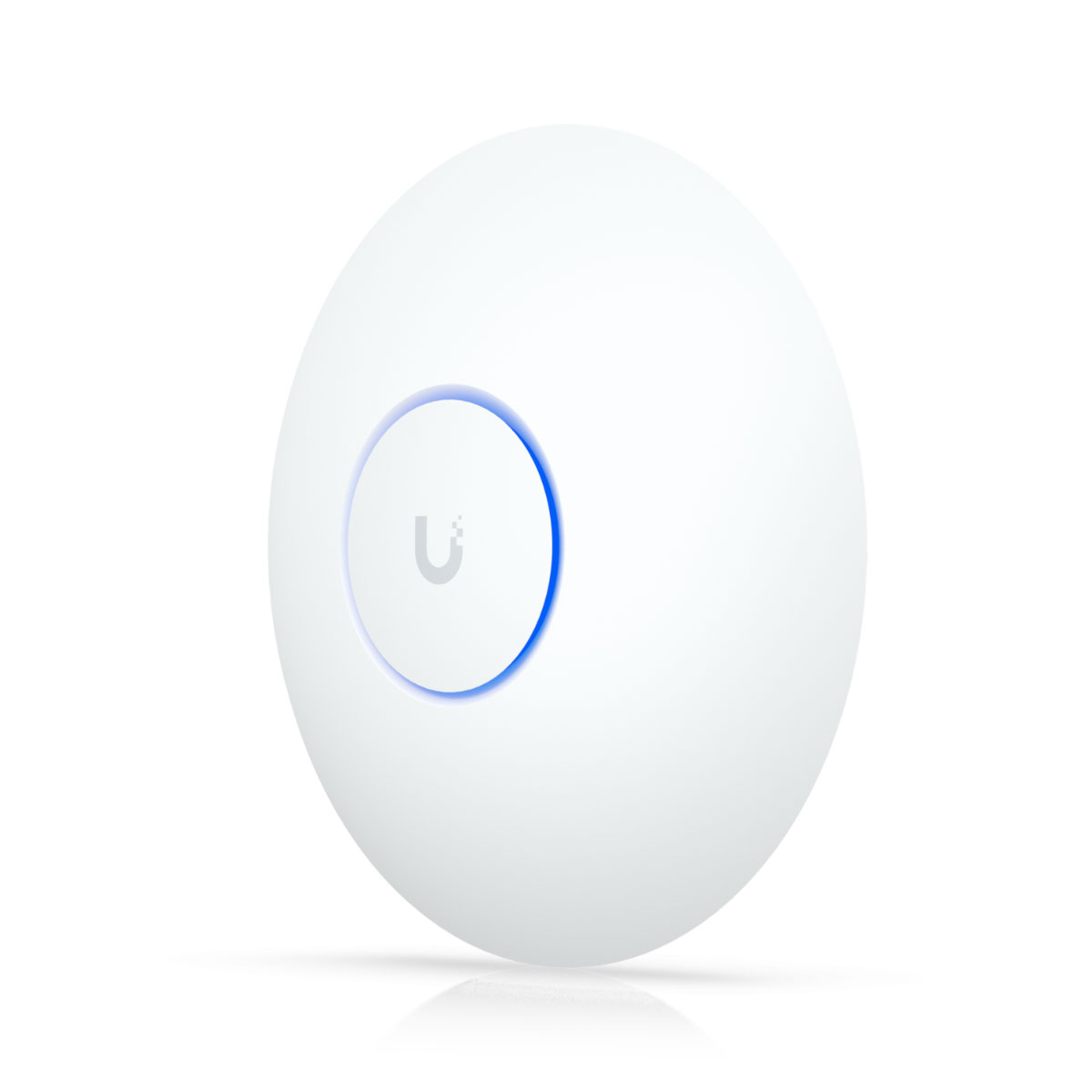

Ubiquiti U7 Long-Range (U7-LR)

Name: UBIQUITI U7 Long-Range (U7-LR)
Brand: Ubiquiti
SKU: UBIQUITI-U7-LR
Price: 153.99 EUR
Availability: InStock

€169.38 €137.71

In stock

SKU

UBIQUITI-U7-LR

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

Accessories and add-ons:

Ubiquiti Flex 2.5G PoE - Switch POE++ 2.5 GbE with 10GbE uplink (USW-Flex-2.5G-8-PoE)

€182.44

Ubiquiti 2.5G PoE+ Adapter (30W) - (UACC-PoE+-2.5G)

€15.65

UI Care warranty extension for U7-LR

€34.88

Details

More Information

Downloads

Ubiquiti U7 Long-Range (U7-LR)

Ubiquiti U7 Long-Range is a high-performance Wi-Fi 7 access point designed for extended coverage and high client density environments. Featuring five spatial streams and support for the latest 802.11be (Wi-Fi 7) standard, it delivers enhanced throughput and efficiency. The device supports advanced features such as band steering, fast roaming, and dynamic VLAN assignment, ensuring seamless connectivity and optimal network performance.

Mechanical

Dimensions	Ø175,7 x 43 mm
Weight	448 g
Enclosure material	Poliwęglan, stop aluminium
Mounting options	Montaż sufitowy lub ścienny (uchwyt w zestawie)

Hardware

Networking Interfaces	1x 2.5 GbE RJ45
Power Method	PoE
Max. Power Consumption	14 W
Supported Voltage Range	42,5–57V DC
LED Indicators	Biały/Niebieski
Operating Temperature	-30 do 50°C
Operating Humidity	5% do 95% (bez kondensacji)
Certifications	CE, FCC, IC
NDAA Compliant	Tak
SKU	U7-LR

Wireless

Wi-Fi Standard	802.11be (Wi-Fi 7)
Spatial Streams	5
Coverage Area	160 m²
Max. Client Count	300+
2.4 GHz MIMO	2x2 (DL/UL MU-MIMO)
5 GHz MIMO	3x3 (DL/UL MU-MIMO)
2.4 GHz Max. Data Rate	688 Mbps (BW40)
5 GHz Max. Data Rate	4,3 Gbps (BW160)
2.4 GHz Antenna Gain	4 dBi
5 GHz Antenna Gain	6 dBi
2.4 GHz Max. TX Power	26 dBm
5 GHz Max. TX Power	27 dBm
Supported Channel Bandwidths	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 MHz

Applications and Compatibility

Ubiquiti U7 Long-Range is ideal for high-density environments requiring wide Wi-Fi coverage, such as offices, educational institutions, and public venues. The device integrates with the UniFi Network application (version 9.0.114 and later) and is managed via the UniFi mobile app for iOS (version 10.20.2 and later) and Android (version 10.21.7 and later).

Summary

Ubiquiti U7 Long-Range combines advanced Wi-Fi 7 capabilities with robust hardware and comprehensive network management features, providing reliable and high-speed wireless connectivity for demanding environments.

More Information
Manufacturer SKU	U7-LR
EAN	810177161929
Manufacturer	Ubiquiti
PCS in collective packaging	16
GPSR contact	Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com
