Ubiquiti U7 Long-Range (U7-LR)
| SKU del produttore | U7-LR |
|---|---|
| EAN | 810177161929 |
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 16 |
Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
Ubiquiti U7 Long-Range (U7-LR)

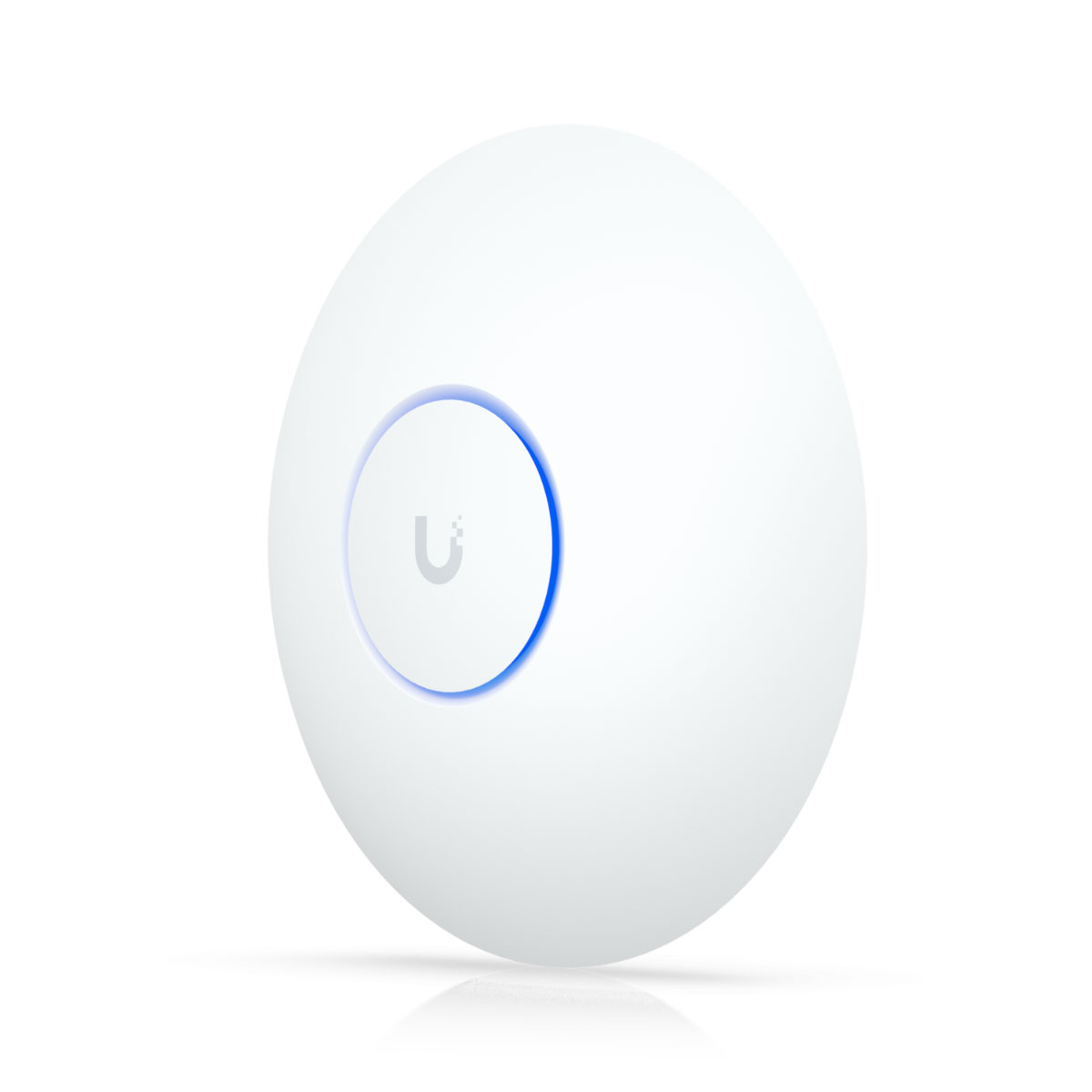

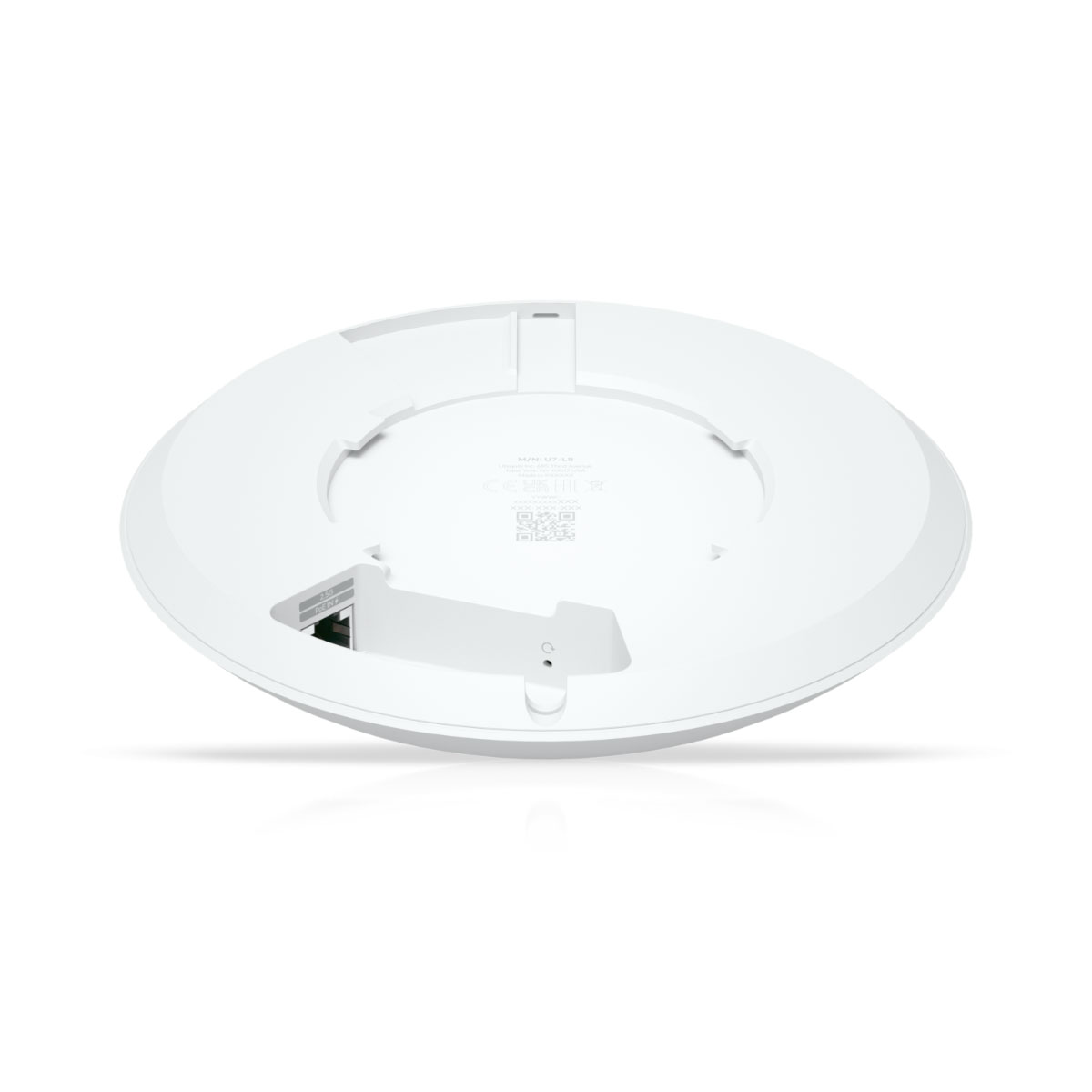

Ubiquiti U7 Long-Range is a high-performance Wi-Fi 7 access point designed for extended coverage and high client density environments. Featuring five spatial streams and support for the latest 802.11be (Wi-Fi 7) standard, it delivers enhanced throughput and efficiency. The device supports advanced features such as band steering, fast roaming, and dynamic VLAN assignment, ensuring seamless connectivity and optimal network performance.
Meccanico
| Dimensioni | Ø175,7 x 43 mm |
| Peso | 448 g |
| Materiale dell'involucro | Poliwęglan, stop aluminium |
| Mounting options | Montaż sufitowy lub ścienny (uchwyt w zestawie) |
Hardware
| Interfacce di rete | 1x 2.5 GbE RJ45 |
| Metodo di alimentazione | PoE |
| Massimo. Consumo di energia | 14 W |
| Intervallo di tensione supportato | 42,5–57V DC |
| LED Indicators | Biały/Niebieski |
| Temperatura di esercizio | -30 do 50°C |
| Umidità di esercizio | 5% do 95% (bez kondensacji) |
| Certificazioni | CE, FCC, IC |
| NDAA Compliant | Tak |
| Cod.Art. | U7-LR |
Senza fili
| Wi-Fi Standard | 802.11be (Wi-Fi 7) |
| Flussi spaziali | 5 |
| Area di copertura | 160 m² |
| Max. Client Count | 300+ |
| 2.4 GHz MIMO | 2x2 (DL/UL MU-MIMO) |
| 5 GHz MIMO | 3x3 (DL/UL MU-MIMO) |
| 2.4 GHz Max. Data Rate | 688 Mbps (BW40) |
| 5 GHz Max. Data Rate | 4,3 Gbps (BW160) |
| 2.4 GHz Antenna Gain | 4 dBi |
| 5 GHz Antenna Gain | 6 dBi |
| 2.4 GHz Max. TX Power | 26 dBm |
| 5 GHz Max. TX Power | 27 dBm |
| Supported Channel Bandwidths | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 MHz |
Applications and Compatibility
Ubiquiti U7 Long-Range is ideal for high-density environments requiring wide Wi-Fi coverage, such as offices, educational institutions, and public venues. The device integrates with the UniFi Network application (version 9.0.114 and later) and is managed via the UniFi mobile app for iOS (version 10.20.2 and later) and Android (version 10.21.7 and later).
Summary
Ubiquiti U7 Long-Range combines advanced Wi-Fi 7 capabilities with robust hardware and comprehensive network management features, providing reliable and high-speed wireless connectivity for demanding environments.
| SKU del produttore | U7-LR |
|---|---|
| EAN | 810177161929 |
| Produttore | Ubiquiti |
| In un imballaggio collettivo | 16 |
| GPSR contatto | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
