Ubiquiti Flex 2.5G PoE - Switch POE++ 2.5 GbE with 10GbE uplink (USW-Flex-2.5G-8-PoE)
| Manufacturer SKU | USW-Flex-2.5G-8-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 12 |
The Ubiquiti Flex 2.5G PoE is a compact Layer 2 switch with 8 2.5GbE (PoE++) ports and a hybrid 10G uplink. Powered by PoE or AC, it delivers up to 196W of power.
Accessories and add-ons:
Ubiquiti Flex 2.5G PoE – 2.5GbE Switch with 10GbE Uplink

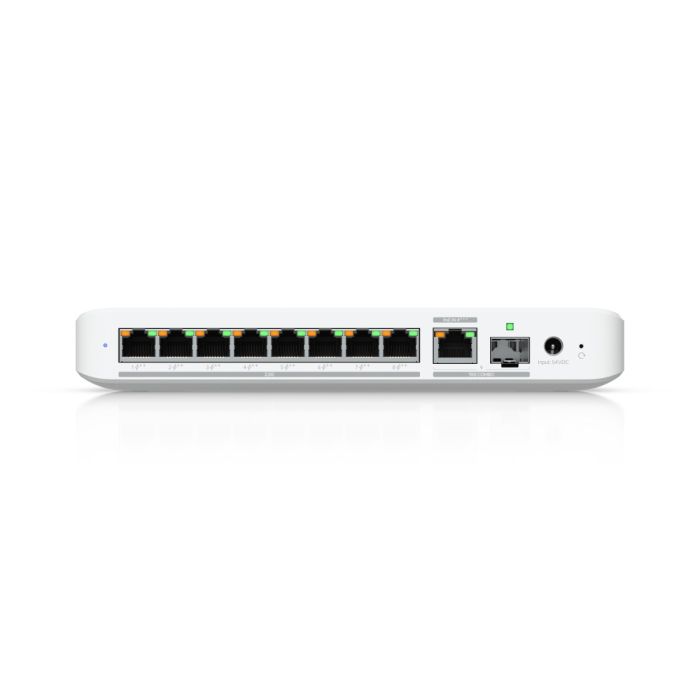

The Ubiquiti Flex 2.5G PoE (USW-Flex-2.5G-8-PoE) is a Layer 2 switch designed to power demanding devices and support very fast data transmission. The device is equipped with eight 2.5 GbE output RJ45 ports, each supporting PoE++ power delivery (up to 64W per port). The main connection to the network (uplink) is achieved via a hybrid (combo) port, which includes one 10 GbE RJ45 connector and one 10G SFP+ fiber optic connector.
The switch can be powered directly through the 10 GbE RJ45 port using PoE or via an AC power adapter (sold separately). The total PoE power budget available to connected devices scales depending on the selected power source: 16 W with PoE+ input, 46 W with PoE++, 76 W with PoE+++ input, and reaches 196 W with a dedicated AC power adapter.
The device offers a switching capacity of 60 Gbps, a non-blocking capacity of 30 Gbps, and a packet forwarding rate of 45 Mpps. The software supports a rich set of network features such as STP and RSTP, Port Isolation, Port Mirroring, Storm Control, Jumbo frame support, Loop Protection and support for up to 256 VLANs. The polycarbonate housing (weighing less than 567 grams) allows for easy mounting on a desk, wall, DIN rail, or even metal surfaces (magnetic and DIN rail mounts sold separately).
Key Features
-
Output Ports: 8x 2.5 GbE RJ45 (all supporting PoE++)
-
Uplink Port (Combo): 1x 10GbE RJ45 (PoE+++ power input) and 1x 10G SFP+ fiber port.
-
PoE Budget: From 16W (PoE+ input), 76W (PoE+++ input) up to 196W (external AC power supply)
-
Performance: Switching Capacity 60Gbps, Non-Blocking 30Gbps, MAC Table on 4000 addresses
-
Network features (Layer 2): VLAN (up to 256), STP/RSTP, port isolation, mirroring, loop prevention, traffic limiting
-
Design and mounting: Housing dimensions: 212.9 x 99.4 x 33.5 mm, wall, desktop, magnetic, or DIN rail mounting
-
Power (input): Can be operated with just a network cable (PoE in) or an optional power adapter.
-
Requirements: UniFi Network app version 9.0.114 or later.
Technical Specifications
Network and Performance |
|
| Port Layout | 2.5 GbE RJ45: 8 (all PoE++) (2.5G/1G/100M/10M) 10 GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M) 10G SFP+: 1 (10G/1G) |
| Switching Throughput Capacity) | 60 Gbps |
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | STP and RSTP Limit Egress Rate Limit Flow Control Storm Control Multicast and Broadcast Rate Limiting Port Isolation Port Mirroring Jumbo Frames Loop Protection |
Power and PoE |
|
| Maximum PoE Output Power | Up to PoE++ |
| Total Available PoE Power | PoE+++ Input: 76W PoE++ Input: 46W PoE+ Input: 16W AC Adapter Input 210W: 196W |
| PoE ports | PoE++: 8 |
| Max. PoE power per port (according to PSE) | PoE: 15.4W PoE+: 32W PoE++: 64W |
| Maximum Power Consumption | 14W (does not include PoE output) at PoE input 17W (does not include PoE output) at AC adapter input 210W (includes PoE output) |
| Power Method | (1) AC/DC Power Adapter (not included) (1) PoE+++ |
| Power Input Method | DC Input, PoE |
| Supported Voltage Range | 50–57V DC/PoE |
Management and Certifications |
|
| Management | Ethernet |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Requirements Applications | UniFi Network: Version 9.0.114 or later |
Physical Specifications |
|
| Dimensions | 212.9 x 99.4 x 33.5 mm |
| Weight | 567 g |
| Form Factor | Compact Desktop, Wall Mount, DIN Rail, Magnetic |
| Material Housing | Polycarbonate |
| Handle Material | Polycarbonate |
| Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| Manufacturer SKU | USW-Flex-2.5G-8-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 12 |
