Ubiquiti Enterprise Audio/Video Bridge - Transceiver AV-over-IP 4K60 XLR (EAV-Bridge)
| Manufacturer SKU | EAV-Bridge |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti Enterprise Audio/Video Bridge is a PoE+-powered AV-over-IP transceiver that acts as a transmitter or receiver on a 1GbE network. It delivers 4K video at 60 fps and supports video walls up to 8x8.
Ubiquiti Enterprise Audio/Video Bridge - 4K60 AV-over-IP Transceiver with XLR Audio Support

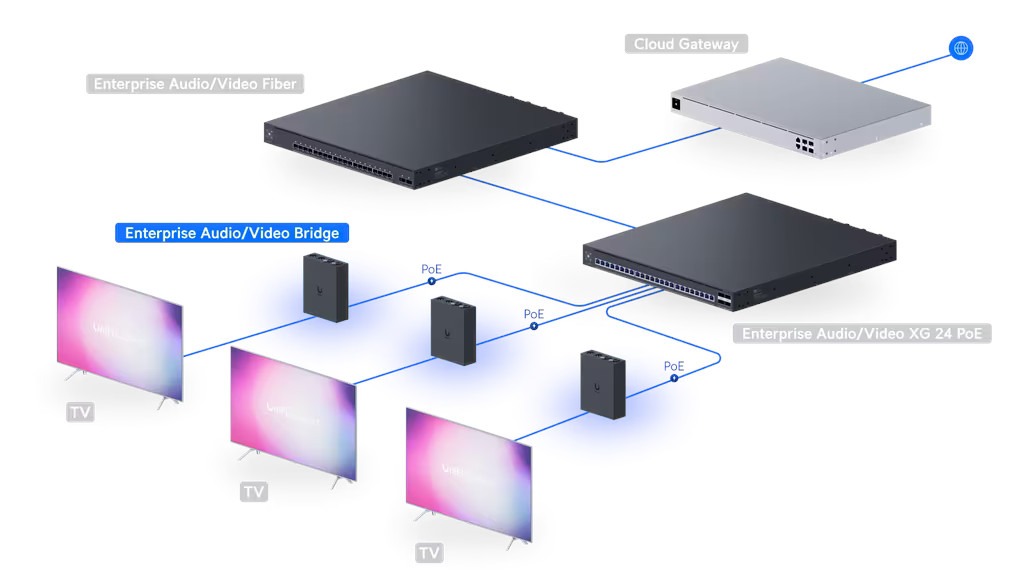

Ubiquiti Enterprise Audio/Video Bridge (EAV-Bridge) powered by a PoE+ AV-over-IP transceiver, designed to transmit video and audio over a 1GbE network. The device operates bidirectionally – it can be configured as a source encoder or an output decoder. The transceiver is managed via the UniFi Network app and is fully integrated with EAV-XG-24-PoE and EAV-Fiber switches. The aluminum housing allows for mounting on a DIN rail, wall, or pole (brackets included). A device with a 1.3-inch LCM touchscreen for application control and labeling.
The module supports image transmission in resolutions up to 4K at 60 fps, correct RGB and YCbCr formats (4:4:4, 4:2:2, 4:2:0). Application distribution can be used in a 1:1 configuration, 1:N streaming, and in multi-monitor video walls (TV walls) with a maximum layout of 8x8 (up to 64 screens). The audio bridge offers HDMI ports and XLR support (including a combo input with 48V phantom power support for condenser microphones). A 1 GbE connection with configured IGMP snooping and Jumbo Frames support is required for the device to operate on the network. The app also includes radio (IR) control ports and a universal USB-C port.
Key Features
-
Purpose: Bidirectional AV-over-IP transceiver (transmitter or earlier) managed with the UniFi Network.
-
Video: HDMI 2.0 input and output (supports 4K/60 FPS, 1080p, 720p).
-

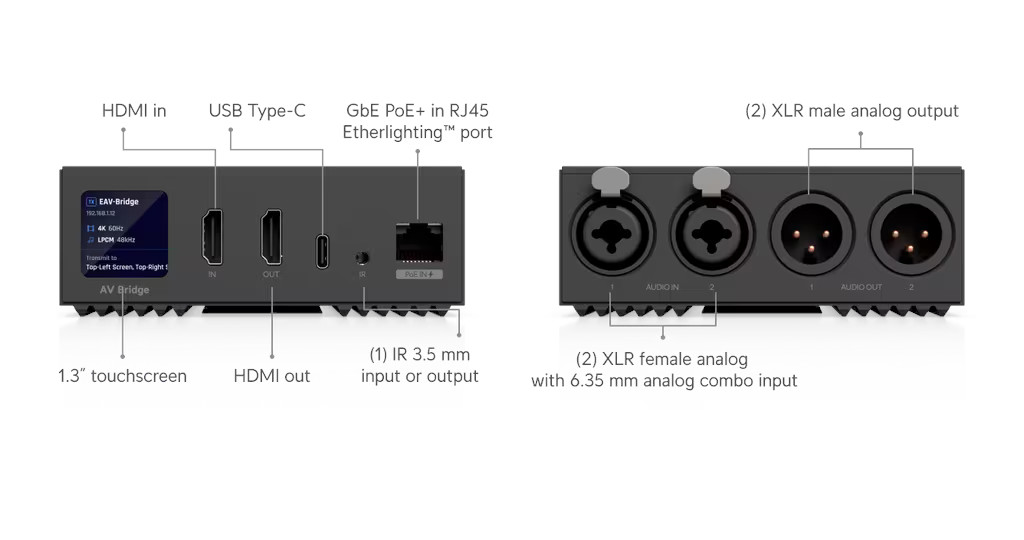

Audio Output: 1x HDMI, 2x analog XLR/6.3mm Jack combo inputs (supports 48V DC phantom power).
-
Audio Output: 1x HDMI, 2x analog XLR (male) outputs.
-
Image Distribution: 1:1, 1:N streaming and support for video walls (TV wall) in 8x8 panel layouts.
-
Additional Interfaces: 1x IR controller port (3.5mm In/Out), 1x USB-C port (5V, 1A).
Technical Specifications
Audio and Video Specifications |
|
| Video Inputs | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
| Video Outputs | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
| Supported Video Resolutions | 480p / 720p / 1080p / 4K |
| Signal Distribution | 1-to-1, 1-to-N Streaming Video Wall Configuration from 1 to 8x8 |
| Audio Output | Mono / Stereo |
| Surround Audio Format | PCM |
| Audio Inputs | (1) HDMI Input (2) Female analog XLR jacks with 6.35mm combo input, 48V phantom power supported DC |
| Audio Outputs | (1) HDMI Output (2) Male XLR Analog Outputs |
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
Interfaces and Connectors |
|
| Network Interface | (1) GbE RJ45 PoE+ In Port with Etherlighting™ Support |
| Universal Port | (1) USB Type-C 5V, 1A |
| IR (Infrared) Connector | (1) 3.5mm Input or Output |
Power and Hardware |
|
| Power Method | PoE+ |
| Maximum Power Consumption | 14W |
| Display | (1) 1.3" Touchscreen LCM |
| Buttons | (1) Factory Reset |
Other |
|
| Dimensions | 109 x 134.4 x 40.4 mm (4.3 x 5.3 x 1.6") |
| Weight | 560 g (1.2 lb) |
| Material Housing | Aluminum |
| Mounting | DIN Rail, Wall, Pole (brackets included) |
| Pole Mount Diameter | 1.5-2" (38-50 mm) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% non-condensing |
| Compliance with NDAA | Yes |
| Certificates | FCC, IC, CE |
Ubiquiti Enterprise Audio/Video Bridge - Frequently Asked Questions (FAQ)
The Enterprise Audio/Video Bridge is an AV streaming device that operates over an IP network. It serves as a streaming bridge designed for HDMI and analog audio signals. It offers a choice of operating modes – it can act as a transmitter (input encoding) or receiver (output decoding) for real-time AV streams.
The Enterprise Audio/Video Bridge requires a 1 GbE network connection, as well as IGMP Snooping and Jumbo Frames support enabled on the network.
The Enterprise Audio/Video Bridge supports 4K UHD, 1080p, and 720p resolutions at up to 60 frames per second (both input and output), with support for RGB (High/Low) and YCbCr color formats in 4:4:4, 4:2:2, and 4:2:0 sampling configurations.
The Enterprise Audio/Video Bridge supports video walls with a maximum panel layout of 8 x 8, enabling large installations of up to 64 displays.
The Enterprise Audio/Video Bridge is powered using the 802.3at PoE+ power supply standard.
To achieve clear and stable audio using the Enterprise Audio/Video Bridge, ensure that the cabling follows the correct signal path. Correct connections help minimize interference and ensure reliable audio performance.
For XLR-to-RCA pass-through connections, the following pin configuration should be used:
- Signal: XLR pin 2 connected to the center pin of the RCA plug.
- Ground: XLR pin 1 and pin 3 bridged (connected together) and connected to the shield/sleeve of the RCA plug.
| Manufacturer SKU | EAV-Bridge |
|---|---|
| Manufacturer | Ubiquiti |
