Ubiquiti Enterprise Audio/Video XG 24 PoE - AV Switch 10GbE (EAV-XG-24-PoE)
| Manufacturer SKU | EAV-XG-24-PoE |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti Enterprise Audio/Video XG 24 PoE is a Layer 3 switch designed for Pro AV systems, offering 24 10GbE RJ45 ports with PoE+++ and 4 100G QSFP28 uplink ports. The device supports precise PTPv2 time synchronization and comes with pre-configured profiles for Dante, NDI, SDVoE, and AES67 protocols.

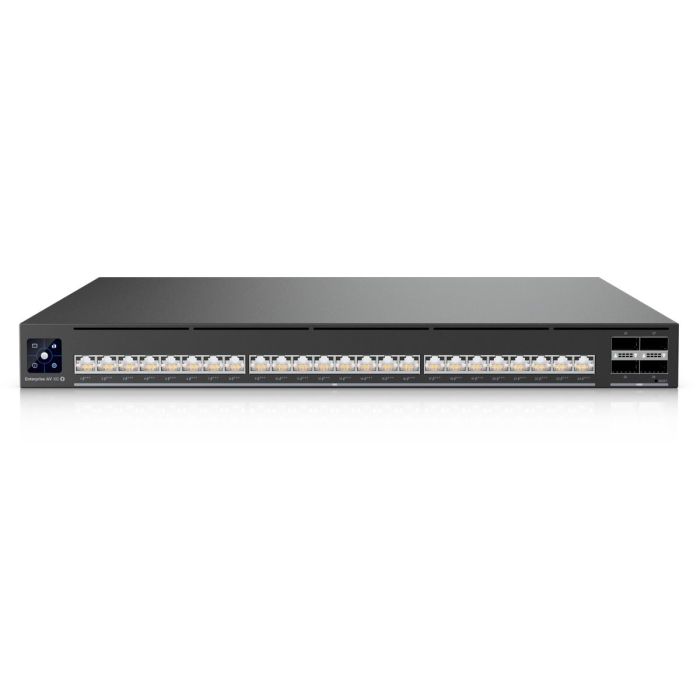

Ubiquiti Enterprise Audio/Video XG 24 PoE - AV Switch with 24 10GbE PoE+++ ports and 4 100G QSFP28 ports
Ubiquiti Enterprise Audio/Video XG 24 PoE (EAV-XG-24-PoE) is a Layer 3 switch designed for professional systems Audiovisual (Pro AV). The device is equipped with 24 10 GbE ports, each supporting the PoE+++ standard with a power output of up to 90 W. This allows for simultaneous powering of devices such as displays or advanced PTZ cameras. Additionally, the switch has four 100G QSFP28 fiber optic ports, dedicated to extreme bandwidth uplinks. The device also features a management console port, a dedicated 1 GbE OOB (Out-of-Band) management port, and a 1.3-inch LCM touchscreen.
The model supports the Precision Time Protocol (PTPv2) standard with a built-in precision OCXO clock and the ability to connect an external GPS signal (via an SMA connector) for operation in Grandmaster (GM) mode. The switch comes with pre-configured profiles for Pro AV protocols (including SDVoE, Dante, AES67, and NDI), significantly reducing deployment time and optimizing the network for ultra-low latency. The kit includes two hot-swappable 1200W power supplies (supporting shared and redundant modes) and four removable fan modules. The ports support the Etherlighting™ lighting system, and the switch itself is mounted in standard 4-post rack cabinets (to ensure proper balance).
Note: EAV-XG-24-PoE is the new name for the EAV-24-PoE device – no hardware changes have been made.
Key Features
-
RJ45 Ports: 24x 10 GbE RJ45 (all support PoE+++ 802.3bt power supply up to 90W per port) port).
-
Fiber ports: 4x 100G QSFP28.
-
Time synchronization and AV protocols: PTPv2 with OCXO clock (modes: Grandmaster, Boundary Clock, Transparent Clock); Supports Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron profiles.
-
PoE Power Budget: Total budget depending on power supply mode:
-
Shared Mode: 2150W (at 200-240V).
-
Redundant mode: 1050W (at 200-240V).
-
-
Modularity: 2x 1200W hot-swap power supplies and 4x hot-swap fans.
-
Layer 2/3 Performance: Non-blocking throughput up to 640 Gbps, support for static routing, DHCP server, and inter-VLAN routing.
Technical specifications
Interfaces and ports |
|
| 1 GbE RJ45 ports | 1 (10M/100M/1G) |
| 10 GbE RJ45 ports | 24 (All PoE+++, 10M/100M/1G/2.5G/5G/10G), 10/100M half-duplex not supported |
| Ports 100G QSFP28 | 4 (40G/100G), breakout cables not supported |
| Console Port | 1 |
| SMA Connector | 1 |
| Management Interfaces | Ethernet, AR, Serial Console |
Layer 2/3 Performance and Features |
|
| Switching Capacity | 1 280 Gbps |
| Total Non-Blocking Throughput | 640 Gbps |
| Forwarding Rate | 810 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Buffer Packets | 8 MB |
| Access Control Lists (ACLs) | IPv4 (256), MAC (256) |
| Layer 3 Features | DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing |
| Layer 2 Features | Port Aggregation LACP, STP & RSTP, QoS (DSCP), PTPv2, Jumbo Frames, Loop Protection, LLDP-MED, Voice VLAN, Virtual Network Override |
| Pro AV Features | Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), Advanced IGMP Configuration, IGMP Snooping |
| Security | 802.1X Control, MAC-Based ACLs, Device/Port Isolation, DHCP Snooping & Guarding, MAC Address Blocking, IP-Based ACL, MAC-Based Port Restriction, Egress Rate Limit, Flow Control, Storm Control, Multicast and Broadcast Rate Limiting |
Power and PoE |
|
| Maximum PoE Output Power | Up to PoE+++ (90W per port) |
| Available PoE Budget (1200W Power Supplies) | Shared Mode (200-240V AC): 2 150W Shared Mode (100-120V AC): 1 850W Redundant Mode (200-240V AC): 1,050W Redundant Mode (100-120V AC): 850W |
| PoE Ports | PoE+++ (24 ports) |
| Maximum PoE Power per Port (PSE) | PoE: 15.4W | PoE+: 30W | PoE++: 60W | PoE+++: 90W |
| Power Method | (2) Universal AC Inputs, 100–240V AC, 50/60 Hz |
| Power Supplies | (2) Hot-swappable AC/DC Modules 1200W |
| Maximum Power Consumption | 150W (Without PoE Output) / 2,400W (Including PoE) |
| Power and Cooling Redundancy | (2) Hot-swappable Power Supplies (4) Hot-swap fans |
Other |
|
| Dimensions | 442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7") |
| Weight | 9.85 kg (21.7 lbs) without brackets / 9.95 kg (21.9 lbs) with brackets |
| Case material | Steel SGCC |
| Bracket Material | Steel SGCC |
| Mounting | Rack (1U, full depth) |
| Supported Rack Depth | Four-Post Cabinets 482.6 mm (19"), Post Depth 650 to 1000 mm (25.6-39.4") |
| Display | 1.3" Touchscreen LCM |
| Ventilation | (4) Hot-swappable fan modules |
| Etherlighting™ | Ethernet, QSFP28 |
| LEDs | Ethernet, PSU, Fan |
| Heat dissipation | 512 BTU/hr (No PoE output) |
| ESD/EMP Protection | Air: ± 2kV, Contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% non-condensing |
| NDAA Compliant | Yes |
| Certifications | |
Ubiquti Enterprise Audio/Video XG 24 PoE - Frequently Asked Questions (FAQ)
Precision Time Protocol (PTP) is a network standard used to synchronize device clocks with very high accuracy, which is crucial in professional audio-video (AV) applications requiring precise timing.
Enterprise Audio/Video Switch The XG 24 PoE supports three PTP clock modes:
- Grandmaster (GM): Acts as the main time source for the entire network, synchronizing with a GPS reference clock connected to the SMA port.
- Boundary Clock (BC): Receives the time signal from the Grandmaster and forwards it to downstream devices.
- Transparent Clock (TC): Forwards PTP messages, correcting for the time it took the packet to traverse the switch.
The Enterprise Audio/Video XG 24 PoE supports a wide range of AV protocols, including SMPTE ST 2110, SDVoE, Dante, AES67, and others.
It also supports Precision Time Protocol (PTP), IGMP snooping, Quality of Service (QoS), and has built-in Pro AV profiles that help optimize low-latency AV networks on 10GbE ports.
The SMA port on the XG 24 PoE Enterprise Audio/Video switch is used in Grandmaster (GM) clock mode to synchronize the device with an external time source (GPS antenna/clock).
The OOB management port provides dedicated access to the device, completely isolated from the main data traffic. This allows administrators to manage the switch using SSH even when access over a standard network is not possible.
No. The Enterprise Audio/Video XG 24 PoE Switch must be provisioned using standard RJ45 or QSFP28 ports.
The console port provides direct access to the command-line interface (CLI) for system diagnostics and recovery. This allows administrators to access the device even when LAN/IP management is completely unavailable.
| Manufacturer SKU | EAV-XG-24-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
