Ubiquiti AI PTZ Industrial UVC-AI-PTZ-W
| Manufacturer SKU | UVC-AI-PTZ-W |
|---|---|
| Manufacturer | Ubiquiti |
Industrial PTZ camera Ubiquiti AI PTZ Industrial with 4K UHD resolution, 22× optical zoom, AI analytics, and PoE++ power. Reliable monitoring for critical outdoor areas, white variant.
Accessories and add-ons:
Ubiquiti AI PTZ Industrial (UVC-AI-PTZ-W)

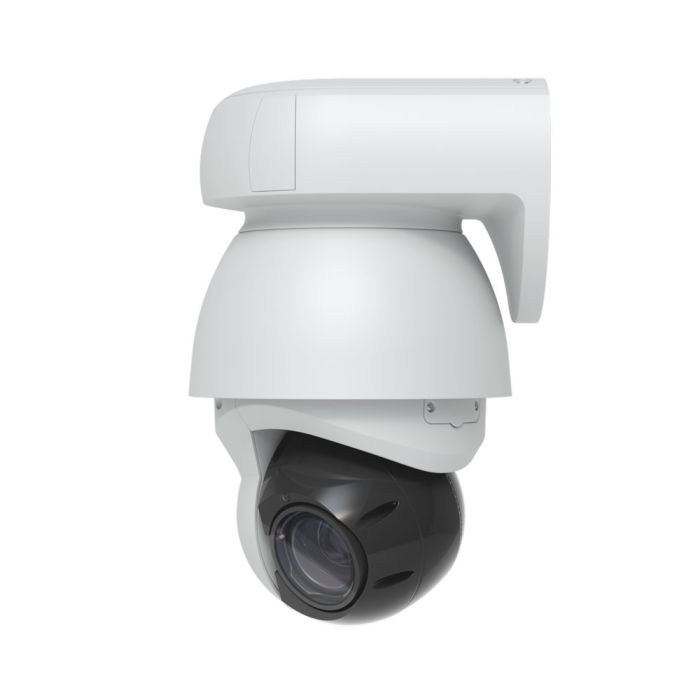

The UVC AI PTZ in its white variant is an industrial PTZ camera that records 4K (8 MP) video at up to 30 fps and provides 22x optical zoom to ensure high image detail over long distances. It is equipped with adaptive infrared LEDs with a range of up to 100 m, enabling effective night monitoring. The UVC-AI-PTZ-W model is powered via PoE++ and features a sealed white IP66-rated enclosure designed for operation in harsh environmental conditions. Built-in AI algorithms provide intelligent video analytics, including detection of people, vehicles, and animals, face recognition, license plate recognition, and automatic object tracking.

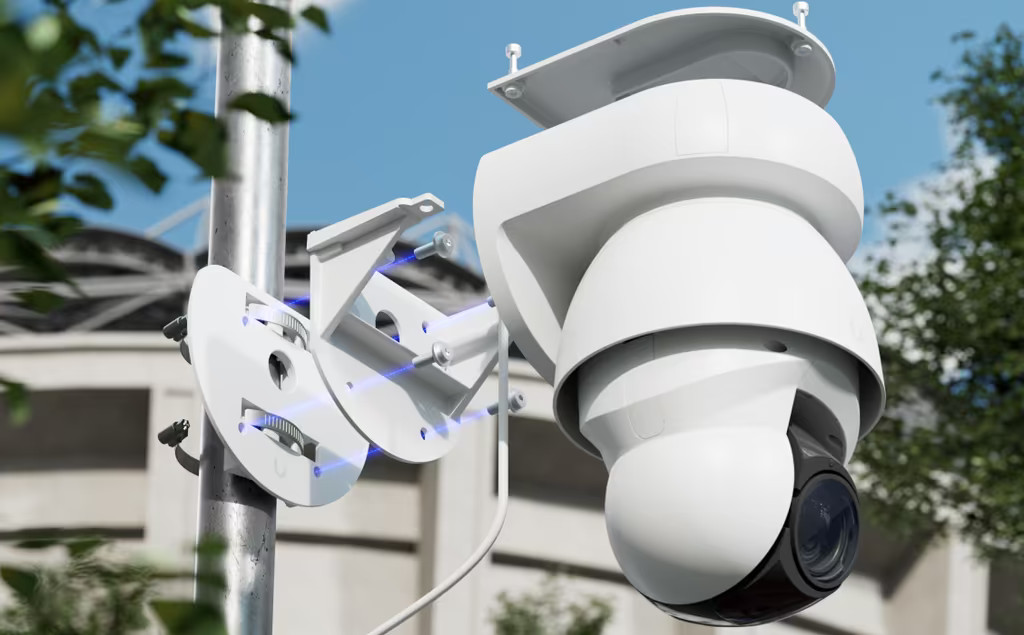

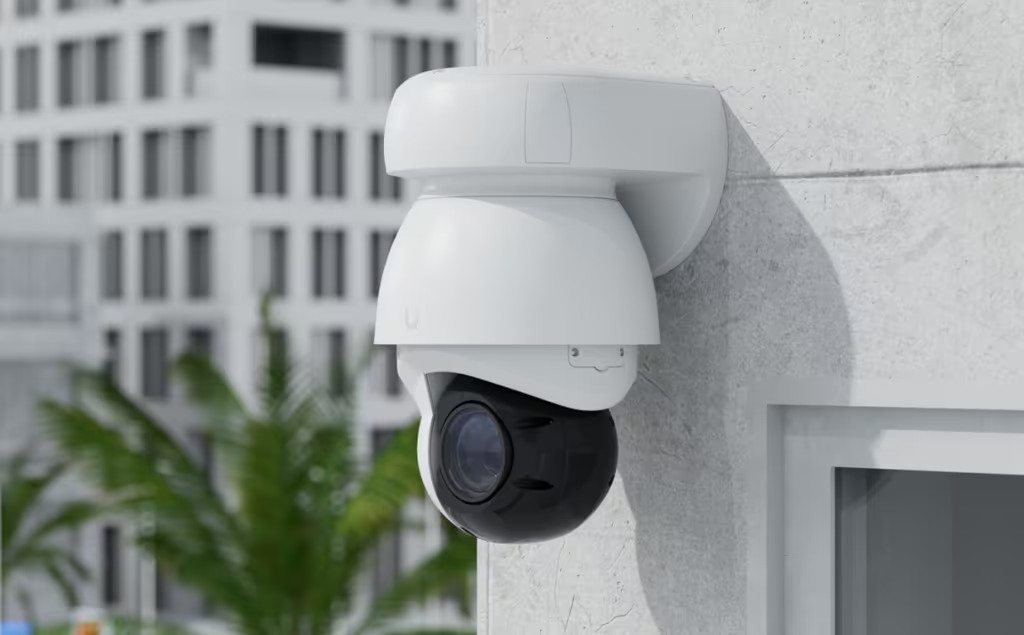

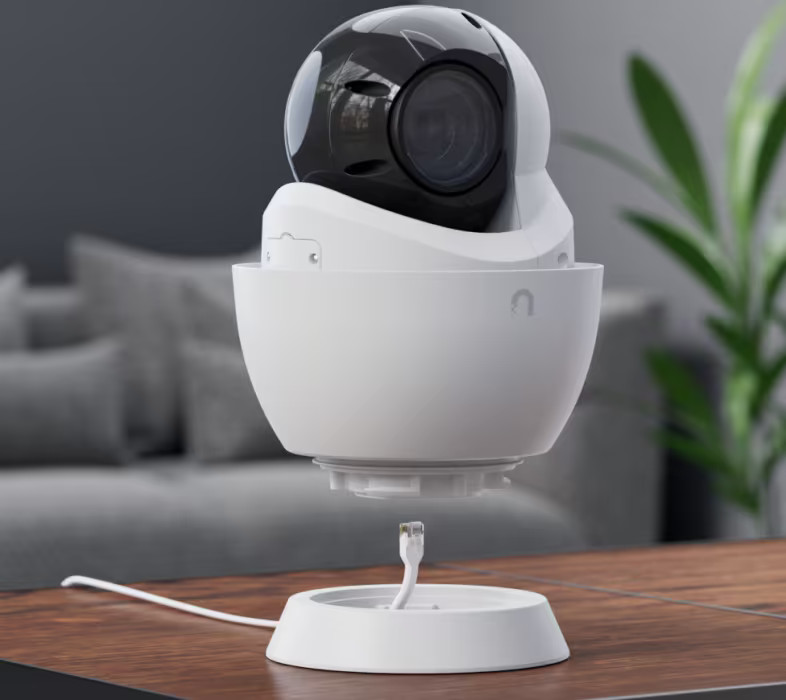

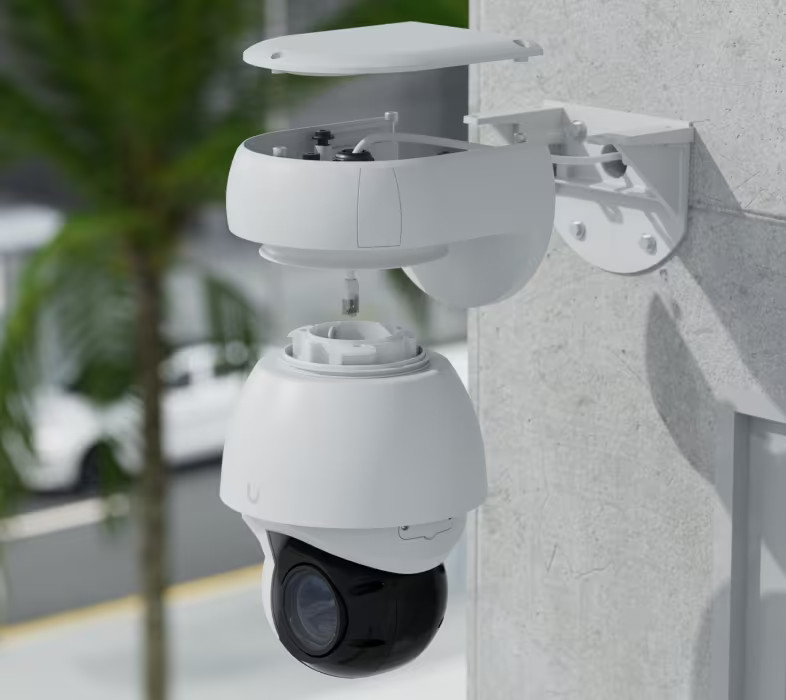

Ubiquiti AI PTZ Industrial in the white version is an industrial-class pan-tilt-zoom camera designed for continuous monitoring of large areas. The cast aluminum housing ensures resistance to external factors and allows operation in temperatures from –40 °C to 50 °C. The included mounting accessories enable installation on a wall, a mast, or a flat surface.
The AI PTZ Industrial model is equipped with a 1/1.8" 8 MP image sensor that records video in 4K UHD resolution (3840×2160). The varifocal lens with 22× optical zoom allows detailed observation of distant objects. The PTZ system supports 360° rotation and 120° tilt, providing full control of the viewing direction. Control is performed remotely with minimal latency.
The UVC-AI-PTZ-W camera uses adaptive IR LEDs that enable nighttime observation at distances of up to 100 m. The automatic ICR filter ensures accurate color reproduction during the day and high sensitivity at night. A quad-core ARM processor with an AI module provides advanced analytics, including detection of people, vehicles, and animals, face recognition and license plate recognition, as well as automatic tracking functions.
The camera uses Ethernet connectivity via a 1 Gbps RJ45 port that also supports PoE++ power (802.3bt). The maximum power consumption is 51 W. The model integrates with the Ubiquiti UniFi Protect platform, provides live view and configuration via a web or mobile application, and offers an RTSP stream. A microSD slot is also available, allowing local recording of footage.

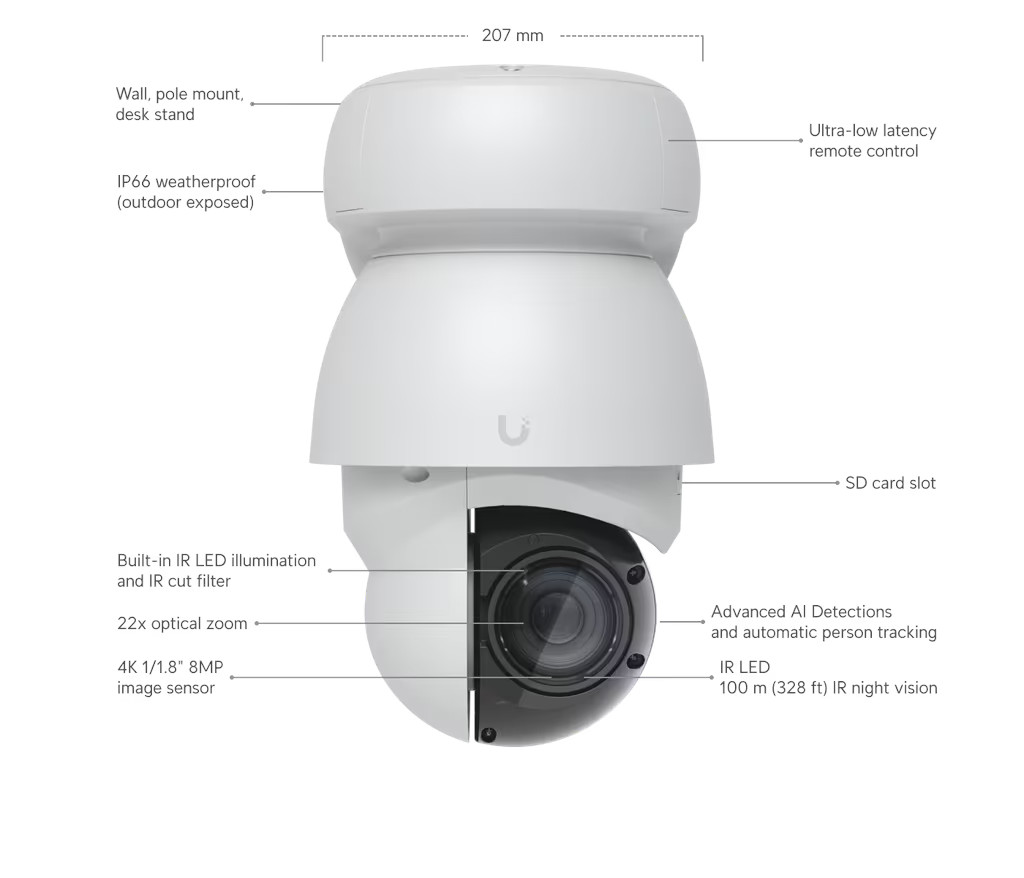

Key features
- 4K UHD resolution: 8 MP 1/1.8" image sensor, 3840×2160 recording at 30 fps.
- 22x optical zoom: high detail when monitoring over long distances.
- IR illuminator: adaptive IR LEDs with a range of up to 100 m, ICR filter.
- Wide PTZ range: 360° continuous pan and 120° tilt.
- AI analytics: object detection, face and license plate recognition, automatic tracking.
- IP66 enclosure: aluminum and polycarbonate housing, weather-resistant.
- PoE++ power: IEEE 802.3bt, power consumption up to 51 W.
- microSD slot: local recording on a memory card.
- UniFi Protect integration: full compatibility with UniFi OS and RTSP.
- White version: white housing that blends into modern outdoor installations.
Technical specifications
Mechanical

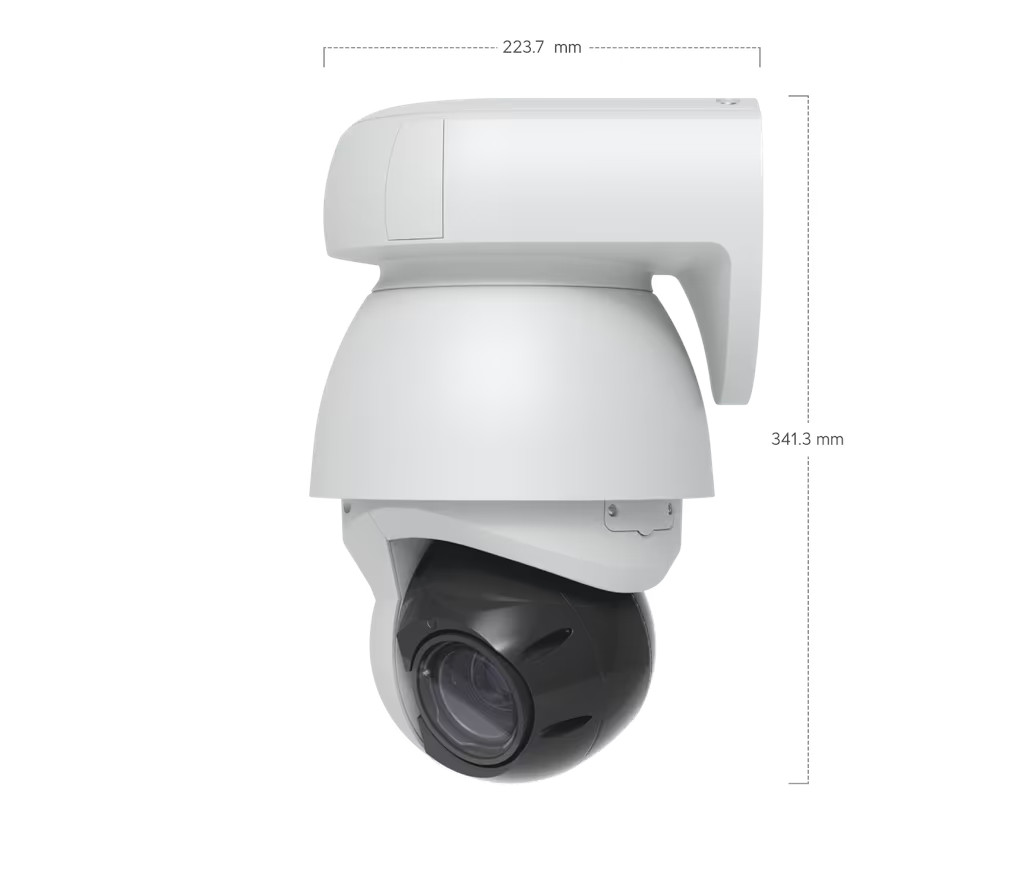

| Dimensions (without bracket) | 207 × 223.7 × 341.3 mm |
| Weight (camera without bracket) | 3.8 kg |
| Weight (wall bracket) | 3.0 kg |
| Weight (pole mount) | 0.32 kg |
| Weight (base) | 0.15 kg |
| Enclosure material | Aluminum, polycarbonate (PC) |
| Mounting | Wall, pole, or flat surface |
| Button | Reset |
Optical
| Image sensor | 1/1.8" CMOS 8 MP |
| Maximum resolution | 3840×2160 (4K UHD) |
| Frame rate | 30 fps |
| Lens | Varifocal, 22× optical zoom |
| Field of view | 3°–64° / 2°–37° (H/V) |
| PTZ range | 360° / 120° |
| Night mode | IR up to 100 m, ICR filter |
Network interfaces
| Ethernet port | 1 × RJ45 1 Gbps (PoE++) |
| microSD slot | 1 × microSD (local recording) |
Environmental
| Operating temperature | –40 °C to 50 °C |
| Humidity | 0%–90% (non-condensing) |
| Ingress protection rating | IP66 |
Power
| Power supply | PoE++ (802.3bt Type 4) |
| Input voltage | 42.5–57 V DC |
| Power consumption | 51 W |
Management and compliance
| Platform | UniFi Protect (UniFi OS) |
| NDAA compliance | Yes |
| Certifications | CE, FCC, IC |
Applications and compatibility
The AI PTZ Industrial in the white version is designed for monitoring large areas, critical infrastructure facilities, industrial plants, ports, airports, and installations that require intelligent video analytics and high environmental resistance. Thanks to integration with UniFi Protect, it enables central management of a fleet of cameras and scalable expansion of the system with other Ubiquiti devices.
Official product video
Summary
Ubiquiti AI PTZ Industrial (UVC-AI-PTZ-W) is an industrial PTZ camera in a white enclosure that delivers 4K video, 22× optical zoom, an IR illuminator with a range of up to 100 m, and advanced AI features. With its robust IP66 housing, wide PTZ range, and integration with UniFi Protect, it is well suited for demanding outdoor installations, providing precise monitoring and comprehensive video analytics.
