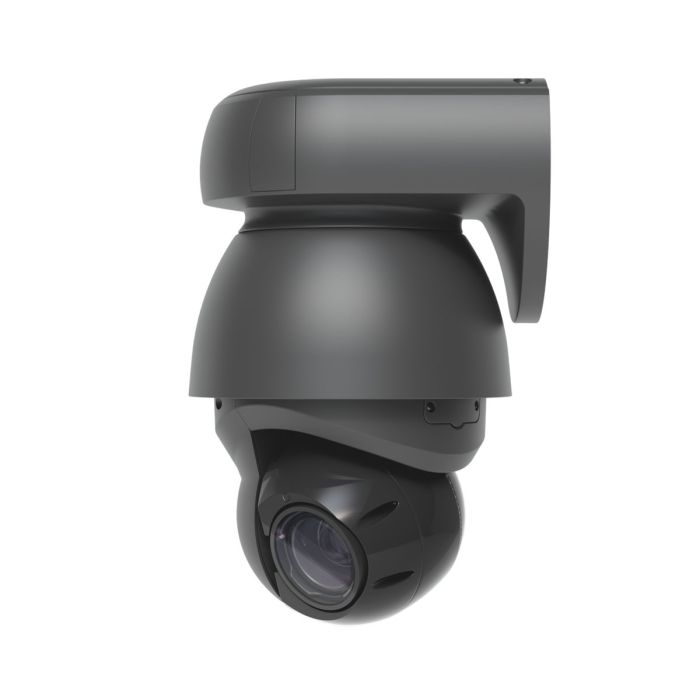

Ubiquiti AI PTZ Industrial (UVC-AI-PTZ-B)
| Manufacturer SKU | UVC-AI-PTZ-B |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
Industrial PTZ camera Ubiquiti AI PTZ Industrial with 4K UHD resolution, 22× optical zoom, AI analytics, and PoE++ power. Reliable monitoring for critical outdoor areas.
Accessories and add-ons:
Ubiquiti AI PTZ Industrial (UVC-AI-PTZ-B)
The industrial PTZ camera captures 4K (8 MP) video at up to 30 FPS and provides 22× optical zoom, enabling detailed long-range surveillance. It is equipped with adaptive infrared LEDs with a range of up to 100 m for effective night monitoring. The UVC-AI-PTZ-B is powered via PoE++ and features a durable, sealed (IP66-rated) housing designed for harsh outdoor environments. Integrated AI algorithms allow for intelligent image analysis (including person, vehicle, and animal detection, as well as facial and license plate recognition) and automatic tracking of selected objects.
Product Description

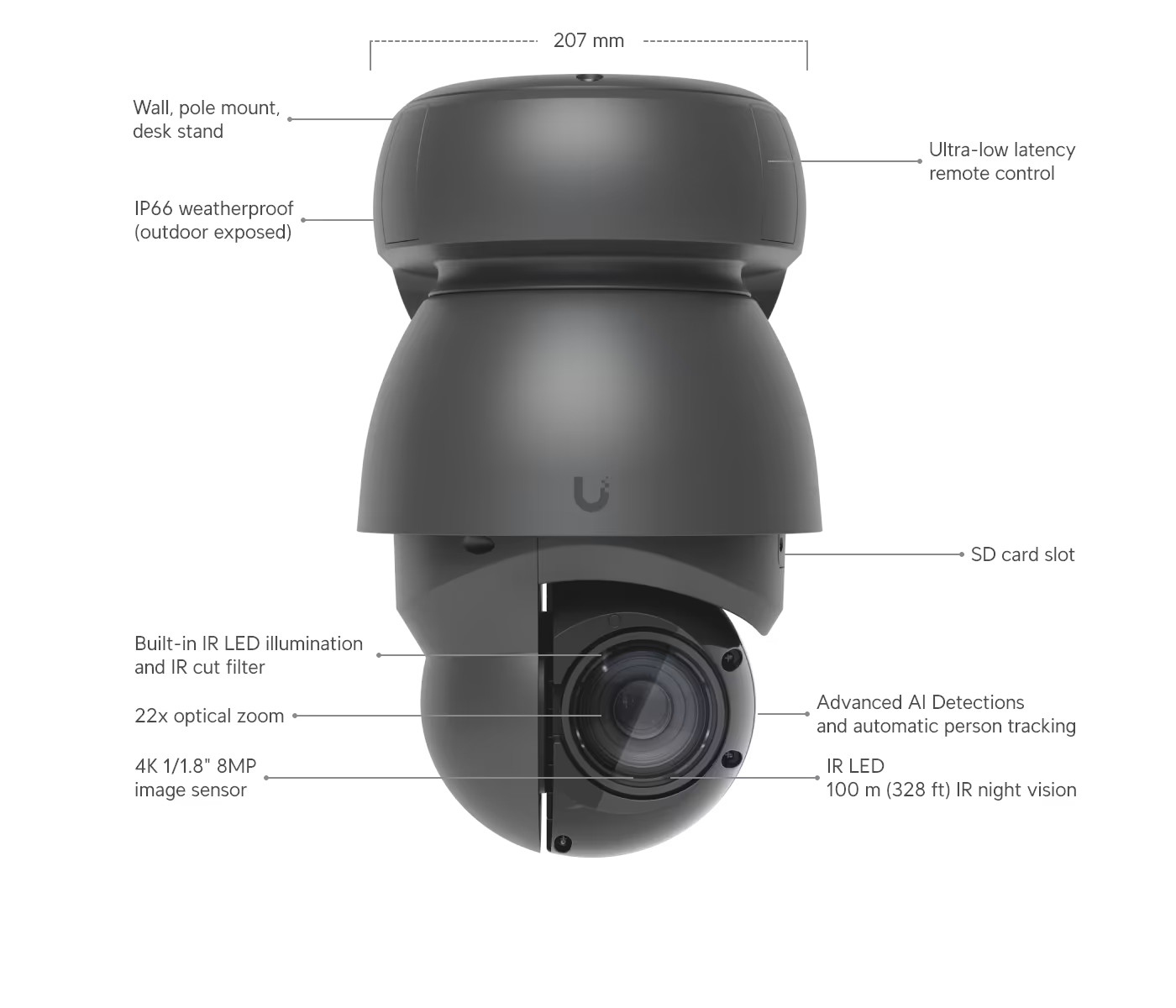

Ubiquiti AI PTZ Industrial is an advanced industrial-grade pan-tilt-zoom (PTZ) camera designed for 24/7 surveillance of wide areas in demanding environments. It features a sealed aluminum die-cast housing rated IP66, allowing for outdoor installation and operation across a wide temperature range (–40 °C to 50 °C). The package includes mounting accessories supporting multiple installation methods—wall mounting (hanging bracket), pole mounting (pole clamp), or flat surface installation with a desk stand.
The AI PTZ Industrial model is equipped with a 1/1.8" 8 MP image sensor capable of recording 4K UHD (3840×2160) video. The motorized lens with 22× optical zoom enables long-distance observation without loss of detail. The camera’s pan and tilt mechanisms allow for continuous 360° rotation (pan) and 120° vertical movement (tilt), enabling wide area coverage with smooth, low-latency remote control.
The UVC-AI-PTZ-B provides effective nighttime surveillance through an integrated long-range infrared illuminator—adaptive IR LEDs adjust their power dynamically to ensure clear visibility up to 100 m in low-light conditions. An automatic day/night ICR (infrared cut filter) ensures accurate color rendering during the day and enhanced sensitivity at night. AI PTZ Industrial is powered by a quad-core ARM processor with a dedicated AI module for advanced edge analytics. The camera can autonomously detect persons, vehicles, and animals within the scene, as well as recognize faces and license plates. These intelligent features enhance surveillance system efficiency by enabling automatic event detection and object tracking.
Ubiquiti AI PTZ Industrial communicates via Ethernet cable and has one Gigabit RJ45 port that supports both data transfer and PoE++ (IEEE 802.3bt compliant). Maximum power consumption is 51 W, allowing the camera to be powered either by a robust PoE++ switch or a dedicated PoE injector. The camera fully integrates with the Ubiquiti UniFi Protect video management platform. It requires a UniFi Protect recorder (such as UniFi NVR, UniFi Dream Machine Pro, or Cloud Key Gen2+) for operation. Configuration, live view, and playback are managed via the UniFi Protect web interface or mobile app. Additionally, the camera offers an RTSP stream for integration with external VMS systems. A microSD card slot is also provided, allowing local video storage directly on the device for backup purposes in case of network disruptions.
Key Features
- 4K UHD Resolution: 8 MP 1/1.8" sensor capturing up to 3840×2160 resolution at 30 FPS.
- 22× Optical Zoom: Motorized lens enabling 22× magnification without loss of quality, ensuring detailed long-range observation.
- Long-Range Night Vision: Built-in adaptive IR LEDs providing illumination up to 100 m; automatic ICR filter switches between day and night modes.
- Wide PTZ Range: 360° continuous pan and 120° tilt for comprehensive area coverage and real-time remote control.
- Intelligent Image Analysis: Integrated AI module detects people, vehicles, and animals, and recognizes faces and license plates for advanced tracking and alerting.
- Durable Housing: Aluminum die-cast IP66-rated enclosure protecting against dust, rain, and other environmental factors; operating temperature from –40 °C to 50 °C.
- PoE++ Power: Supports Power over Ethernet ++ (802.3bt) with maximum 51 W consumption, eliminating the need for separate power cabling.
- Connectivity and Local Recording: 1 × Gigabit Ethernet port (RJ45) for data and power; microSD slot for direct local video recording.
- UniFi Protect Integration: Fully compatible with the UniFi ecosystem, managed via the UniFi Protect application (web and mobile) with no licensing fees; RTSP stream export supported for integration with third-party systems.
- Flexible Mounting Options: Includes wall mount, pole mount, and desk stand accessories, allowing versatile installation methods.
Technical Specifications
Mechanical

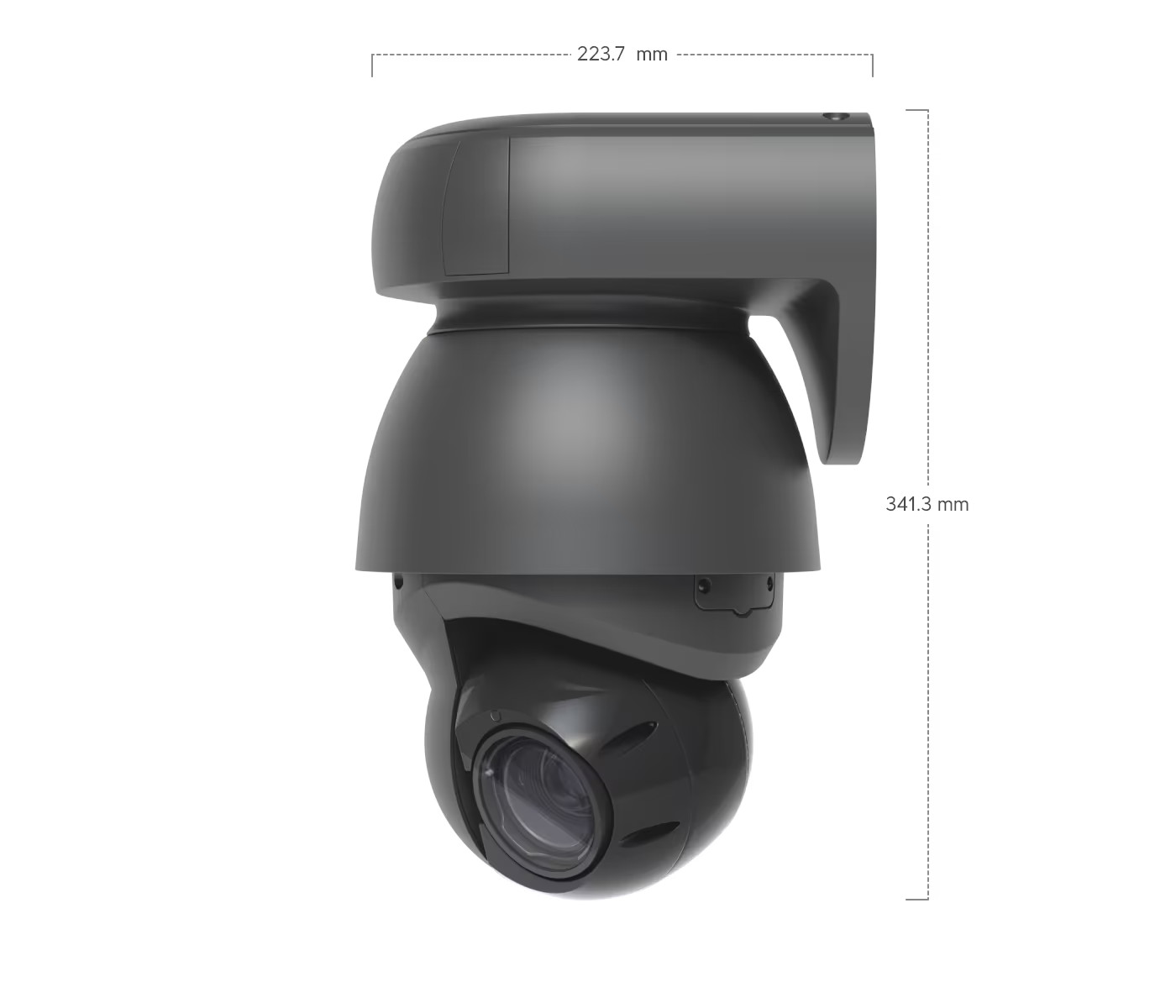

| Dimensions (without mount) | 207 × 223.7 × 341.3 mm |
| Weight (camera only) | 3.8 kg |
| Weight (wall mount) | 3.0 kg |
| Weight (pole mount) | 0.32 kg |
| Weight (desk stand) | 0.15 kg |
| Enclosure Material | Aluminum, Polycarbonate (PC) |
| Mounting | Wall, pole, or flat surface mounting (accessories included) |
| Button | Reset (factory reset) |
Optical
| Image Sensor | 1/1.8" CMOS 8 MP |
| Maximum Resolution | 3840 × 2160 (4K UHD) |
| Maximum Frame Rate | 30 FPS |
| Lens | Motorized, 22× optical zoom |
| Field of View (H/V) | 3°–64° / 2°–37° |
| PTZ Range (pan/tilt) | 360° (continuous) / 120° |
| Night Mode | Adaptive IR LEDs (up to 100 m range), mechanical ICR filter |
Network Interfaces
| Network Interface | 1 × RJ45 10/100/1000 Mbps (Gigabit Ethernet, PoE++) |
| Memory Slot | 1 × microSD (local recording) |
Environmental
| Operating Temperature | –40 °C to 50 °C |
| Operating Humidity | 0% – 90% (non-condensing) |
| Ingress Protection | IP66 (weather-resistant enclosure) |
Power
| Power Supply | PoE++ (802.3bt, Type 4) |
| Voltage Range | 42.5 – 57 V DC |
| Maximum Power Consumption | 51 W |
Management and Compliance
| Management | UniFi Protect Platform (UniFi OS) |
| NDAA Compliance | Yes |
| Certifications | CE, FCC, IC |
Applications and Compatibility
The AI PTZ Industrial camera is designed for securing large, critical infrastructure sites where intelligent monitoring and high reliability are required. It is well-suited for industries such as heavy manufacturing, energy, and other critical infrastructure sectors—monitoring areas such as refineries, power plants, industrial facilities, or logistics hubs. Thanks to its rugged design and weather resistance, it is also applicable in transportation and logistics scenarios, such as monitoring airports, seaports, railway stations, or highways. The camera integrates seamlessly with the UniFi Protect ecosystem, enabling centralized management of multiple devices. Full compatibility with Ubiquiti NVRs and the Protect application ensures easy operation and scalability without functional limitations.
Product Video
Official video showcasing the AI PTZ Industrial camera:
Summary
Ubiquiti AI PTZ Industrial is an industrial-grade 4K PTZ camera featuring 22× optical zoom, long-range IR illumination, and built-in AI for advanced video analytics. Its durable IP66 housing, wide PTZ movement, and PoE++ power supply make it suitable for demanding outdoor applications, providing detailed monitoring and automatic threat detection across large sites. As part of the UniFi Protect ecosystem, it enables seamless integration into larger surveillance systems and centralized management alongside other Ubiquiti devices.
| Manufacturer SKU | UVC-AI-PTZ-B |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
