UBIQUITI G6 180 - Dual Panoramic IP Camera (UVC-G6-180-B)
The Ubiquiti G6 180 is a panoramic IP camera with a resolution of 16 MP (7680 x 2160 px) and a 180° viewing angle. The device features image analytics (face and license plate recognition) and an IP66/IK04-rated housing.
Accessories and add-ons:
Ubiquiti G6 180 – 16MP Panoramic IP Camera with Dual Matrix

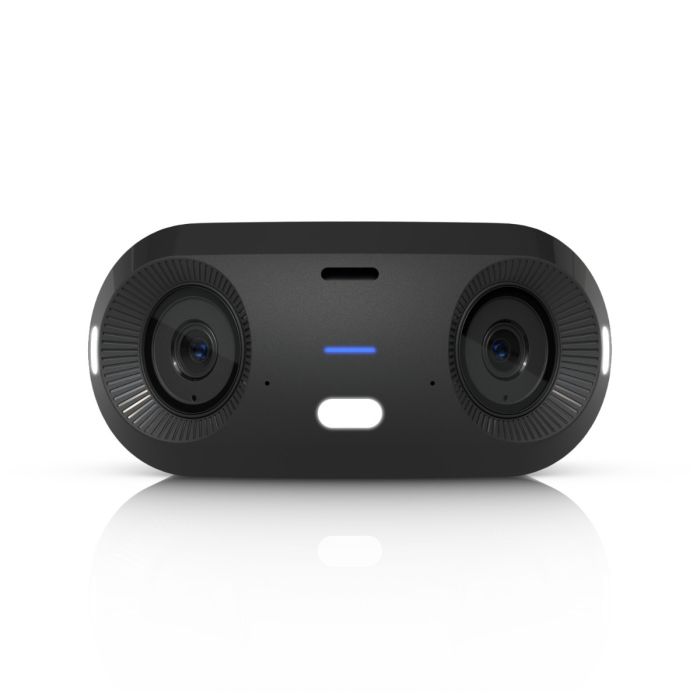

Ubiquiti G6 180 (UVC-G6-180-B) is an advanced IP surveillance camera designed for large-area surveillance, both indoors and outdoors. The device is equipped with an optical system using two independent 1/1.8" sensors with a resolution of 8 MP each. These sensors work together to generate images with a combined resolution of 16 MP (7680 x 2160 px at 20 frames per second) and achieve a seamless, panoramic field of view with a 180° horizontal angle. Thanks to precise calibration and software-based offset correction, the camera minimizes image distortion at the frame stitching line. The device natively integrates with the UniFi Protect ecosystem, allowing it to replace several traditional fixed-focus cameras, simplifying infrastructure management.
The camera is powered by a quad-core ARM Cortex-A53 processor that supports Multi-TOPS AI. This enables image analytics, including object detection (people, vehicles, animals), facial recognition, and license plate identification. Communication and power are provided via a single Fast Ethernet port. (10/100 Mb/s) using PoE+ power supply.
The housing is IP66 rated (weatherproof) and IK04 rated (mechanical damage resistant). The camera is also equipped with a heating module that activates automatically during initial startup. This module evaporates any moisture from production and prevents condensation inside the optics during subsequent use. The device has a black housing (a white version is also available).
Key Features
-
Matrix resolution: 16 MP (7680 x 2160 px) at 20 FPS
-
Image sensor: 2x 1/1.8" 8 MP
-
Angles of view (FoV): 180° horizontal, 56.7° vertical Vertical
-
Power Standard: PoE+ (supported range 37-57 V DC)
-
AI Analytical Engine: Face Recognition, License Plate Reading, Intelligent Object Detection
-
Ingress Protection: IP66 (tightness) and IK04 (vandal resistance)
Technical Specifications
Camera and Lenses |
|
| Sensor | Dual 1/1.8" 8MP |
| Lens | (2) Fixed Focal Length |
| Field of View | H: 180° V: 56.7° |
| Mode Night Vision | Built-in IR LED Light Infrared Cut Filter IR Night Vision Range: 20 m (65 ft) |
| Audio | Two-Way Audio |
Video |
|
| Maximum Resolution | Dual 4K 16MP 7680 x 2160 (3.5:1) |
| Maximum Frame Rate | 20 FPS |
| Image Settings | Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, Motion NR, Masking, Text Overlay, HDR |
| Artificial Intelligence (AI) Features | Face Recognition License Plate Recognition Smart Detection (People, Vehicles, Animals) |
Device |
|
| Network Interface | 10/100 MbE Port RJ45 |
| Processor | Quad-core Arm® Cortex®-A53 processor |
| Expansion slot | MicroSD card |
| Buttons | (1) Factory reset |
| UniFi App Suite | Protect |
| NDAA Compliant | Yes |
Power |
|
| Power Method | PoE+ |
| Supported Voltage Range | 37—57V DC |
| Maximum Power Consumption | 15W |
Other |
|
| Dimensions | 136 x 64 x 92 mm (5.6 x 2.5 x 3.6") |
| Weight | 839 g (1.8 lb) |
| Housing Materials | Aluminum Alloy Polycarbonate |
| Mounting Materials | Polycarbonate Stainless Steel |
| Included Mounting Hardware | Ceiling Mount Pole Mount Wedge Bracket Swivel Adapter |
| Optional Accessories Mounting Brackets | Camera Mounting Box Wall Mount/Arm Double Bracket Mounting Plate for Junction Boxes |
| Ingress Protection Class | IP66 |
| Vandal Resistance | IK04 |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% (without condensation) |
| Certifications | CE, FCC, IC |
Ubiquiti G6 180 - Frequently Asked Questions (FAQ)
The G6 180 uses two 1/1.8" 8MP sensors that work together to create a true 180° panoramic view. This provides wide, seamless coverage with significantly more detail than traditional cameras. single-lens cameras.
The G6 180 uses a calibrated stitching distance to align the images from both 8-megapixel sensors, ensuring that objects crossing the central stitching line are displayed without distortion. To further customize the image fusion process for a specific distance, you can change the Lens Fusion Offset parameter in the camera settings.
The optimal mounting height is approximately 3-4 meters. Mounting the Ubiquiti G6 180 camera at this level on a wall or other elevated surface provides balanced outdoor visibility and allows you to maintain a clear, unobstructed 180° field of view.
The Ubiquiti G6 180 is the perfect choice for wide, continuous monitoring of areas such as driveways, open courtyards, building facades, or large squares, where a single panoramic camera can successfully replace several traditional devices.
The G6 180 supports ceiling, wall, and A wedge mount for additional articulation and a pan adapter for angle adjustment when ceiling mounting are included.
The built-in heater in the G6 180, like in other UniFi Protect cameras, removes moisture during the initial setup out of the box. This helps prevent condensation inside the device, ensuring clear image quality and reliable operation.
The heater automatically turns on when the first six hours of operation. During this period, the metal casing may feel warm to the touch – this is normal and is due to the device's design.
If water vapor is still visible under the lens dome after the initial six-hour heating cycle, manually restart the device (power cycle). This will turn the heater back on for another six hours, helping to completely remove any remaining moisture.
| Manufacturer SKU | UVC-G6-180-B |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 8 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
-
