Ubiquiti Standard 16 PoE - Switch L2 16x 1GbE 2x SFP (USW-16-POE)
| Manufacturer SKU | USW-16-POE |
|---|---|
| EAN | 817882028547 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 2 |
The Ubiquiti Standard 16 PoE is a managed, fanless L2 switch offering 16 1GbE RJ45 ports and two 1G SFP ports. Eight ports support PoE+ with a total power budget of 42W. The device provides 36 Gbps switching capacity, port isolation, and LACP.
Accessories and add-ons:
Ubiquiti Standard 16 PoE - 16-Port Layer 2 Switch with Passive Cooling
Ubiquiti Standard 16 PoE (USW-16-POE) is a managed Layer 2 (Layer 2) switch designed for 1U rack mounting. The device is equipped with 16 Gigabit Ethernet ports, 8 of which support PoE+. Additionally, the switch has two 1G SFP fiber ports dedicated to uplink connections. The total output power budget for connected devices is 42W, making it suitable for smaller monitoring installations, access points, or VoIP phones. The device offers a non-blocking throughput of 18 Gbps with a total switching capacity of 36 Gbps. The switch supports advanced Layer 2 management, including link aggregation (LACP), port isolation, Jumbo Frames, and 802.1X.
The design is based on a fanless cooling system, ensuring completely silent operation. The enclosure and dedicated mounting brackets are made of SGCC galvanized steel. The device is powered by an integrated 60W power supply, powered by a standard AC connector (100-240V). A 1.3-inch LCM touchscreen is located on the front.
Key Features
-
Copper Ports: 16x 1 GbE RJ45.
-
Fiber Ports: 2x 1G SFP.
-
PoE budget and standard: Total 42W; 8 ports (connectors 1-8) support PoE+ (up to 32W per port).
-
Layer 2 Performance: 36 Gbps switching capacity, LACP support, port isolation.
Technical Specifications

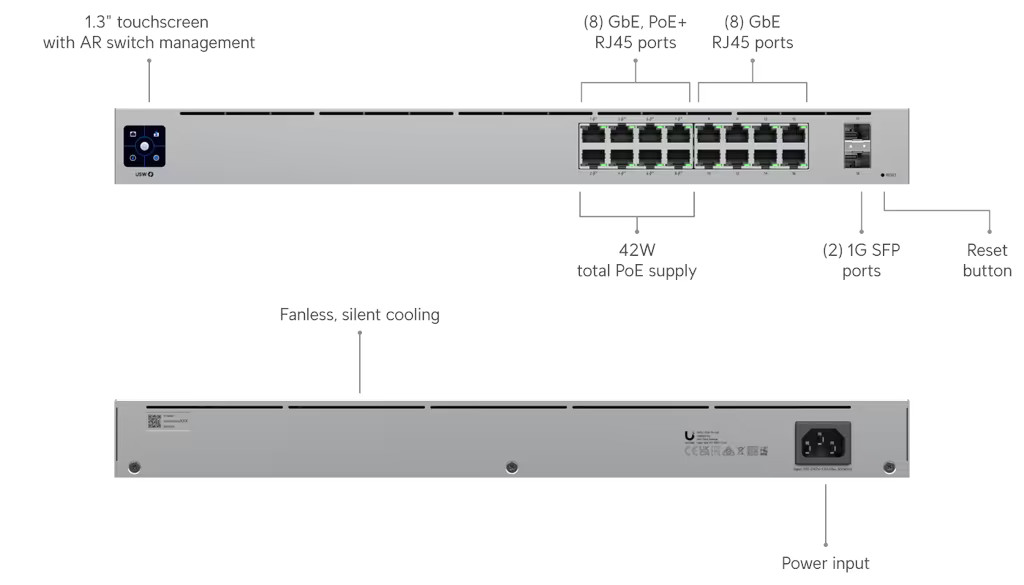

| Port Layout | 1 GbE RJ45: 16 (8 PoE+) (1G/100M/10M) 1G SFP: 2 (1G) |
| Maximum PoE Output Power | Up to PoE+ |
| Total PoE Budget | 42W |

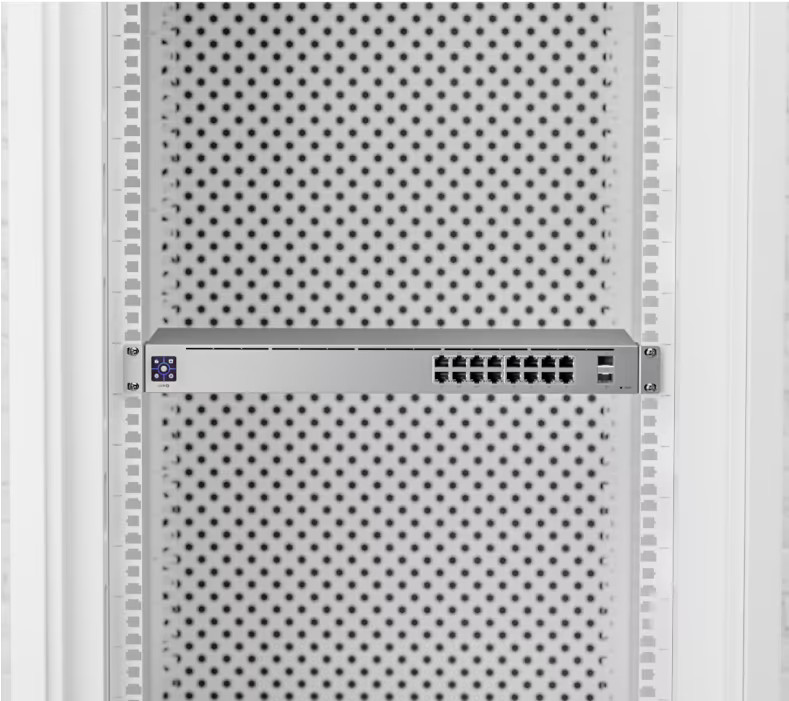

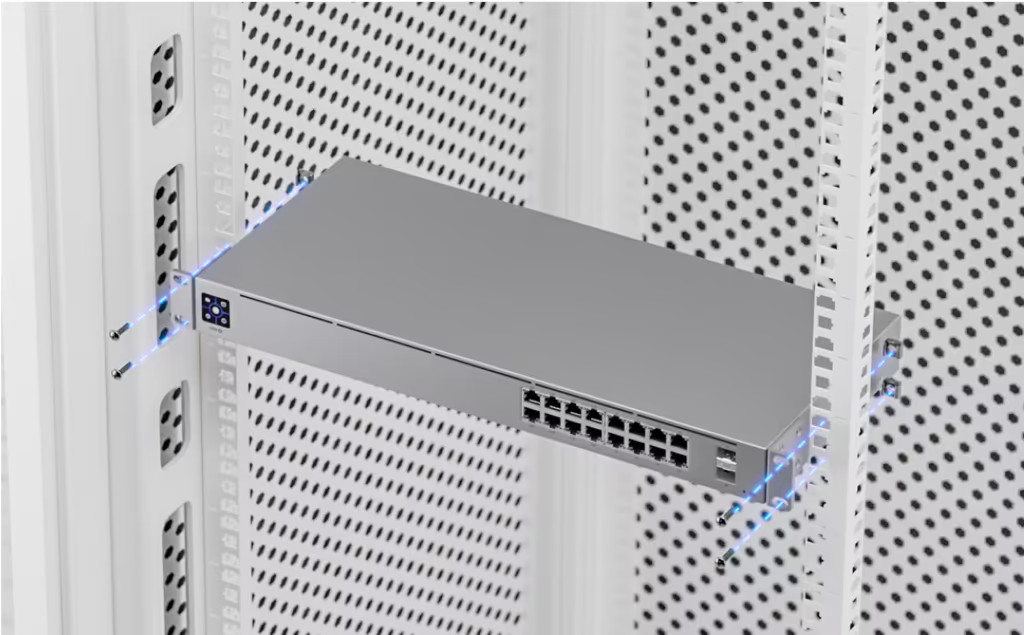

| Chassis Form Factor | Rack-Mount (1U) |
| Switching Capacity | 36 Gbps |
| Aggregate Non-Blocking Throughput | 18 Gbps |
| Speed Forwarding | 27 Mpps |
| Supported VLANs | 1000 |
| MAC Address Table Size | 8000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists (ACLs) | IPv4: 128 MAC: 128 |
| L2 Networking and Security Features | Port Aggregation LACP STP & RSTP Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs and Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast MAC Blocking IP-Based ACLs and Network Isolation MAC Port Restrictions Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override |
| PoE Ports | 8 PoE+ Ports |
| Maximum PoE Power per Port (PSE) | PoE: 15.4W PoE+: 32W |
| Maximum Power Consumption Power | Without PoE output: 18W With PoE output: 60W |
| Power Method | Universal Input 100–240V AC, 50/60 Hz |
| Power Input Method | AC Input |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 61.4 BTU/hr |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" Touchscreen |
| ESD Protection | Air: ±16kV, Contact: ± 12kV |
| Application Requirements | UniFi Network: version 7.2.94 and newer |
Other |
|

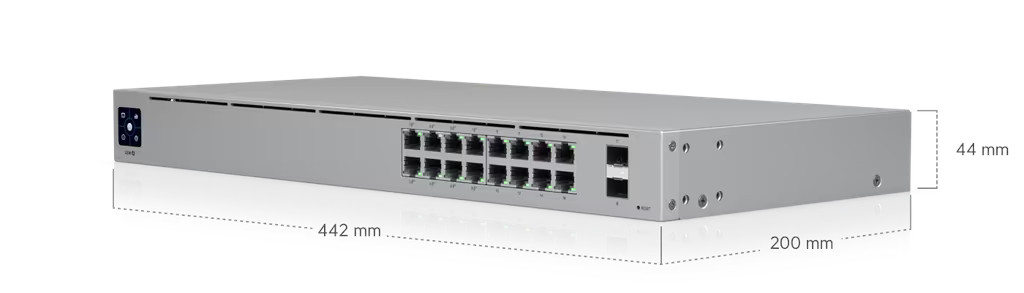

| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight | Without mounting brackets: 2.8 kg (6.2 lb) With mounting brackets: 2.9 kg (6.4 lb) |
| Housing material | Steel SGCC |
| Mounting Bracket Material | Steel SGCC |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 00593-21-08356 |
| Manufacturer SKU | USW-16-POE |
|---|---|
| EAN | 817882028547 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 2 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
