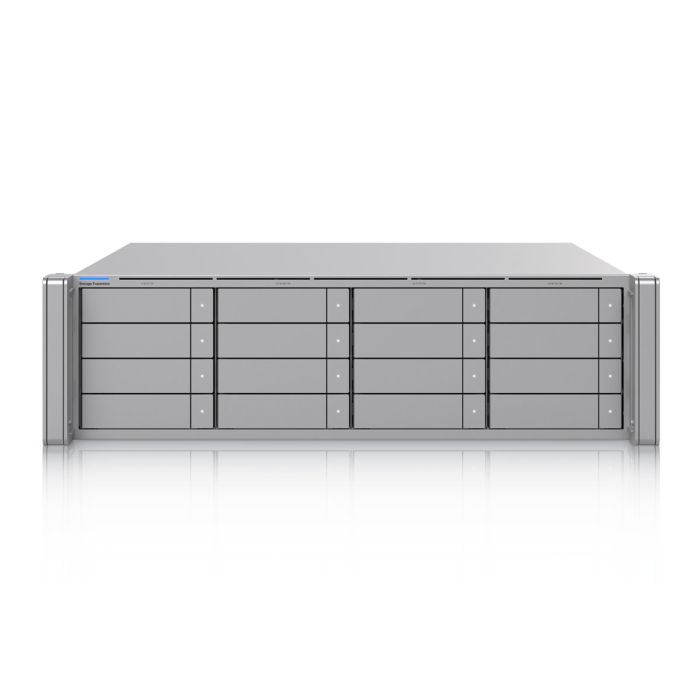

Ubiquiti Enterprise Storage Expansion (UACC-ESE-16)
| Manufacturer SKU | UACC-ESE-16 |
|---|---|
| Manufacturer | Ubiquiti |
Ubiquiti Enterprise Storage Expansion is an additional disk module equipped with 16 additional 2.5"/3.5" slots (HDD/SSD). The device is used to expand the memory of ENAS servers and ENVR-Core recorders using an SFF-8644 (24G) port.
Accessories and add-ons:
Ubiquiti Enterprise Storage Expansion - 16x 2.5" or 3.5" Expansion Module (HDD/SSD)
Ubiquiti Enterprise Storage Expansion (UACC-ESE-16) is a dedicated 3U rackmount expansion unit designed to expand storage capacity in ENAS file servers and ENVR-Core. The device allows for the installation of sixteen additional hard drives in 2.5" or 3.5" format (HDD/SSD).
The entire unit is housed in a 15.5 kg SGCC steel sheet enclosure. To ensure operational continuity and security, the unit is equipped with a redundant power supply system. It is based on two independent, hot-swappable 550W power modules. 500W of this power budget is allocated to powering the installed drives, which guarantees stable system operation even when all sixteen slots are fully populated.

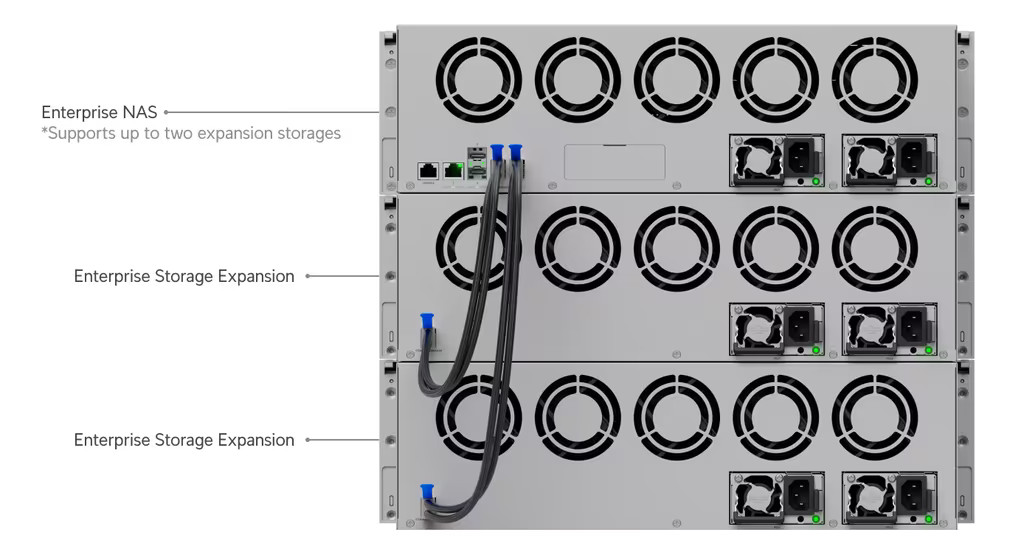

Note: This module does not operate independently - it is fully managed by the main device, to which it is connected via a fast SFF-8644 expansion port with 24G bandwidth.
List of compatible devices:
Key features:
-

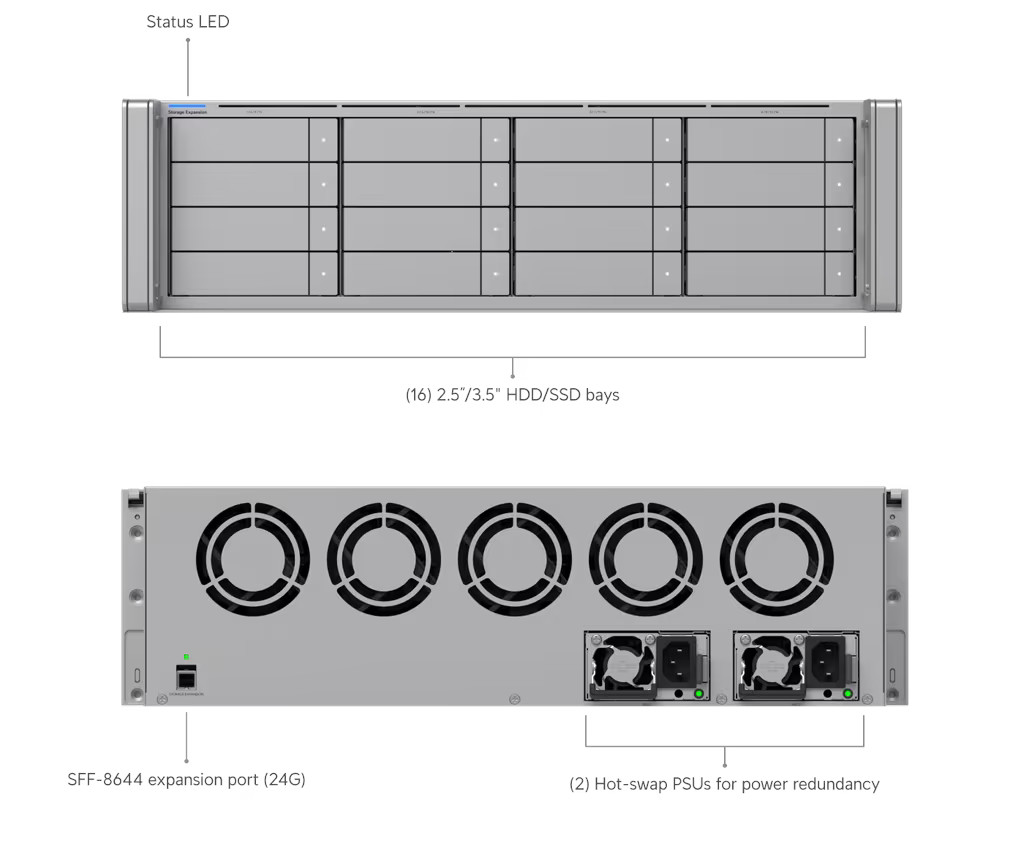

Huge capacity: Sixteen slots for 2.5" and 3.5" drives.
-
Efficient communication: Connectivity with the host device is achieved via a fast SFF-8644 (24G) expansion port.
-
Full power redundancy: Two built-in 550W AC/DC power supplies (hot-swap), guaranteeing uninterrupted operation in the event of a power source failure.
-
High power budget: 500W of output power dedicated to supporting the installed media.
-
Chassis Format: Traditional 3U rack chassis, complete with rails supporting racks with mounting depths from 600 to 1066 mm.
Disk Capacity and Interfaces |
|
| Disk Bays and Support | (16) 2.5"/3.5" Drive Slots HDD and SSD Support |
| Expansion Ports | (1) SFF-8644 (24G) |
| Management | Master Console Console) |
| LEDs | Hard Drives (HDD) System Status CRPS Expansion Port |
| NDAA Compliant | Yes |
Power |
|
| Power Method | (2) AC Power Inputs Hot-swappable power modules (Hot-swappable) |
| Power Supply | (2) 550W AC/DC Power Modules |
| Power and Power Consumption | Maximum Power Consumption: 550W Maximum Drive Budget: 500W |
| Power Redundancy | Yes |
Other |
|
| Chassis Form Factor | Rackmount Rack (3U) |

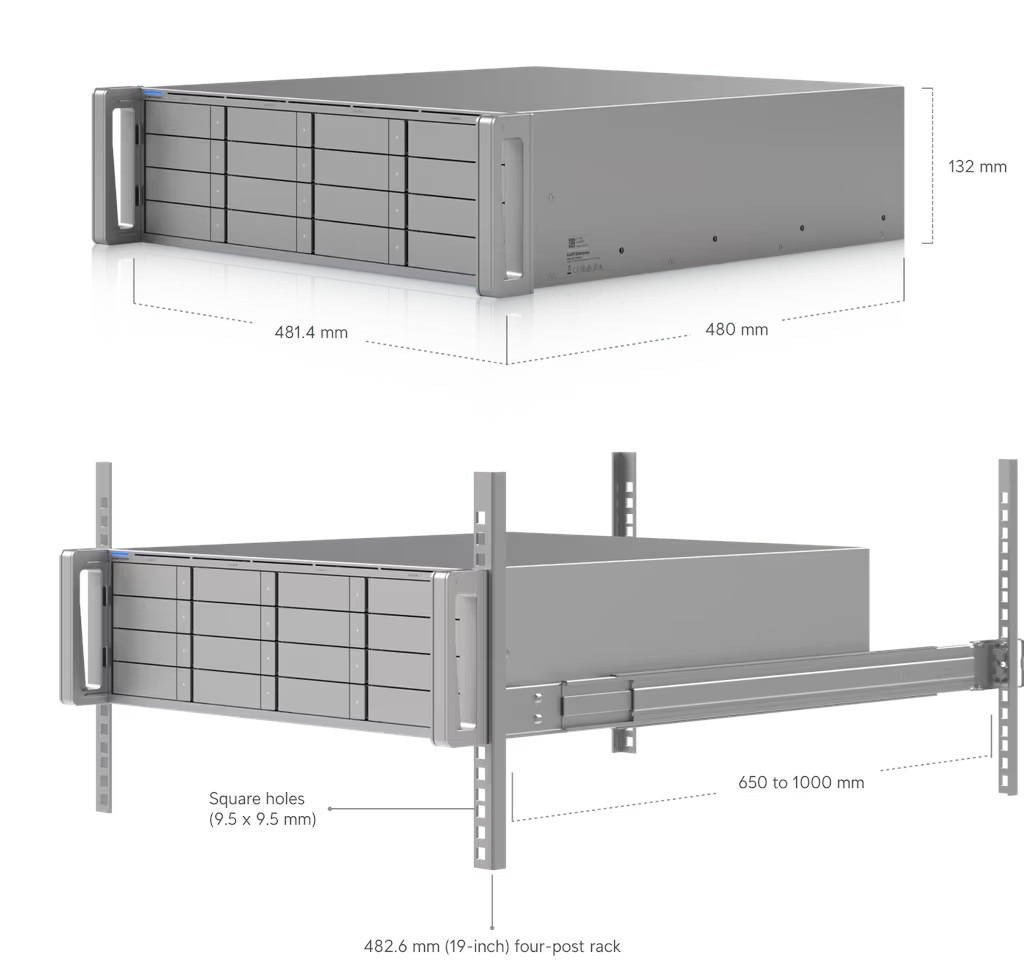

| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
| Weight | 15.5 kg (34.2 lb) |
| Materials | Casing: SGCC steel Mounting hardware: SGCC steel |
| Supported rack depth | Rails support 600 mm (23.6") four-point racks with square holes (9.5 x 9.5") mm) Post depth ranges from 600–1066 mm (23.6–42") |
| Environmental Operating Conditions | Ambient Temperature: -5 to 40° C (23 to 104° F) Ambient Humidity: 5 to 95% (non-condensing) |
| Certifications | FCC CE IC |
| Manufacturer SKU | UACC-ESE-16 |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
