Ubiquiti G2 Starter Kit (UA-G2-SK)
| Manufacturer SKU | UA-G2-SK |
|---|---|
| Manufacturer | Ubiquiti |
Ubiquiti UniFi UA-G2-SK is a starter kit for single-door access control, including a Door Hub, G2 Reader, and access cards for secure entry management.
Ubiquiti UniFi Access G2 Starter Kit (UA-G2-SK)
Product description

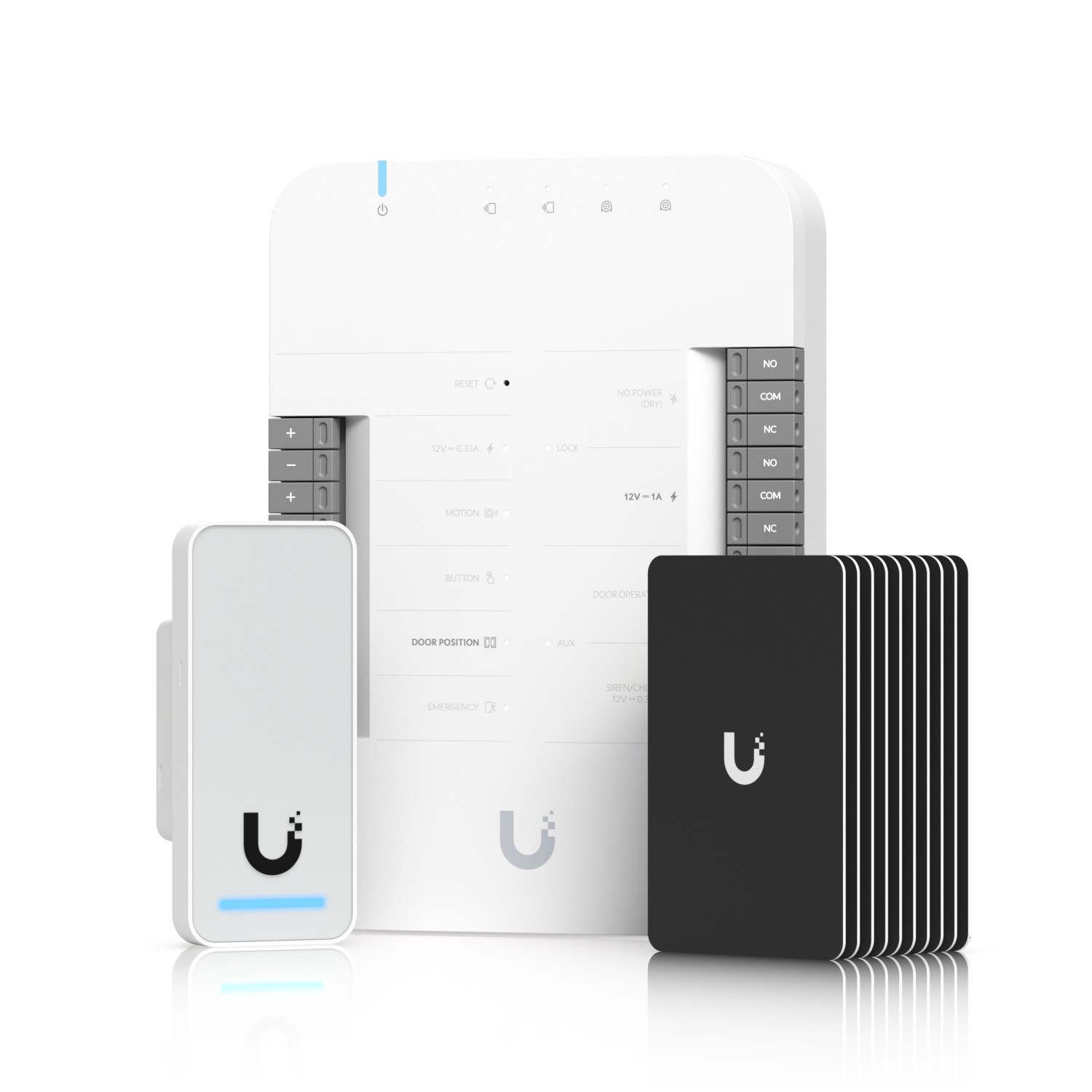

The Ubiquiti UniFi Access G2 Starter Kit (UA-G2-SK) is designed for secure single-door access control within the UniFi Access ecosystem. The kit includes a UniFi Access Door Hub, a UniFi G2 Reader, one PoE extender, and 10 access cards to manage entry via RFID or mobile credentials. The Door Hub connects to the reader and lock via PoE, supporting integration with most electric bolts, strikes, and magnetic locks. It features four 10/100/1000 Base-T ports for network connectivity and a polycarbonate enclosure for durability. The system integrates with the UniFi Access application, enabling centralized management of user permissions and access logs. The kit supports Cat 5e cabling for optimal performance and is designed for easy installation with minimal cabling requirements.
Main features
- UniFi Access Door Hub with 4 GbE ports and PoE input
- UniFi G2 Reader supporting NFC and Bluetooth for card/mobile access
- Compatible with electric bolts, strikes, and magnetic locks
- PoE-powered hub and reader for simplified installation
- UniFi Access application for centralized management
- Polycarbonate enclosure for durability
Technical specification
| SKU | UA-G2-SK |
| Dimensions | Hub: 190 x 126 x 33 mm; Reader: 95.1 x 41.3 x 26 mm |
| Weight | Hub: 457 g; Reader: 82 g |
| Enclosure | Polycarbonate |
| Networking Interfaces | Hub: (4) 10/100/1000 Base-T ports |
| Power Method | Hub: PoE (802.3at); Reader: PoE |
| PoE Interface | Hub: (1) PoE input, (2) PoE outputs (12V, 0.83A; 12V, 0.25A) |
| Max. Power Consumption | Hub: 30 W; Reader: 5 W |
| Operating Temperature | Hub: -10 to 40°C; Reader: -40 to 40°C |
| Operating Humidity | 5 - 90% non-condensing |
| Certifications | CE, FCC, IC |
Usage and compatibility
The UA-G2-SK is ideal for small offices, retail spaces, or residential settings requiring secure single-door access control. It integrates with the UniFi Access platform, allowing management via the UniFi Access application or cloud-based portal. The G2 Reader supports NFC cards (ISO/IEC 14443A/B, 15693, 18092, MIFARE Classic, DESFire, NFC Forum tags) and Bluetooth mobile credentials for user authentication. The Door Hub is compatible with most electric bolts, strikes, and magnetic locks, and supports additional UniFi Access Readers, Hubs, and Intercoms for expanded systems. The kit uses Cat 5e cabling (minimum recommended) with maximum cable lengths varying by AWG (e.g., 25 m for 24 AWG).
Summary
UniFi Access G2 Starter Kit provides a simple and secure solution for single-door access control, integrating seamlessly with UniFi Access for centralized management and easy installation.
