MikroTik LtAP LTE7 kit - LTE4 router with GPS module (LtAP-2HnD&R11e-LTE7)
The MikroTik LtAP LTE7 kit is a ruggedized router (IP54) with a Cat 7 (300 Mbps) modem and GPS. With three MiniSIM slots, an Automotive connector, and operation at temperatures up to +70°C, it provides reliable connectivity and fleet tracking for international transport.
Accessories and add-ons:
MikroTik LtAP LTE7 kit – Rugged mobile router with LTE7 modem and GPS module
MikroTik LtAP LTE7 kit (LtAP-2HnD&R11e-LTE7) is an advanced, rugged router designed for logistics, public transport, and vehicle telemetry systems. The device is equipped with a dual-core MT7621AT processor (MMIPS architecture) clocked at 880 MHz and supported by 128 MB of RAM. Wireless WAN communication is handled by an integrated LTE Cat.7 modem, offering throughputs of up to 300 Mbps (DL) and 100 Mbps (UL). This module supports a wide range of FDD and TDD bands, including the B32 band, significantly improving performance in high-density environments. Local internet distribution for end devices is provided by an integrated wireless interface operating in the Wi-Fi 4 standard (2.4 GHz, 802.11b/g/n) with 2x2 MIMO technology. The entire system is managed by the RouterOS v7 operating system with a Level 4 license, enabling the implementation of advanced routing policies, VPN tunnels, and automation scripts.
What distinguishes LtAP from standard network infrastructure is its flexible interface and power architecture, designed for operation on the move. The device is equipped with three MiniSIM slots, enabling automatic roaming and operator switching when a fleet of vehicles crosses borders. The built-in GNSS module with an SMA connector for an external GPS antenna is a key element for tracking systems. The motherboard also includes two free miniPCIe slots, which allow for the installation of an additional LTE modem or a 5 GHz radio card, ensuring system scalability depending on the project.
The device's design is IP54-rated and capable of operating in extreme temperatures ranging from -40°C to +70°C. The router supports triple energy redundancy. It can be powered via a classic DC Jack socket (12-30 V), PoE (Passive PoE on the Gigabit Ethernet port), or a dedicated Automotive connector (12-27 V), fully adapted for installation in vehicles.
Key features:
-
Processor and memory: MT7621AT (2 cores, 4 threads, 880 MHz), 128 MB RAM.
-
Operating system:RouterOS v7 (Level 4 License).
-
LTE modem: Category 7 (DL: 300 Mbps / UL: 100 Mbps).
-
Supported LTE bands (FDD/TDD): 1, 3, 5, 7, 8, 20, 28, 32 / 38, 40, 41.
-
Location: Built-in GPS/GNSS receiver (SMA antenna connector).
-
Expansion interfaces: 3x MiniSIM slot, 2x miniPCIe slot, 1x USB 2.0 (Type A).
-
Network interface: 1x RJ45 port 10/100/1000 Mbps, Wi-Fi 4 (2.4 GHz, 802.11b/g/n, 2x2 MIMO).
-
Power supply: DC Jack (12-30V), Automotive (12-27V), Passive PoE-in (12-30V). Max. consumption: 24 W.
-
Immunity and environment: Protection class IP54; Operating temperature range -40°C to +70°C.
Technical Specifications
| Architecture | MMIPS |
| Processor | MT7621AT |
| Number of Processor Cores | 2 |
| Processor Clock Speed | 880 MHz |
| Number of Threads Processor | 4 |
| RouterOS License | 4 |
| Operating System | RouterOS v7 |
| RAM Size | 128 MB |
| Storage Size | 16 MB |
| Storage Type | FLASH |
Network |
|
| 3G Category | R8 (Download: 42.2 Mbps; Upload: 5.76 Mbps) |
| 3G Bands | 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz) |
| LTE Category | 7 (Download: 300 Mbps; Upload: 100 Mbps) |
| MIMO DL | 2x2 |
| Despite UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz) |
| LTE TDD bands | 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz) |
| TAC | 35312597 |
WiFi |
|
| Max. Data Transfer Rate (2.4 GHz) | 300 Mbit/s |
| Number of Chains | 2 |
| Wireless Standards | 802.11b/g/n |
| Antenna Gain (2.4 GHz) | 2.5 dBi |
| Chip Model | AR9382 |
| Wi-Fi Generation | Wi-Fi 4 |
Ethernet |
|
| Ethernet ports 10/100/1000 | 1 |
Extension ports |
|
| Number of SIM slots | 3 modem slots (Mini SIM) |
| MiniPCI-e slots | 2 |
| Port Serial Console | RS232 |
| Number of USB Ports | 1 |
| USB Power Reset | Yes |
| USB Socket Type | USB Type A |
| Maximum USB Current (A) | 1 |
Power |
|
| Number of Inputs DC | 3 (DC Jack, PoE-IN, Car) |
| DC Jack Input Voltage | 12-30 V |
| Car Input Voltage | 12-27 V |
| Maximum Power Consumption | 24 W |
| Max. Power Consumption without Accessories | 12 W |
| PoE Input | Passive PoE |
| PoE Input Voltage | 12-30 V |
| Cooling Type | Passive |
Other |
|
| PCB Temperature Monitor | Yes |
| Monitor Voltage | Yes |
| GNSS Standards | GPS |
| IP Protection Class | 54 |
| Tested Ambient Temperature | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
| Certification | CE, EAC, ROHS |

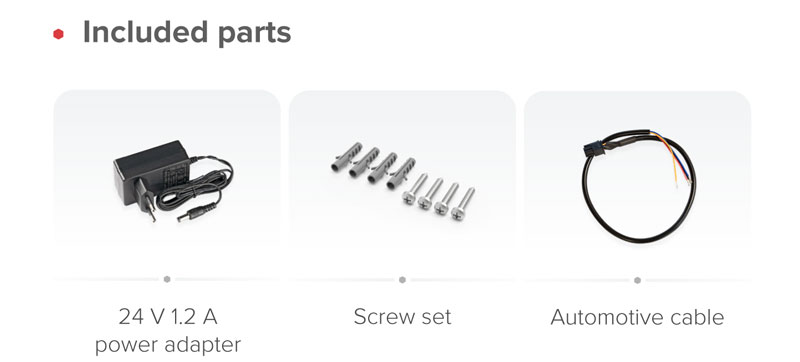

| Included parts | 24V 1.2A power adapter, K-67 fastening set, 0.35m 4pin Automotive adapter cable |
| Manufacturer SKU | LtAP-2HnD&R11e-LTE7 |
|---|---|
| Manufacturer | Mikrotik |
| PCS in collective packaging | 10 |
| GPSR contact | Mikrotikls SIA Unijas iela 2, LV-1039 Riga, Latvia support@mikrotik.com |
-
