MikroTik R11e-LTE7

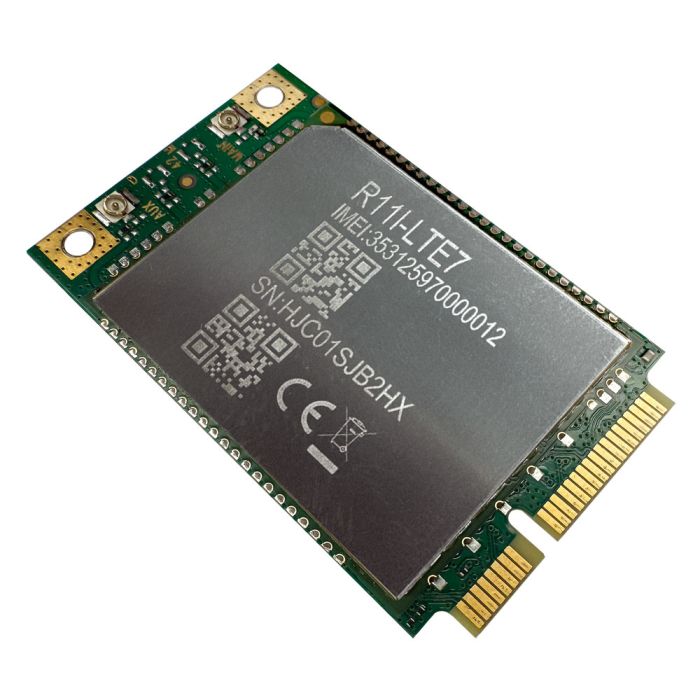

The MikroTik R11e-LTE7 is a miniPCIe LTE Category 7 module designed for RouterBOARD devices. It supports download speeds of up to 300 Mbps and upload speeds of up to 100 Mbps. Additionally, it includes support for Band 28 and Band 32. The R11e-LTE7 card features two u.FL antenna connectors for connecting external antennas. It is an ideal choice for devices such as the LtAP, RBM33G, or any other unit equipped with a miniPCIe slot.

Main features

• LTE Category 7: download up to 300 Mbps, upload up to 100 Mbps
• Carrier aggregation (2×CA)
• LTE FDD and TDD bands, 3G (HSPA+)
• miniPCIe interface
• 2× u.FL antenna connectors
• Power consumption up to 5 W

Technical specification



Model	R11e-LTE7
LTE Chipset	ASR1828
Form factor	miniPCIe
Maximum power consumption	5 W
Operating temperature	-10 °C – +55 °C

Cellular parameters

LTE	CAT 7 (DL up to 300 Mbps; UL up to 100 Mbps)
MIMO	DL 2×2, UL 1×1
Carrier aggregation	2×CA (DL)

Frequencies and bands

LTE FDD	B1/B3/B5/B7/B8/B20/B28/B32
LTE TDD	B38/B40/B41
3G (HSPA+)	Release 8 (DL 42.2 Mbps; UL 5.76 Mbps)
3G Bands	B1/B3/B5/B8

RF interfaces

Antenna connectors	2 × u.FL
TAC	35312597

Compatibility

Compatible devices	Devices with miniPCIe + USB interface (e.g., RouterBOARD: LtAP, RBM33G, etc.)
Operating system	RouterOS
