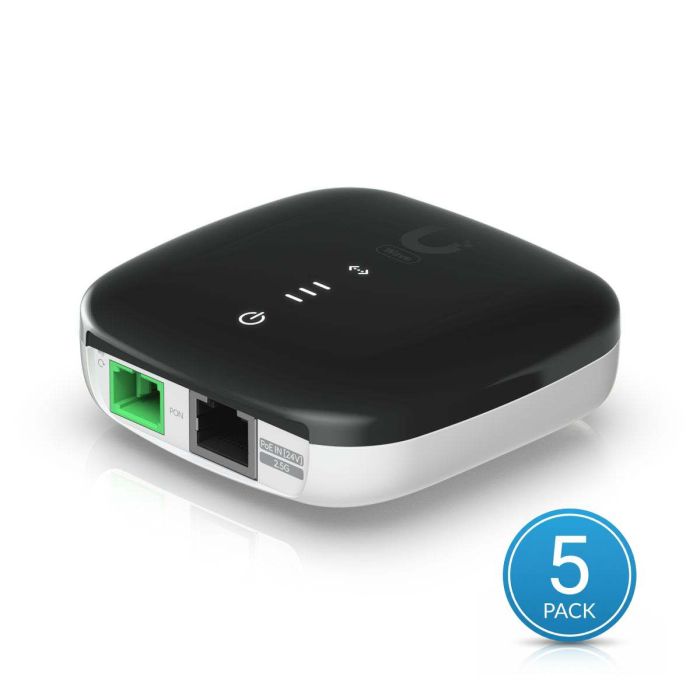

Ubiquiti WaveFiber ONU - GPON 2.5GbE LAN terminal - 5 pcs. (Wave-Fiber-ONU-5)
| Manufacturer SKU | Wave-Fiber-ONU-5 |
|---|---|
| Manufacturer | Ubiquiti |
The Ubiquiti WaveFiber ONU-5 is a 5-pack of high-performance GPON terminals (ONTs) equipped with a 2.5 GbE LAN port. Offering a range of up to 20 km, L2/L3 operating modes, and GEM hardware encryption, the devices provide a cost-effective solution for ISPs (PoE power supplies not included).
Ubiquiti WaveFiber ONU – GPON Fiber Optic Terminal with 2.5 GbE LAN Port – 5-Pack
Ubiquiti WaveFiber ONU (Wave-Fiber-ONU-5) is a high-performance client terminal (ONU/ONT) operating in the ITU-G.984 GPON standard, designed for building network infrastructure using fiber optic technology. This device is a high-throughput access point for operator services, offering asymmetric transmission speeds of 2.488 Gb/s downstream and 1.244 Gb/s upstream. Thanks to the use of an optical system operating at 1310 nm for transmitting (TX) and 1490 nm for receiving (RX), the terminal enables a stable connection over distances of up to 20 km.
Communication with local devices is achieved via an RJ45 port using the 1/2.5 GbE standard. The 2.5 Gb/s port effectively eliminates bottlenecks at the interface between the WAN interface (SC/APC connector) and the LAN. The terminal supports Layer 2 and Layer 3 operation (as a bridge or a fully functional router), supporting VLAN tagging, NAT, and firewall functions. Additionally, GEM Port Encryption hardware encryption ensures data security and confidentiality in fiber optic networks (PON).
The polycarbonate housing allows for wall or desktop mounting. The device is characterized by very low power consumption, not exceeding 5W at full load. The device is available in a multipack containing 5 units (single packages or containing 20 units are also available). Unlike the individually packaged versions, this kit does not come with power supplies. For proper operation of the terminals, you must provide your own 24V Passive PoE power supply using an external adapter.
Key features:
-
Optical standard: ITU-G.984 GPON (L2/L3 operating modes).
-
Line throughput: Downstream 2.488 Gb/s / Upstream 1.244 Gb/s.
-
Maximum range: Up to 20 km.
-
Network interfaces: 1x WAN GPON port (SC/APC connector), 1x LAN RJ45 port (1 / 2.5 GbE).
-
Power Supply: 24V Passive PoE (maximum power consumption 5W).
-
Data Security: GEM Port Hardware Encryption.
-
Quantity: Set of 5 (power adapters not included).
Compatible Devices:
Technical Specifications
| Network Interfaces | (1) SC/APC, ITU-G.984 GPON WAN port (1) 1/2.5 GbE RJ45 LAN port |
| Management Interface | In-band Ethernet, PON |
| Total Linear Throughput | Downstream: 2.488 Gbps Upstream: 1.244 Gbps |
| Normal Module Range Optical | TX (Transmit): 1.5 to 5 dBm RX (Receive): -8 to -28 dBm |
| Button | (1) Factory Reset |
Fiber |
|
| Wavelength | TX (Transmit): 1310 nm RX (Receive): 1490 nm |
| Linear Coding | Encrypted NRZ |
| Nominal multimedia interface speed | Downstream: 2488.32 Mbit/s Upstream: 1244.16 Mbit/s |
| Range | 20 km |
LEDs |
|
| PON status | (3) LEDs Solution: All Message: Starting 1x red: signal too low (< -28 dB) 1x white: signal low (≥ -28 dB) 2x white: good signal (≥ -25 dB) 3x white: strong signal (≥ -11 dB) 1x red + 2x white: signal too strong (≥ -8 dB) 3x red: not connected *LEDs flash to select between frequency and power key: no authorization |
| Ethernet | Steady white: active connection (link up) Flashing white: activity Off: no connection |
| Power | White: off (ON) |
Software |
|
| Try It | ONU/ONT Connect Ethernet 2/3 |
| Services | Web server, telnet, NAT, bridging and routing (bridging/routing), firewall functions (firewall), application forwarding functions (application forwarding) |
| Tools | Dashboard, security, alarms and logs |
| Security | GEM Port Encryption |
| Other Features | Remote reset, remote software access, remote firmware upgrade, VLAN support |
Power |
|
| Power Method | PoE, 0.3A |
| Power Supply | 24V Passive PoE 2-Pair (Pins: 4, 5+; 7, 8-) |
| Supported Withstand Current Range | 20–28V DC |
| Maximum Power Consumption | 5 W |
Other |
|
| Dimensions | 76.5 x 76.5 x 26.4 mm (3 x 3 x 1") |
| Weight | 78 g (2.8 oz) |
| Material Housing | Polycarbonate |
| Mounting | Desktop, Wall-mounted |
| Operating Temperature | -15 to 45° C (5 to 113° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| Certifications | FCC, IC, CE |
| Manufacturer SKU | Wave-Fiber-ONU-5 |
|---|---|
| Manufacturer | Ubiquiti |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
