Ubiquiti Pro XG Aggregation - Switch L3 32x 25G SFP28 (USW-Pro-XG-Aggregation)
| Manufacturer SKU | USW-Pro-XG-Aggregation |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
The Ubiquiti Pro XG Aggregation is a Layer 3 (L3) switch offering 32 25G SFP28 ports with a total throughput of 1.6 Tbps. The device features advanced hardware routing and support for Pro AV profiles.
Accessories and add-ons:
Ubiquiti Pro XG Aggregation - Layer 3 Aggregation Switch with 32 25G SFP28 Ports and 1.6 Tbps Switching Capacity
Ubiquiti Pro XG Aggregation (USW-Pro-XG-Aggregation) is a managed Layer 3 switch. The device features 32 SFP28 fiber slots supporting 25 Gbps speeds (backward compatible with 10G and 1G standards). Total switching capacity is 1.6 Tbps (800 Gbps non-blocking), and the forwarding rate reaches 1.2 billion packets per second (1.2 Bpps), allowing efficient traffic aggregation, e.g., in core backbone networks.

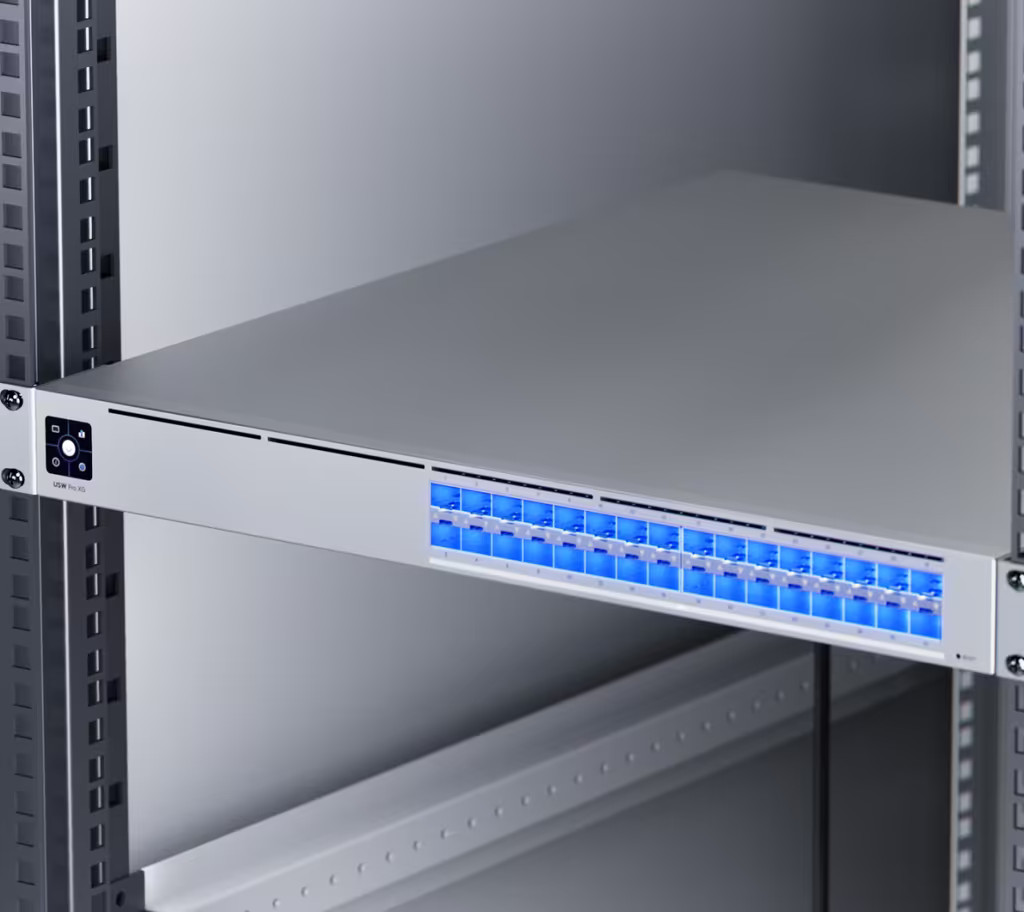

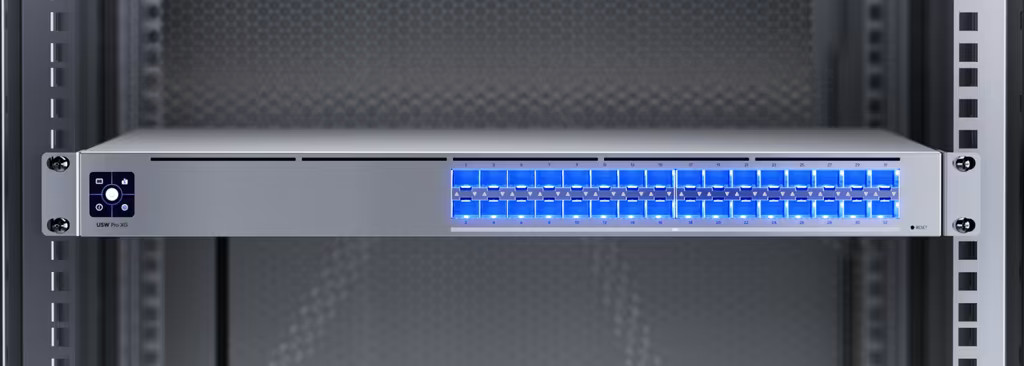

The switch supports hardware L3 routing – it features a built-in DHCP server/relay and inter-VLAN routing. The software also includes pre-configured profiles for Pro AV systems (including Dante, NDI, AES67). Power is supplied by an internal 200W power supply, and a USP RPS DC connector is located on the rear panel for connecting a backup power supply. A small 1.3" LCM touchscreen provides a quick status overview of ports and IP addresses, while Etherlighting™ technology illuminates the SFP28 ports, allowing visual verification of link speed and assigned VLAN directly on the patch cords.

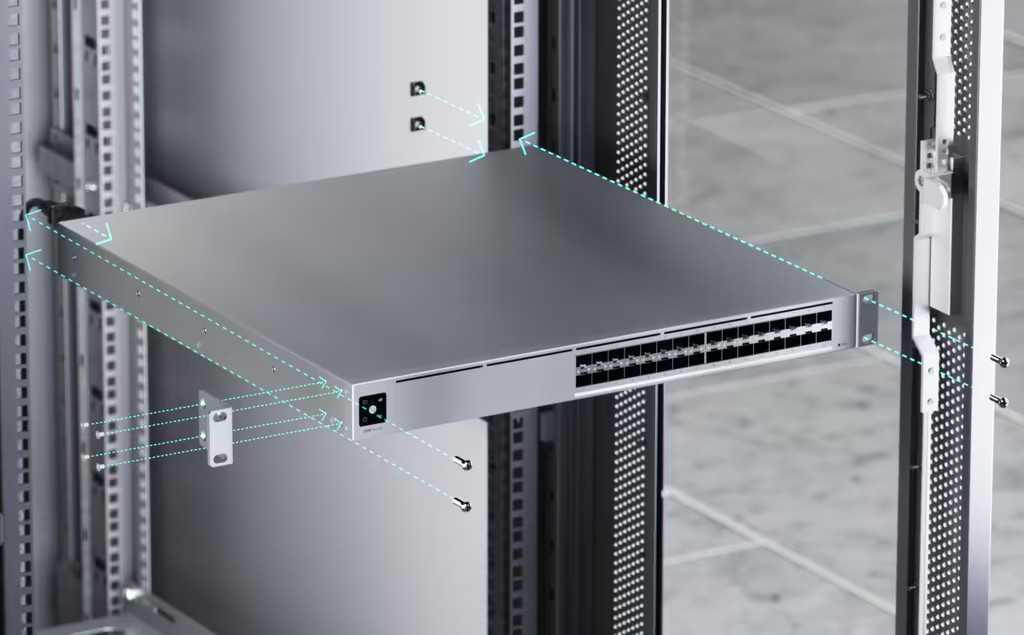

The 480 mm deep enclosure is made of SGCC galvanized steel, and the switch itself weighs 7.1 kg. The kit includes adjustable four-point mounting rails for 19" rack cabinets with a depth of 600 to 1066 mm.
Key Features
-
Fiber Interfaces: 32x 25G SFP28 slots (supporting 25G/10G/1G speeds).
-
Performance: 1.6 Tbps switching capacity (800 Gbps non-blocking, 1.2 Bpps forwarding rate).
-
Hardware Capacity: Table for 32,000 MAC addresses, 1,000 VLANs, and 512 IPv4 static routes.
-
Power and Reliability: Built-in 200W AC power supply, backup USP RPS DC power input.
Technical Specifications
| Port Layout | 25G SFP28: 32 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Enclosure Type | Rackmount (1U) |
| Etherlighting™ | Yes |
| Switching Capacity | 1.6 Tbps |
| Total Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Control Lists (ACL) | IPv4: 256 MAC: 256 |
| Layer 3 Features | DHCP Server (local networks) DHCP Relay Inter-VLAN Routing (local networks) Static Routing (local networks) |
| L2 Networking and Security Features | LACP Port Aggregation STP & RSTP Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-based ACLs and device isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Traffic Limiting MAC Address Blocking IP-based ACLs and network isolation Port Restrictions based on MAC addresses Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override |
| Max. Power Consumption | 200W |
| Power Method | (1) Universal 100–240V AC, 50/60 Hz input (1) USP RPS DC input |
| Power Input Type | AC Input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 682 BTU/hr |
| Supported Rack Depth | 482.6 mm (19") four-post racks, post depth from 600 to 1,066 mm (23.6–42") |
| LCM Display | 1.3" Touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| LEDs / Etherlighting™ | Etherlighting™ SFP28 RPS |
Other |
|
| Dimensions | 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9") |
| Weight | Without mount brackets: 7.1 kg (15.7 lbs) With mount brackets: 7.2 kg (15.9 lbs) |
| Enclosure Material | SGCC Steel |
| Mount Bracket Material | SGCC Steel |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 05977-25-08356 |
| Manufacturer SKU | USW-Pro-XG-Aggregation |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
