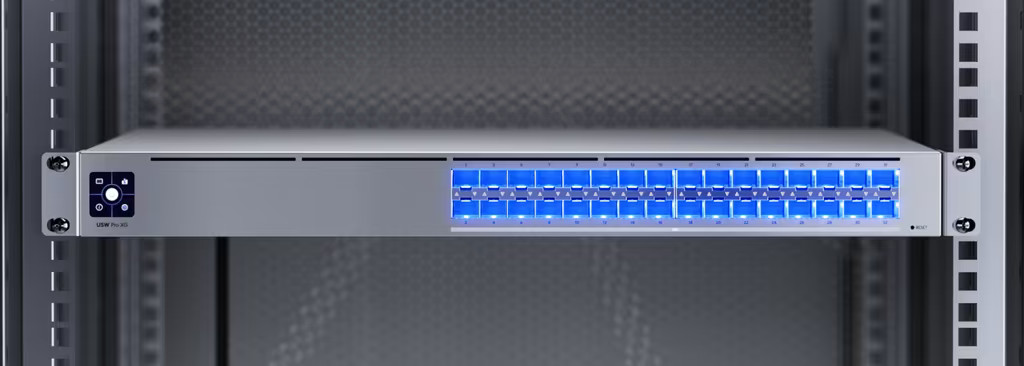

UBIQUITI UniFi Switch Pro XG Aggregation (USW-Pro-XG-Aggregation)
Product Description
The Ubiquiti UniFi Switch Pro XG Aggregation is a next-generation fiber aggregation switch designed for high-density, high-throughput environments. It features 32× 25G SFP28 ports, enabling fast and flexible interconnects across enterprise networks, server clusters, or distribution layers.
With a switching capacity of 1.6 Tbps and a forwarding rate of 1.2 billion packets per second (Bpps), this device ensures seamless high-performance communication. Built-in Layer 3 functionality includes static routing, DHCP server, and inter-VLAN routing support, essential for enterprise-grade segmentation and traffic control.
The integrated 1.3-inch LCM touchscreen provides real-time diagnostics and port activity, while redundant power input is available via UniFi SmartPower RPS (USP-RPS), increasing network uptime and resilience. All features are centrally managed through the UniFi Network Controller.
Key Features
- 32× 25G SFP28 ports
- 1.6 Tbps switching capacity
- 1.2 Bpps forwarding rate
- 1.3" LCM touchscreen for local diagnostics
- USP-RPS redundant power input
- Layer 3 support: DHCP, static routing, inter-VLAN
- Managed via UniFi Network Controller




Technical Specifications
Mechanical
Dimensions | 442.4 × 480 × 43.7 mm |
Weight | 7.0 kg |
Enclosure | SGCC steel |
Hardware
Switching capacity | 1.6 Tbps |
Forwarding rate | 1.2 Bpps |
Max. power consumption | 200 W |
Power input | AC 100–240V, 50/60 Hz; DC via USP-RPS |
LCM display | 1.3" touchscreen |
Management interface | In-band Ethernet |
Operating temperature | -5°C to +40°C |
Humidity | 10%–90% non-condensing |
Certifications | CE, FCC, IC |
Applications and Compatibility
Perfect for core routing and high-speed interconnects in enterprise environments, the USW-Pro-XG-Aggregation supports scalable network designs with redundancy and centralized control. It's ideal for large UniFi deployments and compatible with any SFP28-enabled device.
Summary
Ubiquiti USW-Pro-XG-Aggregation provides extreme performance, flexible 25G connectivity, and full Layer 3 control in a rackmount form factor. A perfect choice for modern core or distribution switches in high-density networks.
