Ubiquiti USW-Pro-XG-48-PoE – 48×10G/2.5G L3 PoE+++ Switch
High-performance 48-port Layer 3 switch with 10G/2.5G, 25G SFP28 uplinks, PoE+++ up to 90 W, LCD screen and redundant power.
Accessories and add-ons:

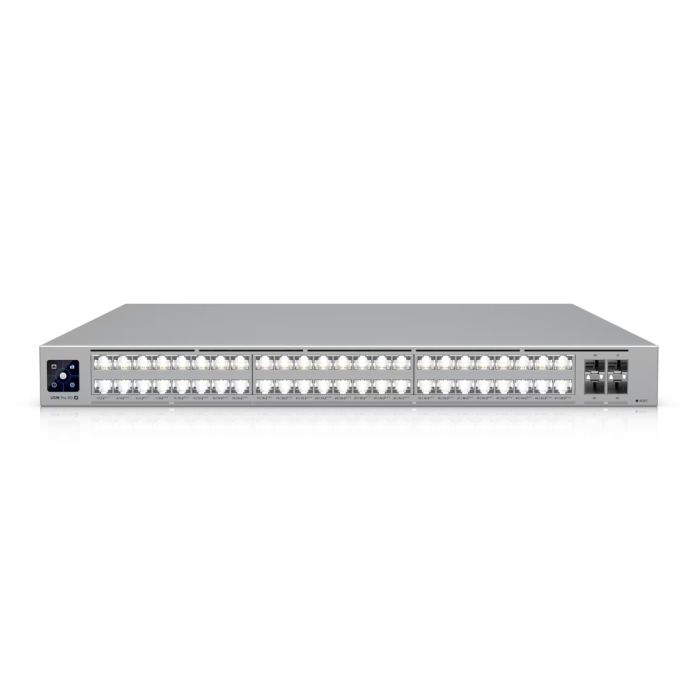

UniFi Switch Pro XG 48 PoE – 48-Port 10G/2.5G Layer 3 Switch with PoE+++ and 25G Uplinks
UniFi Switch Pro XG 48 PoE is a high-performance, fully managed Layer 3 network switch featuring 48 multigigabit Ethernet ports with PoE+++ support (up to 90 W per port). With a total switching capacity of 920 Gbps and four 25G SFP28 uplink ports, it is the ideal core or distribution switch for demanding enterprise and data center environments.
Product Description
The Switch Pro XG 48 PoE combines 10 GbE and 2.5 GbE RJ45 ports, supporting blazing fast connections for modern multigigabit devices. All 48 RJ45 ports support IEEE 802.3af/at/bt (Type 4 PoE+++) for delivering up to 90 W of power per port – enough to power high-demand devices like Wi-Fi 6/6E/7 access points, PTZ cameras, or other enterprise endpoints. The unit offers a maximum PoE budget of 1080 W (when powered via 230 V AC), allowing simultaneous power delivery to dozens of devices while reducing infrastructure complexity.
The switch is optimized for use as a distribution or aggregation switch in complex environments. It features 32× 10GBASE-T and 16× 2.5GBASE-T ports with automatic speed negotiation (from 10 Mbps to 10 Gbps), ensuring compatibility with both legacy 100 Mbps devices and modern 10G clients. Additionally, its 4 SFP28 ports provide ultra-fast 25G/10G fiber uplinks to other switches or routing infrastructure.
Operating as a Layer 3 device, it supports inter-VLAN routing, static IP routes, and embedded DHCP server and relay features. The Pro XG 48 PoE also includes a comprehensive Layer 2 feature set: link aggregation (LACP), Spanning Tree Protocol (STP/RSTP), IGMP Snooping with Querier support, 802.1X, DHCP Snooping, port isolation, DSCP-based QoS, and ACLs – enabling robust security and traffic control across the network.
Housed in a sturdy 1U steel rackmount chassis, the device integrates a 1.3″ touchscreen display for real-time status and on-device management. Its Etherlighting™ feature provides illuminated ports for fast visual port identification and VLAN mapping. The switch includes a dedicated input for Ubiquiti’s USP RPS redundant power supply to ensure business continuity in case of main power failure. Management is fully integrated into the UniFi Network platform via UniFi OS, enabling centralized configuration, monitoring, and updates across the entire UniFi infrastructure.
Key Features
- 48× 10G/2.5G with PoE+++: 32× 10G RJ45 + 16× 2.5G RJ45 ports with IEEE 802.3bt (up to 90 W/port)
- 4× 25G SFP28 ports: high-speed uplinks for fiber or inter-switch connections
- Total PoE budget of 1080 W: supports dozens of high-power devices simultaneously (at 230 V AC)
- Layer 3 switching: supports static routing, inter-VLAN routing, DHCP server/relay
- Advanced L2 features: LACP, STP/RSTP, IGMP Snooping/Querier, QoS, 802.1X, ACLs
- Etherlighting™ and LCD screen: illuminated port mapping and 1.3″ touchscreen for local status/config
- Redundant power input: USP RPS port for external failover power
- Seamless UniFi integration: managed via UniFi Network application (UniFi OS)
Technical Specifications
Mechanical

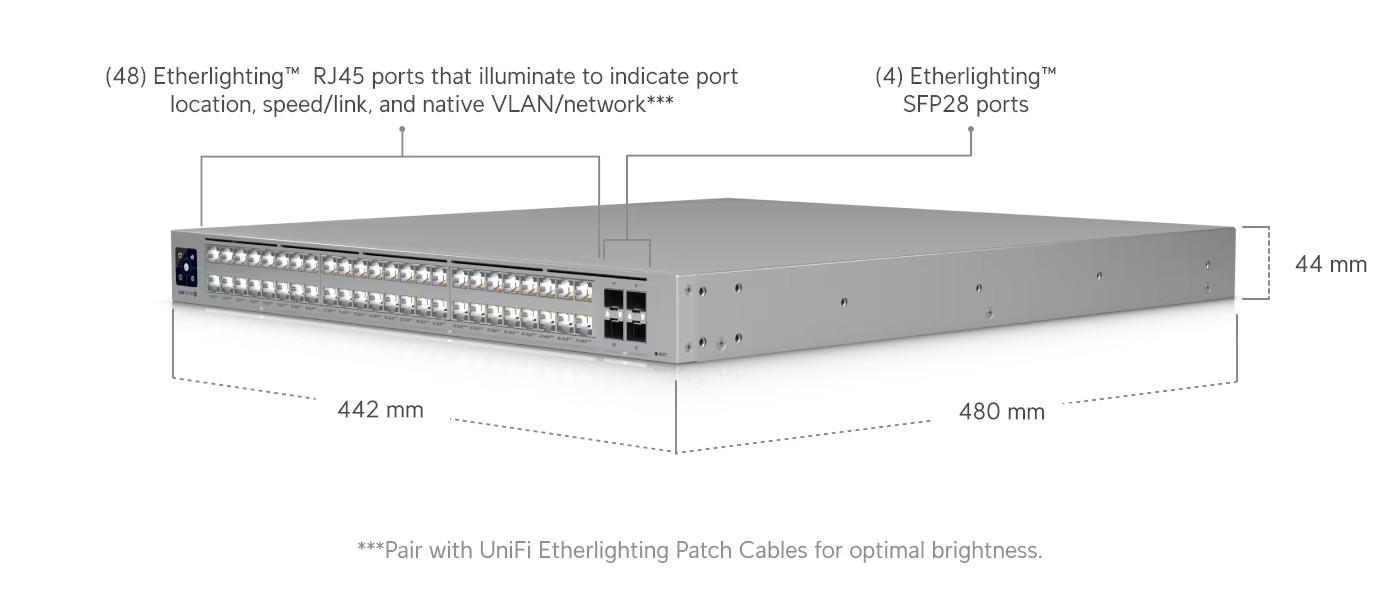

| Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7″) |
| Weight | 8.7 kg (without brackets) / 8.8 kg (with brackets) |
| Enclosure material | SGCC steel |
| Mounting | Rackmount 19″ (1U) |
Hardware

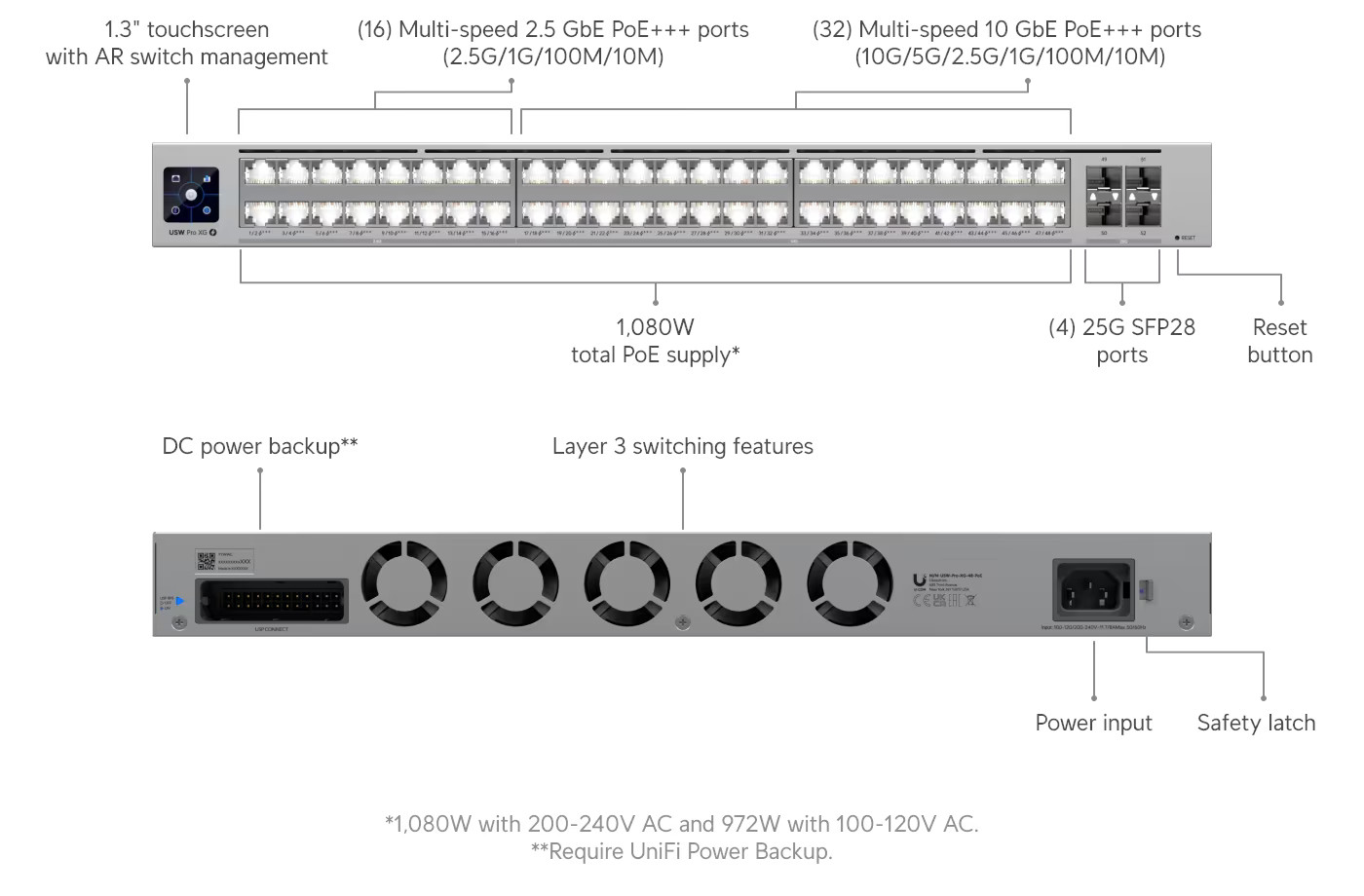

| Ethernet Ports | 32× 10G RJ45 (PoE+++), 16× 2.5G RJ45 (PoE+++), 4× 25G SFP28 |
| PoE Standards | IEEE 802.3af/at/bt (Type 4, up to 90 W/port) |
| Total PoE Budget | 1080 W @ 200–240 V AC / 972 W @ 100–120 V AC |
| Switching Capacity | 920 Gbps |
| Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| MAC Address Table | 128,000 entries |
| Max VLANs | 1000 |
| Max IPv4 Routes | 256,000 |
| Max ARP Entries | 128,000 |
Power and Networking
| Power Input | Universal 100–240 V AC, 50/60 Hz (internal 1350 W PSU) |
| Redundant Power | USP RPS port (Ubiquiti Redundant Power System) |
| Max Power Consumption | 200 W (PoE idle) / up to 1280 W with full PoE load |
| Management Interface | UniFi Network (UniFi OS) |
| Switching/Routing | Layer 2 + Layer 3 (static routing) |
Environmental
| Cooling | Active cooling (fans) |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10% – 90% non-condensing |
| ESD/EMP Protection | Air: ±30 kV; Contact: ±20 kV |
| Certifications | CE, FCC, IC |
| NDAA Compliance | Yes |
Applications and Compatibility
The UniFi Switch Pro XG 48 PoE is designed for use in enterprise networks, data centers, and campus environments as a powerful distribution or aggregation switch. Its PoE+++ capability allows direct powering of Wi-Fi 6/6E/7 APs and high-power devices without separate power lines. Integrated seamlessly into the UniFi ecosystem, it is managed via the UniFi Network application on UniFi OS consoles (e.g., Dream Machine Pro, Cloud Key). It supports Ubiquiti fiber modules (SFP+/SFP28) and redundant power via USP RPS to ensure maximum uptime and reliability for mission-critical deployments.
| Manufacturer SKU | USW-Pro-XG-48-PoE |
|---|---|
| EAN | 810177160748 |
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 1 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
-
