Ubiquiti :: SFP28-LR 25 Gbps connection Single-Mode Optical Module, up to 10 km

Ubiquiti 25G Single-Mode Optical Module UACC-OM-SFP28-LR – SFP28 optical transceiver, 25 Gb/s, 10 km reach, 1310 nm, duplex LC connector

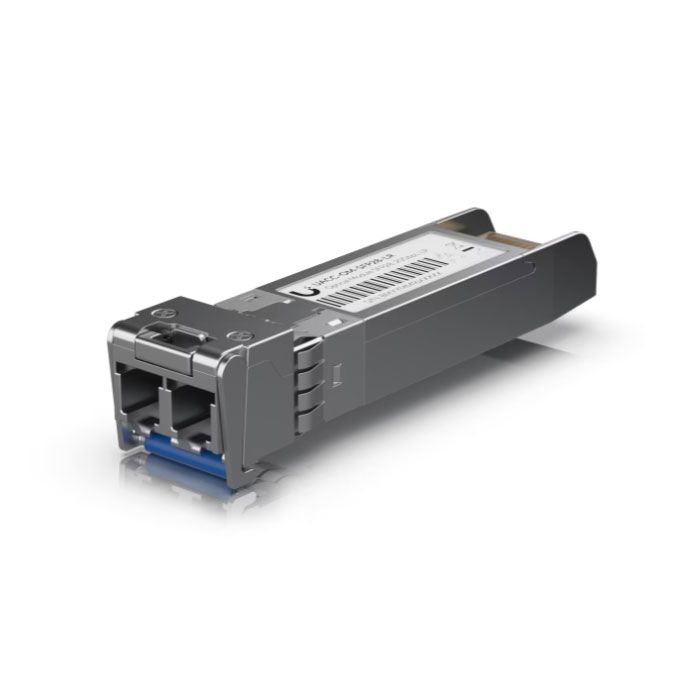

The UACC-OM-SFP28-LR is a single-mode optical transceiver in SFP28 form factor, supporting data transmission up to 25 Gb/s over single-mode fiber. It operates at a wavelength of 1310 nm and provides a link distance of up to 10 km. The module uses a duplex LC/UPC connector and complies with the 25GBASE-LR standard.

Ubiquiti 25G Single-Mode Optical Module follows the SFP28 MSA specification and can be deployed in devices with SFP28 ports, as well as in backward-compatible SFP+ and SFP ports (operating at 10 Gb/s or 1 Gb/s accordingly). The UACC-OM-SFP28-LR supports hot-swappable installation and Digital Diagnostic Monitoring (DDM), enabling real-time monitoring of key operating parameters. It has a maximum power consumption of about 1.3 W and an operating temperature range from 0 °C to 70 °C. The device meets Class 1 laser safety requirements (IEC 60825-1:2014) and is NDAA compliant.
