Ubiquiti USW-Pro-XG-24-PoE – 24-Port L3 PoE+++ Switch with 10G and 25G Uplinks
Manufacturer SKU | USW-Pro-XG-24-PoE |
---|---|
Manufacturer | Ubiquiti |
High-performance 24-port Layer 3 PoE+++ switch with 10G and 25G uplinks, 720W power budget, and Etherlighting™ status display.

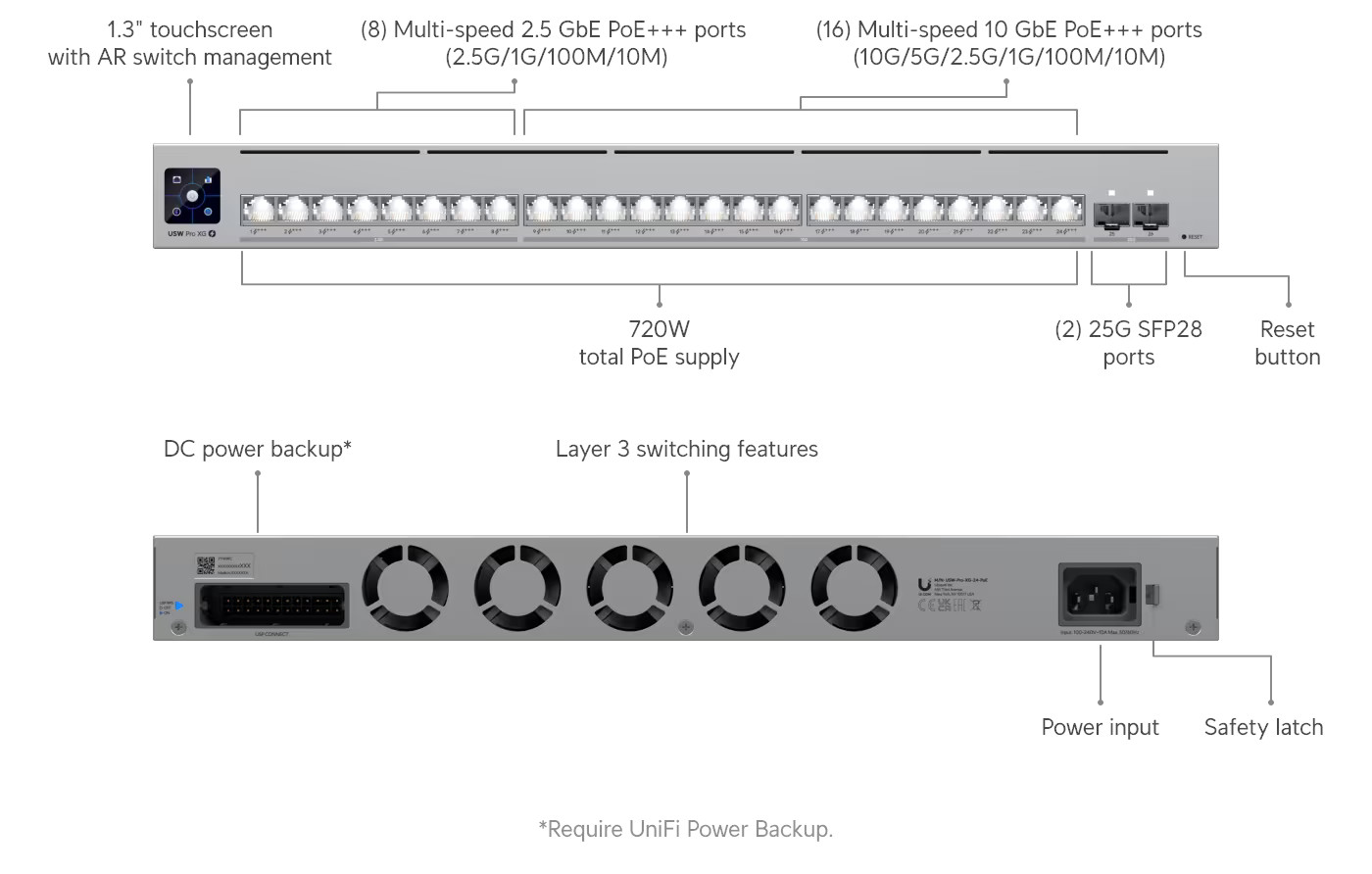

Ubiquiti USW‑Pro‑XG‑24‑PoE – professional‑grade 24‑port Layer 3 Etherlighting™ PoE+++ switch with 10 GbE and 25G uplinks
The USW‑Pro‑XG‑24‑PoE is a high-performance Layer 3 managed switch that delivers multi-gigabit speeds, full PoE+++ support, and advanced networking capabilities. Designed for enterprise networks, AV systems, and data centers, it features (16) 10 GbE PoE+++ RJ45 ports, (8) 2.5 GbE PoE+++ RJ45 ports, and (2) 25G SFP28 uplinks for seamless, high-bandwidth connectivity.
With a switching capacity of 460 Gbps and 230 Gbps of non-blocking throughput, the Pro XG 24 PoE can forward traffic at line rate across all interfaces. Its substantial 720 W PoE budget (up to 90 W per port) easily powers a full array of power-hungry devices such as Wi‑Fi 7 access points, PTZ cameras, and other PoE+++/BT equipment. An innovative Etherlighting™ system provides real-time port status illumination, and an integrated 1.3-inch LCM touchscreen offers convenient monitoring and management at a glance.
This switch also offers enterprise-class features, including Layer 3 functionality for inter-VLAN routing, static routing, and DHCP services to optimize network traffic. It supports a comprehensive suite of security and traffic management protocols (802.1X, ACLs, IGMP Snooping, storm control, etc.) to ensure a secure and efficient network environment. For enhanced reliability, the USW‑Pro‑XG‑24‑PoE includes an internal 870 W power supply and supports an optional UniFi SmartPower USP RPS connection for redundant power backup in mission-critical deployments.
Product Description
Ubiquiti USW‑Pro‑XG‑24‑PoE is a professional 24‑port, multi-gigabit Layer 3 switch with high PoE output and 10G/25G uplink capabilities. It combines sixteen 10 GbE and eight 2.5 GbE Ethernet ports (all PoE+++) with dual 25G SFP28 fiber ports, delivering unparalleled switching capacity and flexibility for modern enterprise networks. With 720 W of total PoE budget and support for 802.3bt (PoE+++) on every RJ45 port, the Pro XG 24 PoE can directly power the latest high-performance devices while aggregating large volumes of traffic at 10G speeds. Its robust Layer 3 routing features (including static routing and inter-VLAN routing) allow it to act as a core switch, consolidating and managing complex network topologies. The 1U rack-mountable steel chassis integrates Ubiquiti’s Etherlighting™ technology for at-a-glance port status and includes a built-in 1.3″ LCM touchscreen for real-time monitoring. An optional USP RPS connection provides redundant power failover, making the USW‑Pro‑XG‑24‑PoE ideal for mission-critical deployments in enterprise, hospitality, and data center environments.
Key Features
- 24 PoE+++ RJ45 Ports: includes 16 × 10 GbE and 8 × 2.5 GbE Ethernet ports, all supporting PoE+++ for multi-gigabit device connectivity.
- 25G SFP28 Uplinks: offers 2 × 25G SFP28 fiber uplink ports for ultra-fast aggregation and uplink to core networks.
- 720 W PoE Power Budget: provides up to 720 W total PoE output to accommodate numerous high-power devices (up to 90 W each).
- High Switching Performance: 460 Gbps switching capacity and 230 Gbps non-blocking throughput ensure full line-rate traffic on all ports.
- Layer 3 Routing: supports static routing, inter-VLAN routing, and DHCP server/relay functions for advanced network segmentation and efficiency.

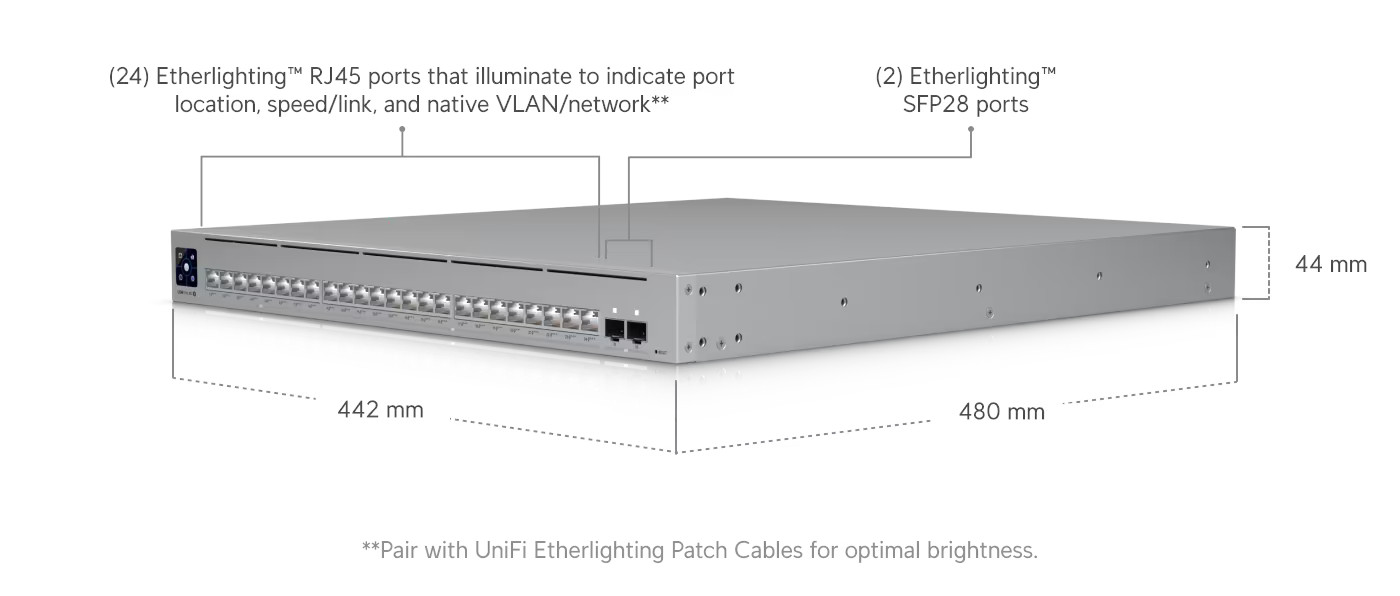

- Etherlighting™ Status LEDs: integrated port status lighting provides real-time link diagnostics and at-a-glance network monitoring.
- 1U Rack-Mountable Design: durable steel chassis with 44 mm (1U) height and support for optional USP RPS redundant power for enterprise reliability.




Technical Specifications
Mechanical
Dimensions | 442 × 480 × 44 mm |
Weight | 7.9 kg (without brackets); 8.0 kg (with brackets) |
Form Factor | Rack-mount (1U) |
Enclosure material | SGCC Steel |
Hardware
Layer 3 | Yes |
Networking Interfaces |
(16) 10 GbE RJ45 (PoE+++) (8) 2.5 GbE RJ45 (PoE+++) (2) 25G SFP28 |
Supported VLANs | 1,000 |
MAC Address Table Size | 128,000 |
Switching Capacity | 460 Gbps |
Total Non-Blocking Throughput | 230 Gbps |
Forwarding Rate | 342.24 Mpps |
LCM Display | 1.3″ touchscreen |
Operating Temperature | -5 °C to 40 °C |
Operating Humidity | 10% – 90% non-condensing |
Certifications | CE, FCC, IC |
Power
Power Method | Universal AC input (100–240 V AC, 50/60 Hz); optional USP RPS DC input |
Max. Power Consumption | 870 W |
Total PoE Availability | 720 W |
Max. PoE per Port |
PoE+ (802.3at): 30 W PoE++ (802.3bt): 60 W PoE+++ (802.3bt): 90 W |
Manufacturer SKU | USW-Pro-XG-24-PoE |
---|---|
Manufacturer | Ubiquiti |
GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
