Ubiquiti Pro HD 24 PoE - Switch L3 22x 2.5GbE 2x 10GbE PoE++ 600W (USW-Pro-HD-24-PoE)
| Manufacturer SKU | USW-Pro-HD-24-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 2 |
The Ubiquiti Pro HD 24 PoE is a 1U rackmount L3 switch equipped with 22 2.5 GbE ports, 2 10 GbE ports, and 4 10G SFP+ uplink slots. All RJ45 ports support PoE++ with a total power budget of 600W.
Accessories and add-ons:
Ubiquiti Pro HD 24 PoE - 24-port L3 switch with 22x 2.5GbE and 2x 10GbE and PoE++ power supply (max. 600W)
Ubiquiti Pro HD 24 PoE (USW-Pro-HD-24-PoE) is a Layer 3 switch adapted for installation in standard 19" rack cabinets. It offers 24 RJ45 ports: 22x 2.5 GbE ports and 2x 10 GbE ports. All connectors support the PoE++ power standard (up to 64W per port), with a total power budget of 600W. Four 10G SFP+ fiber slots are also provided for high-speed uplink connections. The total switching capacity is 230 Gbps (115 Gbps in non-blocking mode), with a forwarding rate of 171 million packets per second (171 Mpps).
The device supports L3 routing. It features a built-in DHCP server and relay, inter-VLAN routing, and support for up to 256 IPv4 static routes. Power is supplied by an internal 660W AC power supply, and a USP RPS DC port is located on the rear panel for backup power connection. The 400 mm deep enclosure is made of SGCC galvanized steel and weighs 6.2 kg.

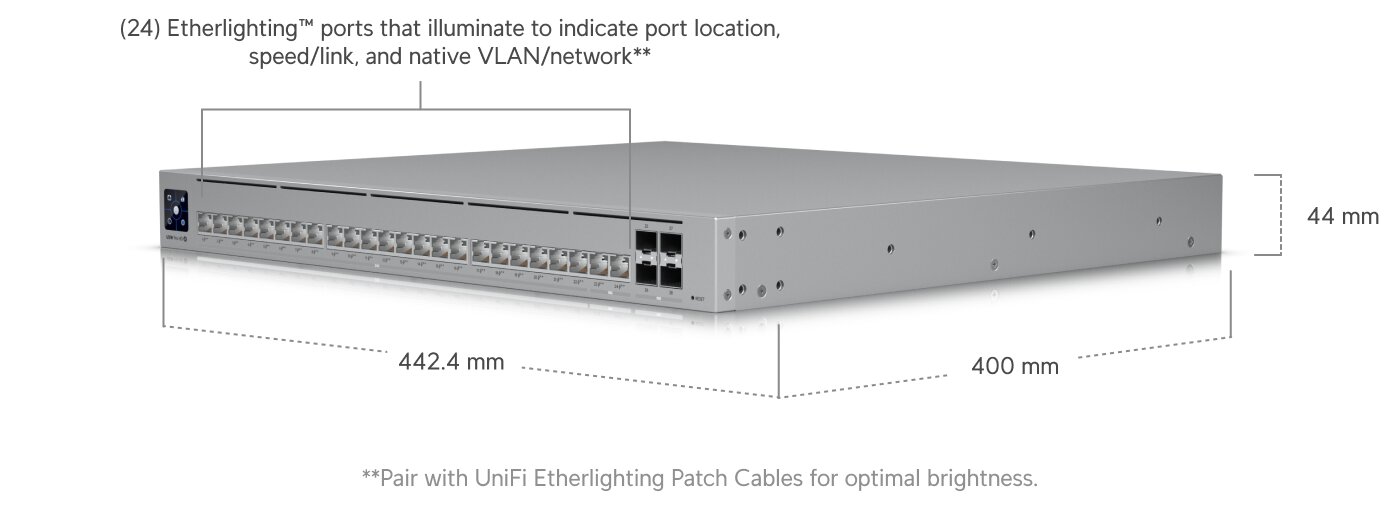

A 1.3-inch LCM touchscreen is integrated on the front of the device. This model is also equipped with the Etherlighting™ system, a technology that illuminates the RJ45 and SFP+ ports to facilitate visual verification of link speeds and assigned VLANs directly on the patch cords.
Key Features
-
RJ45 Interfaces: 22x 2.5 GbE RJ45 port and 2x 10 GbE RJ45 port.
-
Fiber Interfaces: 4x 10G SFP+ slot.
-
PoE Power Supply: All 24 RJ45 ports with PoE++ support (up to 64W per port).
-
PoE Power Budget: Total 600W.
-
Performance: Total switching capacity 230 Gbps (115 Gbps non-blocking), forwarding rate 171 Mpps.
-
Layer 3 (L3) Features: DHCP Server, Inter-VLAN routing, support for up to 256 IPv4 static routes.
-
Power and Redundancy: Built-in 660W AC power supply (switch power consumption 60W), USP RPS DC backup connector.
Technical Specifications

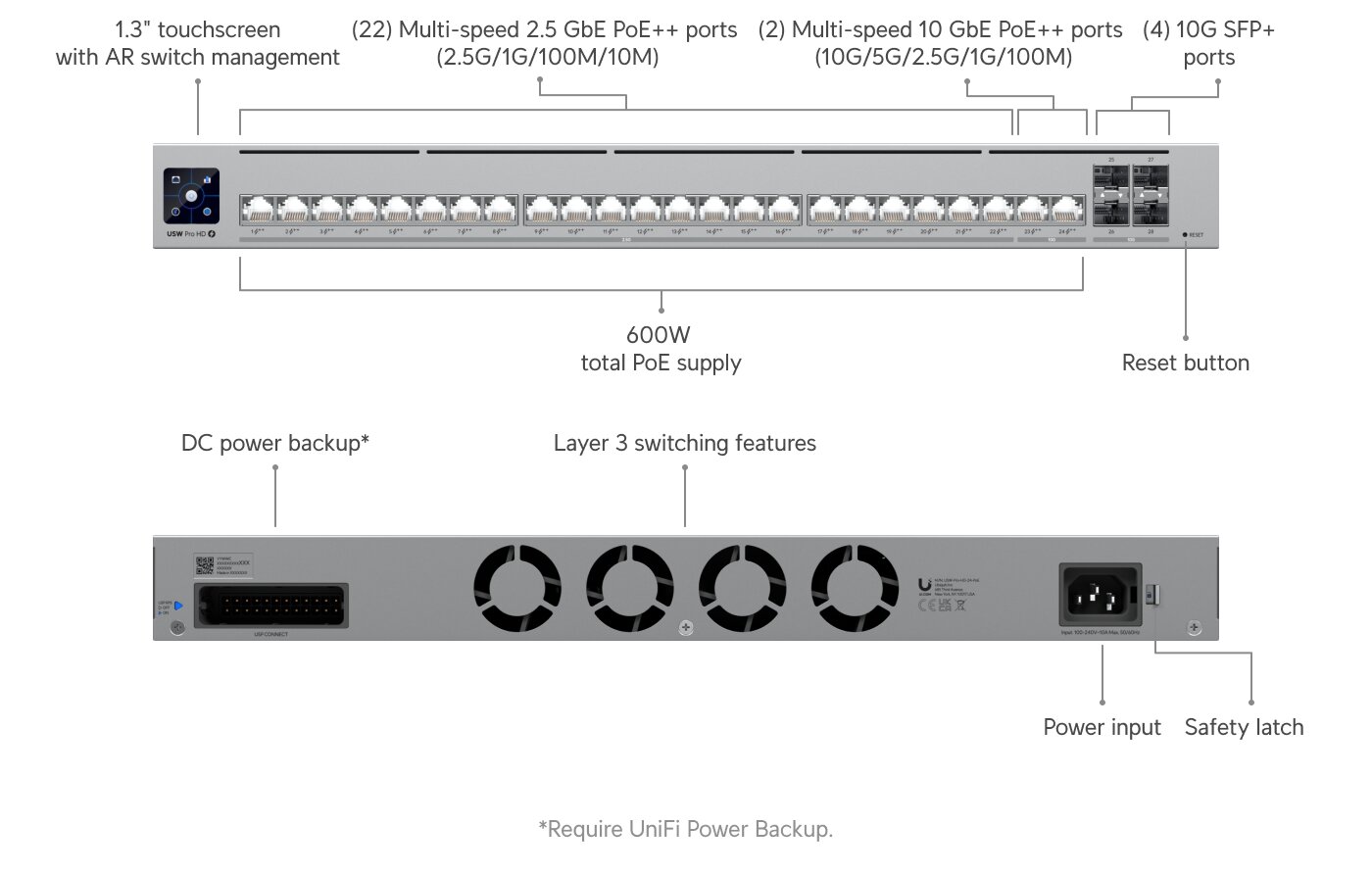

| Port Layout | 2.5 GbE RJ45: 22 (all PoE++) (2.5G/1G/100M/10M) 10 GbE RJ45: 2 (all PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+: 4 (10G/1G) |
| Maximum PoE Output Power | Up to PoE++ |
| Total PoE Budget | 600W |
| Redundancy | DC power backup |
| Layer 3 | Yes |
| Enclosure Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Switching Capacity | 230 Gbps |
| Aggregate Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| Static IPv4 Routes | 256 |
| Packet Buffer Size | 2 MB |
| Access Control Lists | IPv4: 128 MAC: 128 |
| Layer 3 Features | DHCP Server (LAN) DHCP Relay Inter-VLAN Routing (LAN) Static Routing (LAN) |
| L2 Networking and Security Features | LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs and Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Traffic Limiting MAC Address Blocking IP-Based ACLs and Network Isolation MAC-Based Port Restrictions Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override |
| PoE Ports | 24 PoE++ ports |
| Maximum PoE Power per Port (PSE) | PoE: 15.4W PoE+: 30W PoE++: 64W |
| Maximum Power Consumption | Without PoE output: 60W With PoE output: 660W |
| Power Method | (1) Universal 100–240V AC input, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC Input |
| Power Supply | Internal AC/DC, 660W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Supported Rack Depth | 600–1,200 mm (23.6–47.2") |
| LCM Display | 1.3" Touchscreen |
| Etherlighting™ | Ethernet SFP+ |
| Application Requirements | UniFi Network: version 9.0.114 or later |
Other |
|
| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC Steel |
| Mounting Bracket Material | SGCC Steel |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% (non-condensing) |
| NDAA Compliance | Yes |
| Certifications | CE, FCC, IC, Anatel: 03853-25-08356 |
| Manufacturer SKU | USW-Pro-HD-24-PoE |
|---|---|
| Manufacturer | Ubiquiti |
| PCS in collective packaging | 2 |
| GPSR contact | Ubiquiti International Holding B.V. Ekkersrijt 3102, 5692 CC Son en Breugel support@ui.com |
